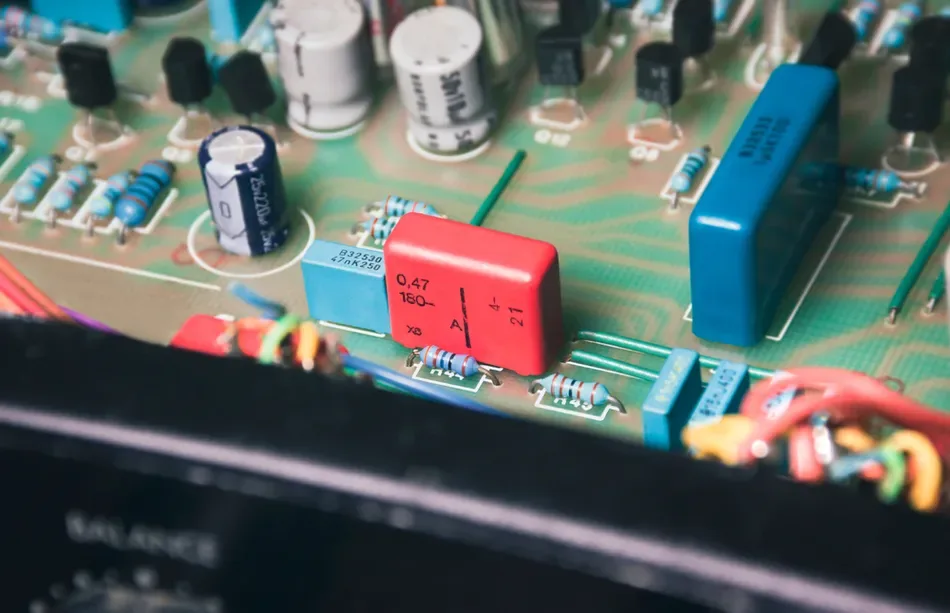

Introduction

Capacitors are small parts used in electronic devices. They help store energy and manage how electricity flows. Think of a capacitor like a tiny battery that charges and discharges quickly. In many circuits, they are used to clean up signals, reduce sudden changes in power, and give a quick boost of energy when needed.

But there’s something special about some capacitors that makes them different from other parts like resistors. This special feature is called capacitor polarity. It simply means that some capacitors have a “positive” side and a “negative” side — and they must be connected the right way to work properly. If not, they can stop working or even get damaged.

Understanding Capacitor Polarity

Capacitor polarity is all about direction—specifically, the direction in which electricity flows through a capacitor. Some capacitors have a positive side and a negative side. These are called polarized capacitors, and it’s very important to connect them the right way in a circuit.

If you mix up the positive and negative ends during installation, things can go wrong. The capacitor might not work properly, it could get damaged, or worse—it might cause the whole circuit to fail. In some cases, it can even be a safety risk.

That’s why knowing and checking the polarity before connecting a capacitor is so important. It keeps the circuit running smoothly and safely.

Principles of Capacitor Polarity

A capacitor is a small but important part of many electrical devices. It has two metal plates inside it, and these plates are separated by a special material that does not let electricity pass through—this is called the dielectric.

Now, when we connect a battery or power source to the capacitor, something interesting happens. One plate starts to collect positive charges, and the other plate gathers negative charges. This happens because of something called an electric field, which is just a force created when voltage is applied.

The plate that gets the positive charge is called the anode, and the one with the negative charge is the cathode. This difference in charge between the two plates is what we call polarity.

Polarity is very important in some types of capacitors, especially the ones that are designed to work in one direction only. If we connect them the wrong way, they might not work properly—or even get damaged.

So, in short:

• A capacitor has two plates and a material in between.
• When voltage is applied, one side becomes positive, the other negative.
• This creates polarity, which helps the capacitor store and release energy when needed.

So, in simple words:

One side stores positive, the other side stores negative. That’s polarity. And it helps the capacitor do its job safely and correctly.

Understanding Capacitor Polarity Made Easy

Capacitors come in different types, and one important thing to know about them is polarity — that means whether they have a positive and negative side or not.

Now, this mainly depends on the material used inside the capacitor, called the dielectric.

Some capacitors, called non-polar capacitors, don’t care which way electricity flows through them. That’s because they’re made with materials like ceramic or plastic films that work the same no matter the direction of the current. You can connect them either way, and they’ll do their job just fine.

But polarized capacitors are different. These types use a special liquid or chemical inside, and they are built in a way that they must be connected the right way — positive to positive, and negative to negative. If you connect them the wrong way, they can get damaged or even burst.

So, the big difference comes down to what’s inside:

• Non-polar = works both ways
• Polarized = must follow the correct direction

And that’s the simple key to capacitor polarity!

Understanding Permittivity and Capacitors

Let’s talk about something important in electronics—but in a way that’s easy to understand.

What is Permittivity?

Permittivity (we say it as “per-mit-tiv-i-tee”) is a property of a material. It tells us how well that material can hold and focus electric fields. We use the symbol ε (epsilon) to show it.

Think of it like this: if you pour water into a sponge, some sponges can hold more water than others. In the same way, some materials can hold more electric energy than others. A material with higher permittivity can “soak up” and hold a stronger electric field, even with the same amount of voltage. This helps more electric charge gather in a smaller space, which increases the power of the capacitor.

How Do Electric Fields Work in a Capacitor?

When we charge a capacitor, it builds up energy. One side gets positive charges, and the other side gets negative charges. This difference is what we call electric potential—kind of like storing energy in a battery.

This stored energy doesn’t just sit there. It can be used later when needed in an electrical circuit. That’s why capacitors are so useful—they help store and release energy when the time is right.

Polarized vs. Non-Polar Capacitors

Now, let’s look at the two main types of capacitors:

Polarized Capacitors

These have a positive side and a negative side. You must connect them the right way. If you mix up the sides, the capacitor can get damaged or even burst. They’re used where the current flows only in one direction—like in power supplies.

Non-Polar Capacitors

These don’t have a specific positive or negative side. You can connect them any way you want. They’re used in places where the electric current changes direction, like in audio devices or signal filters.

In Short

• Permittivity shows how well a material can hold electric fields.
• A higher permittivity means more energy can be stored.
• Capacitors store energy and come in two types: polarized (direction matters) and non-polar (connect either way).





Capacitor Fundamentals: The Basics of Polarity

Let’s keep it simple. A capacitor is a small electronic part that stores electrical energy — like a tiny rechargeable battery, but much faster. It has two metal plates inside, and between those plates is a special material called a dielectric that doesn’t let electricity pass through. This setup allows the capacitor to hold and release energy when needed.

Now, let’s talk about polarity.
Polarity means that a capacitor has a positive side (+) and a negative side (-). Just like how a battery must be placed in the correct direction to work, some capacitors also need to be connected the right way. This is important because if a capacitor is connected the wrong way, it might not work properly — or worse, it could get damaged.

Capacitors come in two types when it comes to polarity:

Polarized Capacitors

These have a clear positive and negative side. You must connect them in the right direction. Common examples include electrolytic capacitors. They are usually used when a large amount of energy needs to be stored.

Polarized capacitors, like electrolytic and tantalum ones, have a special thin layer inside called an oxide layer. This layer works like a barrier to store electric charge. Because of this, these capacitors can hold a lot of charge even though they are small. But there’s a catch: they must be connected the right way in a circuit. If you put them in backwards, the thin layer can get damaged, and the capacitor might stop working or even cause problems in your device.

Non-Polarized Capacitors

These don’t have a specific direction. You can connect them either way, and they’ll work just fine. These are used in circuits where direction doesn’t matter, like in audio systems.

Non-polarized capacitors, like ceramic, plastic film, or mica types, don’t have this thin oxide layer. Instead, their insulating material is spread evenly between their plates. This means they can work no matter how you connect them—there’s no “right” or “wrong” way. They handle electric charge smoothly in both directions without any trouble.

In short:

• If your capacitor has polarity, be careful how you connect it.
• If it doesn’t have polarity, you’re free to connect it in any direction.
• Always check the labels or markings before placing a capacitor in a circuit.




Polarized Capacitors

• Polarity Matters: These capacitors have a positive (+) and a negative (−) side. You must connect them the right way, or they won’t work properly.
• Material Used: Inside, they have something called electrolyte. This makes them act in a special way — they only work in one direction.
• Size vs. Power: They can hold a lot of energy even if they’re small. That’s why they’re great for big jobs.
• Used For: You’ll find them in things like power supplies, where they help smooth out and filter the electricity.
• Examples: Tantalum capacitors and aluminum electrolytic capacitors are both polarized.

Non-Polarized Capacitors

• No Direction Needed: These capacitors can be placed in any direction. They work the same no matter how you connect them.
• Material Used: They’re made with materials like ceramic or plastic films, which work in both directions.
• Size vs. Power: They usually hold less energy for their size, but that’s okay — they’re used differently.
• Used For: These are perfect for signals and sounds in circuits, especially where the current keeps changing direction (like music or radios).
• Examples: Ceramic capacitors and film capacitors like polyester or polypropylene.

Quick Comparison Table

Comparison Table

Polarized Capacitors: Electrolytic and Tantalum Capacitors

Polarized capacitors only work when connected in the right direction. This is different from film or ceramic capacitors, which work no matter how they are connected.

The need for proper connection comes from a thin layer inside called a dielectric. In electrolytic capacitors, this layer is made of oxide. Tantalum capacitors use pentoxide for their dielectric. This layer helps the capacitor hold more electric charge, making it stronger and more efficient.

If you connect the voltage the wrong way, this sensitive layer can be damaged. The capacitor may stop working or even break. So, always check the positive and negative sides before using polarized capacitors.

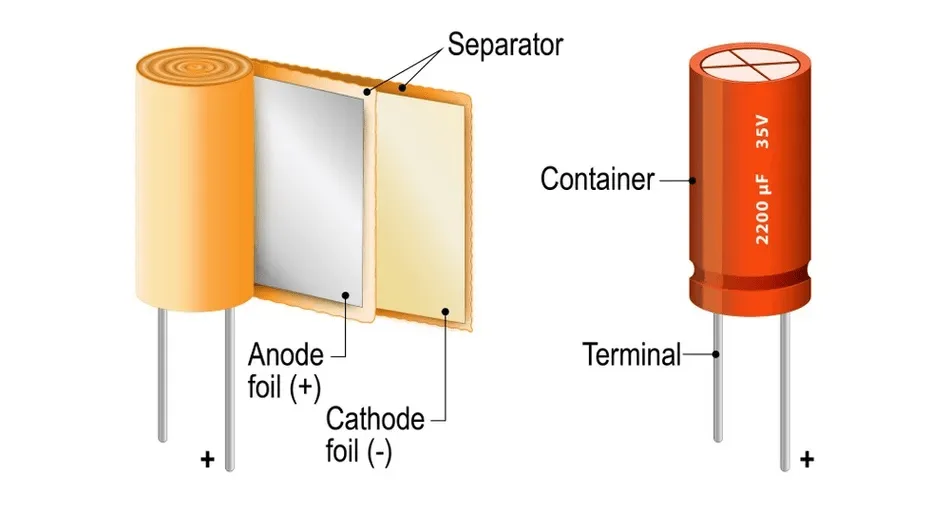

Electrolytic Capacitors

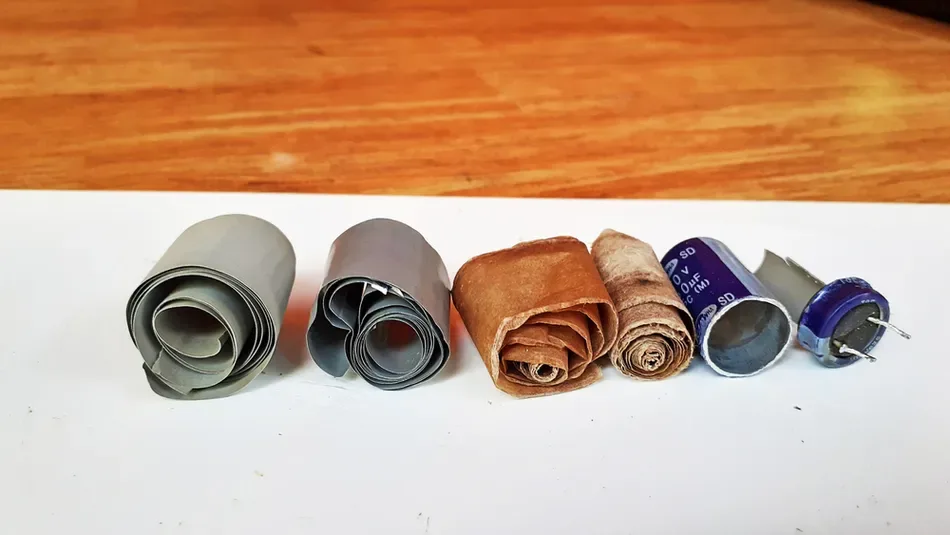

An electrolytic capacitor is a small part used in many electronic devices. It stores and releases electric energy when needed. Inside, it has a thin metal foil made of aluminum. This foil is covered with a special layer called an oxide layer, which helps the capacitor work.

The capacitor also contains a liquid called an electrolyte. This liquid helps the capacitor store more energy in a small space. Because of this, electrolytic capacitors are very good at holding a lot of charge compared to other types of capacitors.

In simple terms, you can think of an electrolytic capacitor like a tiny battery that can quickly hold and give away electric energy to help machines and gadgets work smoothly.

Pros:

Electrolytic capacitors can store a lot of electric charge even though they are small. This makes them great when you need to save space but still need strong energy storage. They are also usually cheaper than other types.

Cons:

These capacitors leak a little bit of electricity, more than some other kinds. Because of the extra resistance inside them, they don’t work as well at very high speeds. They also don’t last as long and can be more easily affected by heat.

Tantalum Capacitors

Tantalum capacitors are small electronic parts that store and release electric energy. They use a special metal called tantalum and a skinny layer of material to keep the electricity inside. This thin layer works like a strong wall that holds the electric charge safely. Because this layer is so thin, these capacitors can hold a lot of energy in a small space. This makes them better than some other types of capacitors when you need something small but powerful.

types of tantalum capacitors

Surface-mount tantalum capacitors usually have a stripe or band on one end. This stripe marks the positive terminal, so you know which side to connect.

Lead-type tantalum capacitors often have one lead (or wire) longer than the other. The longer lead is the positive side. Sometimes, you’ll also see a plus sign (+) near that lead to make it even clearer.

Why Choose Tantalum Capacitors?

Tantalum capacitors have some great advantages. They don’t leak much electricity, which means they work better and waste less power. They also handle fast signals well, so they’re perfect for things that need quick responses. Plus, they are usually smaller than other types and last a long time if kept at normal temperatures.

Things to Keep in Mind

Tantalum capacitors can cost more than regular ones. Also, if the electricity goes the wrong way or gets too strong, they can stop working suddenly. When it gets very hot, they don’t work as well and can lose their ability to hold charge.

The selection between electrolytic and tantalum capacitors depends on your specific circuit requirements. For high capacitance needs and cost-effectiveness, prioritize electrolytic capacitors. For applications demanding low leakage current, low ESR, and a smaller footprint, tantalum capacitors are the preferred choice. However, be mindful of the higher cost and potential for catastrophic failure under improper conditions.

Supercapacitors

Supercapacitors, sometimes called ultracapacitors, are special devices that store a lot more energy than regular capacitors. Think of them like tiny batteries that can charge and release energy very quickly.

What makes them special?

• They can hold a huge amount of electric charge (much more than usual capacitors).
• They work with low voltage.
• They can be charged and used many, many times without wearing out.

Where do we use them?

Supercapacitors are great for storing energy when we need it fast. For example, they help keep power ready as a backup or catch energy when a vehicle slows down, so that energy isn’t wasted.

Foundations of Capacitor Polarity

A capacitor is a tiny device that stores electric charge. How much charge it holds depends on two things: how big the capacitor is (called capacitance) and the voltage (or electric pressure) applied to it.

The basic idea can be written like this:

Charge stored (Q) = Capacitance (C) × Voltage (V)

This means if you change the voltage, the amount of charge inside changes too. But here’s the important part — the polarity of the voltage (which side is positive and which is negative) really matters. If you connect a capacitor the wrong way, it might not work properly or could even get damaged.

When electric current flows into a capacitor, it’s because the voltage across it is changing. This current is called capacitive current, and it depends on how fast the voltage changes over time.

We can say:

Current (I) = Capacitance (C) × How fast the voltage changes (dV/dt)

So, the faster the voltage changes, the bigger the current flowing into the capacitor.

In summary, to keep a polarized capacitor safe and working right, you must connect it following the correct polarity — positive to positive, and negative to negative. If you don’t, the capacitor can behave badly or get damaged.

example

Imagine you have a battery and a special kind of capacitor called a polarized capacitor—one that must be connected the right way around. The positive side of the battery is connected to the positive side of the capacitor.

At the very start, when you first connect them, a big current flows because the battery is pushing its full voltage difference through the circuit. As the capacitor starts to fill up with electric charge, the voltage across it grows, and the current slows down gradually.

This happens because the current depends on how fast the voltage is changing, which is what the formula I = C × dV/dt shows. Here, I is current, C is the capacitor’s size (capacitance), and dV/dt is how quickly the voltage changes over time.

Knowing this helps engineers design circuits better. It also reminds us that connecting the capacitor the right way is very important—if reversed, it can get damaged.

Identify Capacitor Polarity:

Capacitors are little electronic parts that store energy. But to work right, they need to be put in the right way. That means you have to know which side is positive (+) and which is negative (–). Luckily, capacitors have signs to help you figure this out.

Here are some easy ways to spot the positive and negative sides:

1. Plus (+) and Minus (–) Signs:
   Many capacitors have a plus (+) sign near the positive side. The other side might have a stripe or arrow showing it’s negative. Look closely—these signs are often printed right on the capacitor.
2. Lead Length:
   Some capacitors have two metal legs (called leads). The longer leg usually means positive, and the shorter leg means negative.
3. Colored Band:
   For small flat capacitors, you might see a colored band on one side. This band usually marks the negative side. If you’re not sure, check the instructions or the datasheet from the maker.
4. Indented Band or Slanted Edge:
   Some types of capacitors have a little groove or slant on one edge. This can tell you which side is positive.
5. Marks on the Circuit Board:
   Sometimes, the circuit board itself shows where the negative side goes, with a minus (–) sign or a shaded area.


These marks are very important because they show which way the capacitor should go. If you put it in backwards, it can break the device or cause it not to work. To find out which side is which, you can use a multimeter. It helps you see the positive and negative ends easily.

Markings and Symbols

capacitors are tiny parts in many electronic devices that store and release electricity. Some capacitors, like electrolytic ones, have a positive side and a negative side. It’s very important to connect them the right way.

If you connect a capacitor backward, bad things can happen. The capacitor might get very hot, start to leak, or even explode. This can damage the whole device and could be dangerous.

So, always check the markings on the capacitor and match them correctly when you put it in your circuit. It’s a small step that keeps your electronics safe and working well.

Methods for Determining Capacitor Polarity

Knowing the right way to connect a capacitor is important because if you put it the wrong way, it might not work or could even get damaged. Some capacitors have a positive and a negative side — these are called polarized capacitors.

Here’s how you can figure out which side is which:

1. Look Carefully at the Capacitor

Most polarized capacitors have marks on them. For example, the negative side might have a stripe or a minus sign (-) printed on it. Sometimes the longer wire is the positive side. Just checking the markings and wire lengths often helps you find the right way to connect it.

2. Use a Multimeter

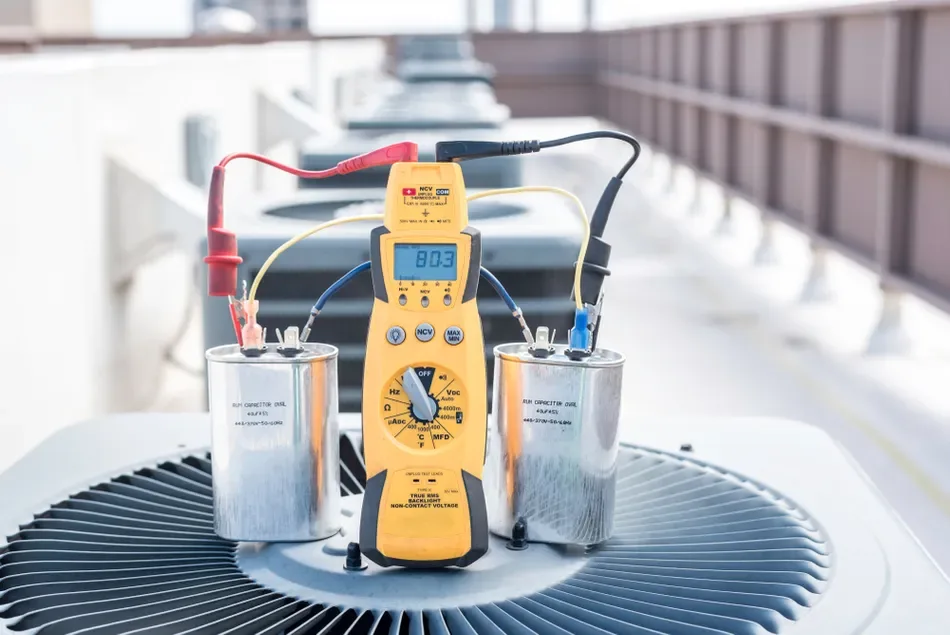

If the markings aren’t clear, you can use a multimeter (a tool that measures electrical things). Set the multimeter to measure capacitance or resistance and test the capacitor. With some experience, you can tell which side is positive by how the meter reacts.

3. Use an Oscilloscope

This is a more advanced tool. It shows how voltage changes over time. By looking at the waves on the screen, you can figure out which terminal is positive. But you usually need some knowledge to use this method.

4. Check the Paperwork or Manufacturer’s Guide

If you have the datasheet or manual for the capacitor, it will clearly say which terminal is positive and which is negative.

Here’s what that means in simple words:

Manufacturer Documentation is the easiest and most reliable way to understand any capacitor if you have the datasheets or manuals.

Visual Identification is just looking at the capacitor to spot its type, especially if it’s polarized. This is quick and easy but not always very precise.

Multimeter Testing lets you check if the capacitor is working properly. It’s a bit trickier but gives you better accuracy, especially for common types like electrolytic and tantalum capacitors.

Oscilloscope Testing is the most detailed and accurate way but needs special equipment and more skill.

What Happens When a Capacitor Breaks Down

1. Dielectric Breakdown

At the heart of a capacitor is a very thin layer called the dielectric, usually made from a special oxide. This layer helps the capacitor store energy and stops electricity from leaking out. But when too much voltage goes in the wrong direction, this layer gets pushed beyond what it can handle. It starts to break down. This is called dielectric breakdown — and it’s a big problem.

2. Heat Buildup

Once the dielectric is damaged, electricity starts to leak through the capacitor — even when it’s not supposed to. This leaking current creates a lot of heat inside. The more the current leaks, the hotter the capacitor gets.

3. Physical Damage

This heat doesn’t just stay in one place. It spreads through the inside of the capacitor, making the materials expand and change shape. If it gets bad enough, the capacitor can swell up, leak fluid, or even burst open. When that happens, other nearby parts of the circuit can get damaged too — especially tiny, delicate components.

4. Circuit Failure

A broken capacitor can cause the entire electronic circuit to stop working. It may damage other connected parts, making repairs costly and difficult. In the worst case, it could even pose a safety risk.

If you connect a capacitor the wrong way, it might not break right away. But over time, it can start to wear out from the inside. A small, steady flow of unwanted current can slowly damage it. This can cause the capacitor to stop working properly and might even mess up the whole circuit.

To avoid these problems, it’s very important to connect capacitors with the correct polarity. Doing this keeps your circuit safe, helps your components last longer, and makes sure everything runs smoothly.

Advanced Topics in Capacitor Polarity

Capacitor polarity may seem like a small thing, but it actually plays a big role in how well a capacitor works over time. Some capacitors have a positive and a negative side (these are called polarized capacitors). If you connect them the wrong way, they won’t work properly—and in some cases, they can even get damaged.

One important thing to know about polarity is how it affects something called ESR, or equivalent series resistance. This is just a fancy way of saying the tiny bit of resistance inside the capacitor that gets in the way when electricity flows. If this resistance is too high, the capacitor doesn’t work as efficiently. It can heat up more, waste energy, and wear out faster.

Also, over time, if a polarized capacitor is not used the right way, it can age badly. That means it might lose its strength, not hold charge properly, or even stop working completely.

So, understanding and respecting capacitor polarity isn’t just about making it work—it’s about making sure it keeps working well, safely, and for a long time.

Capacitors and Their Behavior Over Time

As time goes on, capacitors can start to lose their strength. This means they don’t hold energy as well as they used to. They also begin to leak small amounts of electricity, which can change how the whole circuit works — and that can lead to problems or even complete failure.

These issues get worse if the capacitor is used the wrong way — like connecting it backward (this is called incorrect polarity) or exposing it to very high temperatures. Both of these things speed up the damage.

That’s why capacitor makers list a “maximum voltage” on their datasheets. This is the highest voltage the capacitor can safely handle. But to keep the capacitor working well for a long time, it’s actually better to use it below that maximum. This is called voltage derating. It’s a smart way to protect your circuits and make sure everything runs smoothly for a longer time.

Tantalum Capacitors and Their Self-Healing Ability

Some tantalum capacitors have a special feature called “self-healing.” This means that when a tiny problem happens inside the capacitor—like a small breakdown caused by too much voltage or a sudden current surge—it can fix itself in a smart way.

Here’s how it works:
The breakdown creates a tiny hot spot. This heat burns away a small part of the material around the damaged area. By doing this, it shuts off that faulty spot so the rest of the capacitor can keep working properly. This helps stop the damage from spreading.

However, there’s one small downside. Every time this self-healing happens, the capacitor might lose a little bit of its strength, called capacitance. Over time, if this keeps happening, the capacitor might not work as well as it did at first.

But overall, this self-healing ability helps the capacitor last longer and work more safely in many situations.

Simple Ways to Manage Capacitor Polarity Issues

When working with electronic circuits, especially those using polarized capacitors, it’s important to manage a few key things to keep everything running smoothly. Here are some simple and smart ways to do that:

1. Check ESR Levels:

ESR stands for Equivalent Series Resistance. It helps tell us how healthy a capacitor is. By using special tools like ESR meters or impedance analyzers, we can measure this and keep an eye on the capacitor’s condition.

2. Control the Heat:

Capacitors don’t like too much heat. To keep them cool, use heat sinks and make sure there’s good airflow around your components. This helps avoid overheating, which can cause damage over time.

3. Design Smart Circuits:

When designing your circuit, it’s a good idea to add protection features. For example, overvoltage protection can stop damage caused by connecting things the wrong way. This keeps your capacitors safe from reverse polarity issues.

Why It Matters

Using these simple methods can help stop problems before they start. Taking care of these little details means your capacitors will last longer and work better in the long run.

Always remember: A little prevention goes a long way in keeping your electronics safe and reliable.

Best Practices for Ensuring Proper Capacitor Polarity

Making sure a capacitor is connected the right way is very important. If you get the polarity wrong, the circuit might not work properly—or worse, the capacitor could get damaged.

Here are some simple and clear best practices to follow:

Know Your Capacitor Type

Some capacitors, like electrolytic ones, have polarity. That means they have a positive (+) and a negative (–) side. Others, like ceramic capacitors, don’t. Always check what kind you’re using before connecting it.

Look for Markings

Most polarized capacitors have clear markings. The negative side is usually marked with a stripe or minus sign. The longer leg (lead) often shows the positive side. Use these hints to guide you.

Double-Check Before Soldering

Before you solder a capacitor into a circuit, take a second look. Make sure the positive side goes to the positive part of the circuit and the negative side goes to the negative. One extra second can save you a lot of trouble.

Follow the Circuit Diagram

If you’re working from a diagram, follow it carefully. The symbol for polarized capacitors clearly shows which side is positive. Don’t guess—check it twice.

Use a Multimeter (If Needed)

When in doubt, a multimeter can help you test and confirm connections. It’s a handy tool to make sure everything is in place the right way.

Never Force It

If a capacitor doesn’t seem to fit or align properly, stop. Forcing it can damage the part or the board. Take your time and make sure everything is aligned correctly.

How to Install a Capacitor the Right Way

Before You Install a Capacitor:

Take a moment to check the markings on the capacitor.
You’ll see a + (plus) and a – (minus) sign. These tell you which side is positive and which is negative.

Now, look at your circuit board. It should also have tiny marks or symbols showing where the positive and negative sides go.

Make sure to match them properly:

• Positive goes with positive
• Negative goes with negative

If you’re using a through-hole capacitor (the kind with wire legs), gently bend the legs so they fit into the holes on the board. Be careful not to bend them too hard, or you might damage the part.

How to Install the Capacitor:

1. First, look closely and find out which side is positive and which is negative on your capacitor.
2. Match them with the correct spots on the board.
3. Use a soldering iron carefully. Don’t let it get too hot for too long. Too much heat can hurt the capacitor. Just a quick touch is enough to make a good connection.

How to Choose the Right Capacitor:

• Voltage: Always choose a capacitor that can handle more voltage than your circuit will use. This keeps it safe and working longer.
• Temperature: Think about where your circuit will be used. If it’s in a hot place, pick a capacitor that can handle higher temperatures.
• Polarity: If the circuit doesn’t always have the same current direction (it switches), use a non-polarized capacitor. That way, it won’t matter which way you put it in.






FAQ
