Understanding the brake test of dc motor:

Imagine trying to find out how well a DC motor is working—how much of the electrical power it uses turns into useful mechanical work. One easy and direct way to check this in a lab is by do something called a Brake Test. Let’s break it down in a simple, friendly way.

What is a brake test of dc motor?

A Brake Test is a hands-on method used to measure the efficiency of a DC motor. It’s often called a load test, because we’re applying a load to the motor and watching how it behaves. Think of it as putting the motor through a gentle workout to see how strong and steady it is.

How Does It Work?

The setup is quite simple. Picture a drum attached to the spinning shaft of a motor. Around this drum, a strong belt is wrapped halfway. At both ends of the belt, there are spring balances—like the ones used to weigh things at a shop.

These spring balances are attached to a strong, unmoving steel frame. By adjusting the wheels connected to the belt, we can make the belt tighter or looser. When the belt tightens, it creates friction on the spinning drum—this is the load we’re applying to the motor.

Starting the brake test of dc motor

To begin, the belt is kept loose, so the motor has no load and can run freely. We turn on the motor and slowly adjust a resistor to make it run at its rated speed. Then, we tighten the belt bit by bit until the motor is drawing its rated current—this means it’s now working at full load.

At this point, we note down:

• The readings of both spring balances (let’s call them M1 and M2)
• The speed of the motor (in rpm, marked as N)
• The voltage across the motor (Vt)
• The current (I)

Calculating the Load

The force (F) that the belt is applying is simply the difference between the two spring balance readings. But to get this in Newtons (the standard unit of force), we multiply that difference by 9.81, which is the acceleration due to gravity:

F = 9.81 × (M1 – M2)

Once we have this, we can calculate the motor’s mechanical output power and compare it with the electrical input to find the efficiency.

Why It Matters

Doing a Brake Test helps us understand how well a motor performs in real life. It’s simple, effective, and doesn’t need fancy tools. It also shows the beauty of basic physics in action—belts, springs, and a spinning drum can tell us a lot about how much work a motor can do.

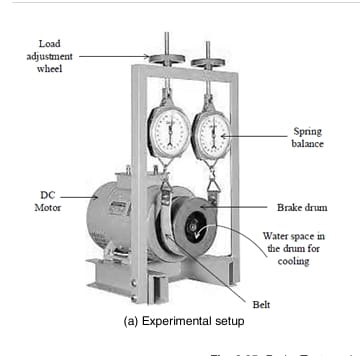

 How the Setup Looks

• A brake drum is attached to the motor’s shaft.

• A belt is wrapped halfway around the drum.

• Two spring balances are connected at the ends of the belt and fixed to a sturdy structure.

• The belt’s tightness is adjusted using load-adjustment wheels.

• A DC shunt motor is connected to an electrical circuit, and voltage/current readings are taken using a voltmeter and ammeter.


⚙️ Starting the Test

1. Start with the belt loosely wrapped around the drum—this is the no-load condition.

2. Switch on the motor and bring it to its rated speed using a variable resistor.

3. Gradually tighten the belt using the wheels until the motor draws its rated current.

4. Record these values:

   • Spring balance readings (M1 and M2 in kg)

   • Rotor speed (N in rpm)

   • Voltage across motor (Vt)

   • Input current (I)


🔢 Simple Calculations

Let’s make sense of what’s happening with simple math:

Net Force (F):
F=9.81×(M1−M2) Newtons

Torque (T):
T=F×r

 Where:

• r = radius of brake drum + half the belt thickness (in meters)


Angular Speed (ω):
ω=2πN/60 rad/s

Mechanical (Shaft) Power Output:
Pout=T×ω Watts

Electrical Input Power:
Pin=Vt×I Watt

Efficiency of the Motor:
Efficiency (%)=(Pout/Pin)×100

💧 Safety Tip: Cooling Is Important!

Because this test involves high friction, the brake drum gets very hot. That’s why there’s a cooling space in the drum. Always pour some water in it before starting the motor—this helps prevent damage and keeps everything safe.

⚠️ Special Note for DC Series Motors

If you’re testing a DC series motor, make sure the belt is tight before turning the motor on. These motors can reach dangerously high speeds under no-load conditions, which can be unsafe.

Advantages and disadvantages

Advantages of the brake test of dc motor:

• Simple and low-cost setup

• Gives direct performance data

• Great for educational purposes


disadvantage of brake test of dc motor:

• Not suitable for large motors due to high heat

• Requires manual effort and cooling

• Safety must be strictly followed

Extra Tips and Observations

• Applicability: This method works well for DC shunt, DC series, and DC compound motors.

• Flexible Testing: You can measure efficiency at any point—from no-load to full-load—making it very practical.

• Size Limitation: It’s not suitable for large motors, as the heat generated becomes hard to manage.

• Accuracy Warning: The spring balances might have inherent errors, which can slightly affect the final efficiency results.

• Slippage Fix: Over time, the rotating drum heats the leather belt and makes it too smooth, causing it to slip. A pinch of sand between the belt and drum helps by roughening the surface, reducing slippage.
