Frequency Response Relay – Working Principle, Types, Characteristics, Applications, and Advantages

1. What is a Frequency Response Relay?

A Frequency Response Relay is a protective device that operates when the power system frequency deviates from its normal value. It continuously monitors frequency and triggers corrective actions, such as tripping a circuit breaker, whenever the frequency rises or falls beyond preset limits to ensure system stability and equipment protection.

🔹 2. Working Principle of Frequency Response Relay

A Frequency Response Relay works on the principle of resonance or frequency sensitivity.
When the system frequency changes, the current through a tuned circuit (with inductance and capacitance) varies.
If the deviation exceeds a set threshold, the relay coil becomes energized or de-energized, activating the relay to protect the system.

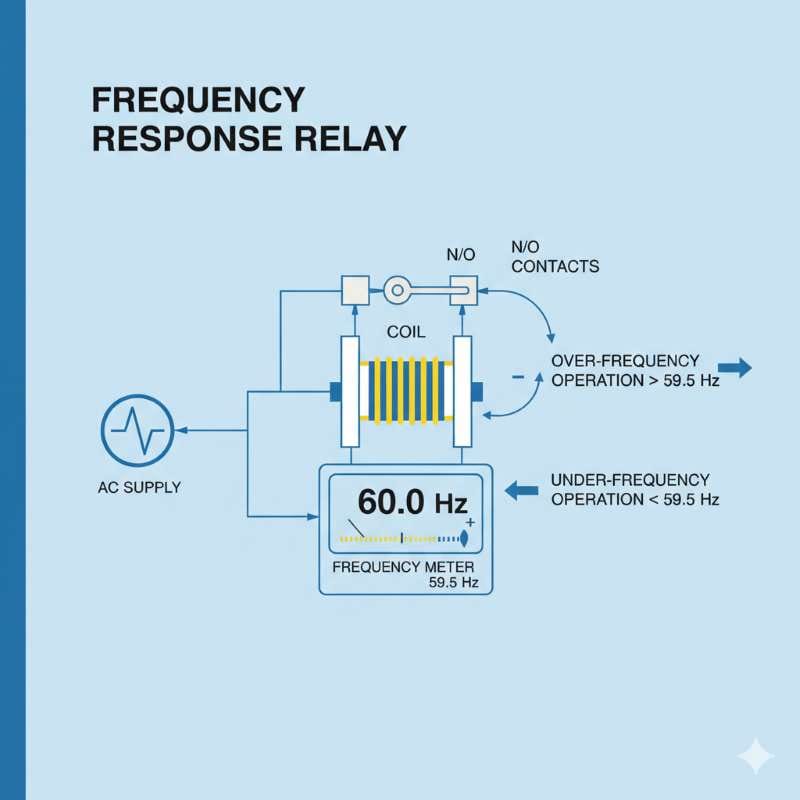

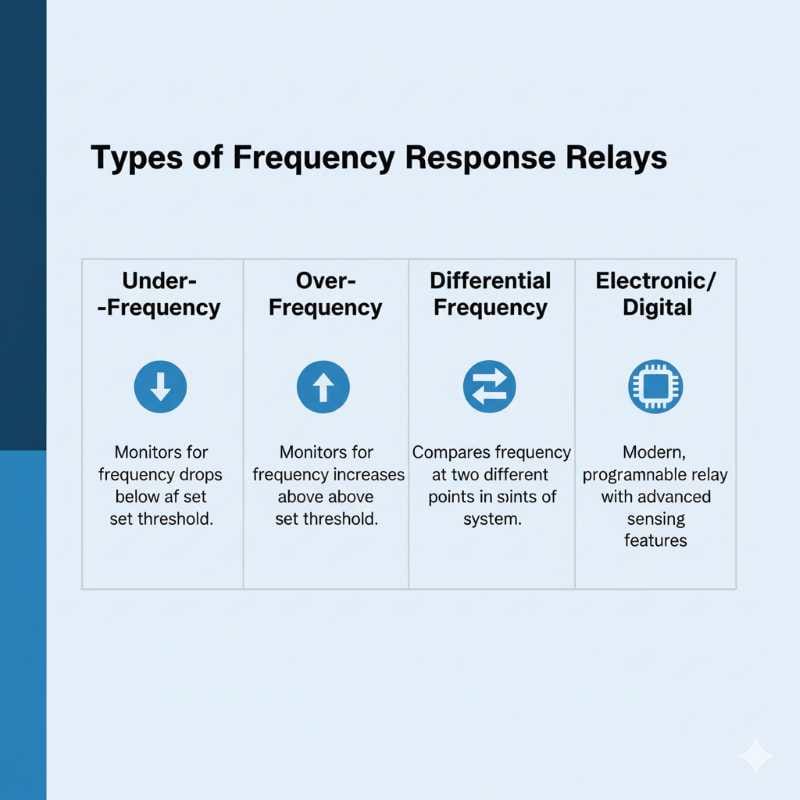

🔹 3. Types of Frequency Response Relays

There are four main types of Frequency Response Relays:

1. Under-Frequency Relay – Operates when frequency drops below the preset limit.
2. Over-Frequency Relay – Operates when frequency exceeds the set limit.
3. Differential Frequency Relay – Compares the frequency difference between two systems.
4. Electronic Frequency Relay – Uses digital or microprocessor circuits for precise frequency monitoring.

🔹 4. Frequency Response Relay Characteristics

The response curve of a Frequency Response Relay shows how its output changes with input frequency.
It remains inactive in the dead-band region, but as the frequency deviates, the relay output increases sharply.
The slope of the curve defines its sensitivity, and modern digital relays allow precise and adjustable frequency response settings.

🔹 5. Applications of Frequency Response Relay

Frequency Response Relays are used in:

• Power System Protection: To disconnect loads during frequency dips or surges.
• Generator Protection: To prevent damage from abnormal frequency.
• Grid Stability Control: To maintain balance during load fluctuations.
• Microgrid and Renewable Systems: To control inverter operation and synchronization.

🔹 6. Advantages of Frequency Response Relays

• Simple and reliable in operation
• Fast response to frequency changes
• Helps maintain power system stability
• Ideal for automatic load-shedding schemes
• Requires minimal maintenance (especially digital types)

🔹 7. Limitations of Frequency Response Relays

• Limited use where frequency variations are rare
• Requires coordination with voltage or power relays
• Analog versions are less accurate compared to digital ones

Frequency Response Relay – Definition,

A Frequency Response Relay is a special type of protective relay that operates based on the frequency of the applied voltage.
It changes its contact position — from the operated state to the normal (unoperated) state — when the system frequency falls below a preset value.

This relay is mainly used in motor control and power system protection, where variations in frequency can affect machine performance and overall system stability.

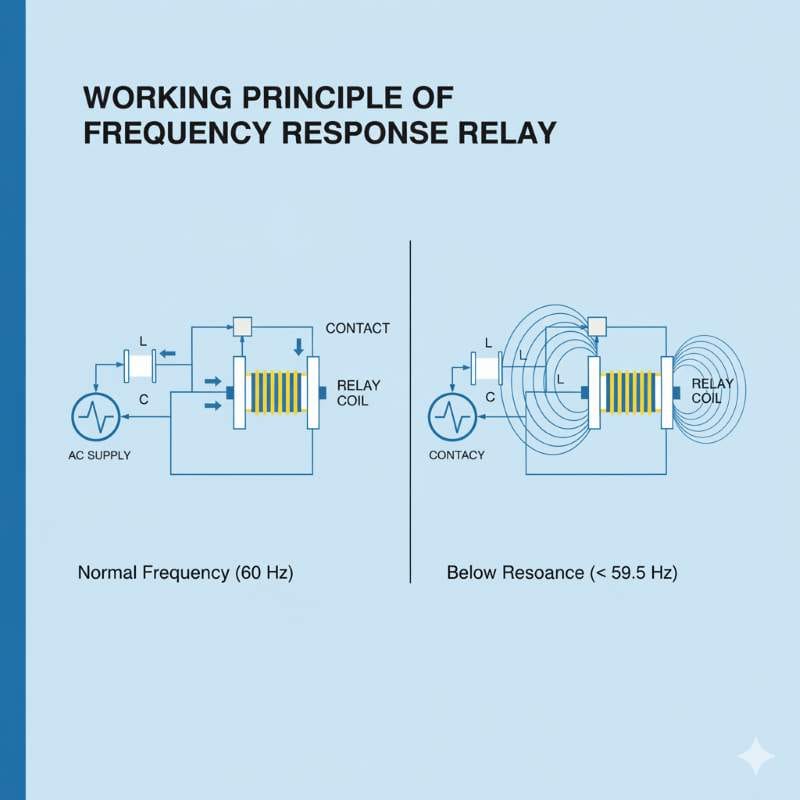

⚙️ Working Principle

The working principle of the Frequency Response Relay is based on the concept of resonance.
Inside the relay, an inductor (L) and a capacitor (C) are connected in series to form a tuned or resonant circuit.

• When the voltage frequency is normal or rated, the circuit remains in a resonant condition, allowing maximum current to flow through the relay coil.
  As a result, the coil stays energized, keeping the relay contacts in the operated position.
• When the frequency drops below the resonant frequency, the current in the coil decreases.
  Consequently, the coil de-energizes, and the relay contacts return to their normal (de-energized) position.

The bandwidth (frequency range) or sensitivity of the relay can be adjusted by changing the tapping of a potentiometer resistor.
This allows fine-tuning of the relay’s response according to system requirements.

Example:

Suppose the normal system frequency is 50 Hz.
If the frequency drops to 48.5 Hz, the Frequency Response Relay becomes activated and disconnects a portion of the system load.

This load-shedding action helps maintain the stability of the entire power system, preventing a further drop in frequency and protecting critical equipment from damage.

Types of Frequency Response Relays

Frequency Response Relays are available in several types, depending on system requirements and the expected variations in frequency.
Each type operates under specific conditions to maintain system stability and equipment protection.
The main types are explained below 👇

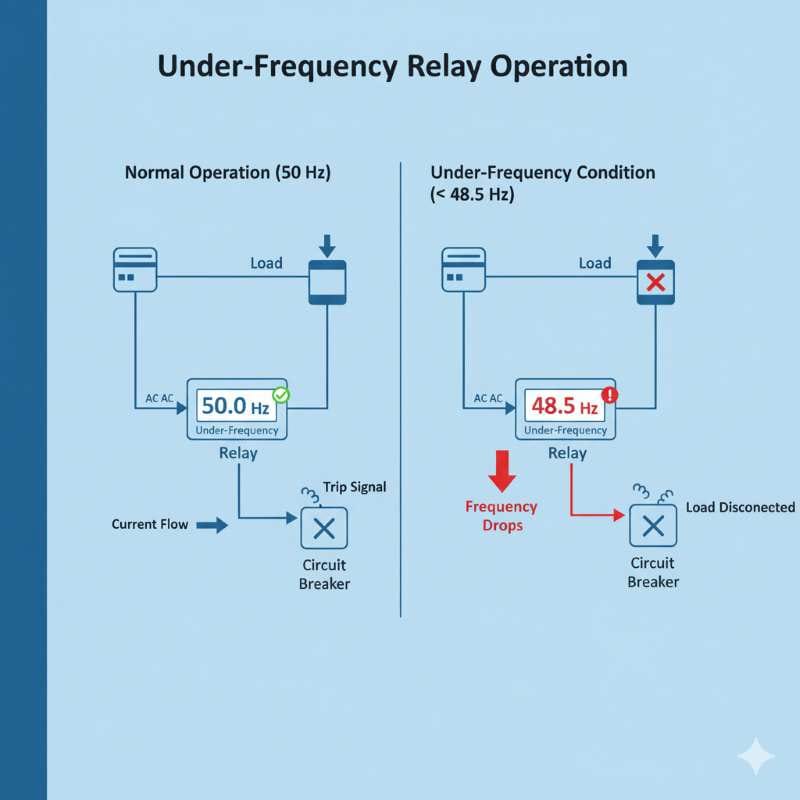

⚙️ 1. Under-Frequency Relay

This relay operates when the system frequency drops below a predetermined limit.
As frequency decreases, the relay automatically disconnects part of the load, preventing generator overload or system collapse.
It is commonly used in load-shedding schemes to maintain voltage and frequency stability.

📌 Main Applications:

• Load shedding in power grids
• Generator protection
• Preventing system overloads

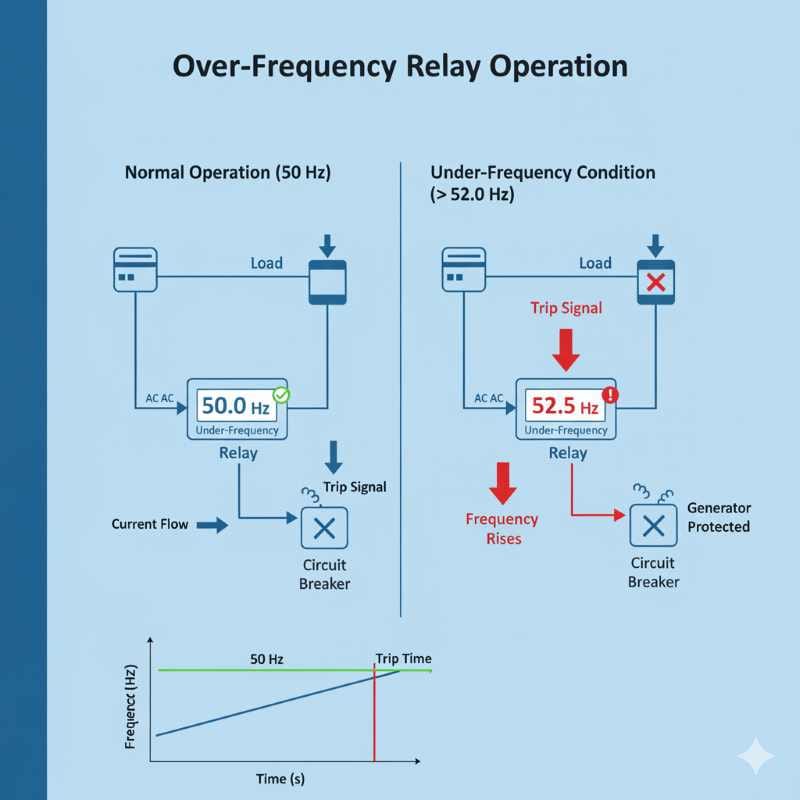

⚙️ 2. Over-Frequency Relay

This relay operates when the system frequency exceeds a defined maximum threshold.
Such a situation often occurs when the load suddenly decreases, causing the generator speed to rise.
The over-frequency relay trips the generator or initiates corrective control action to prevent mechanical damage.

📌 Main Applications:

• Protection of generators and motors
• Detecting frequency imbalance
• Automatic tripping to maintain system stability

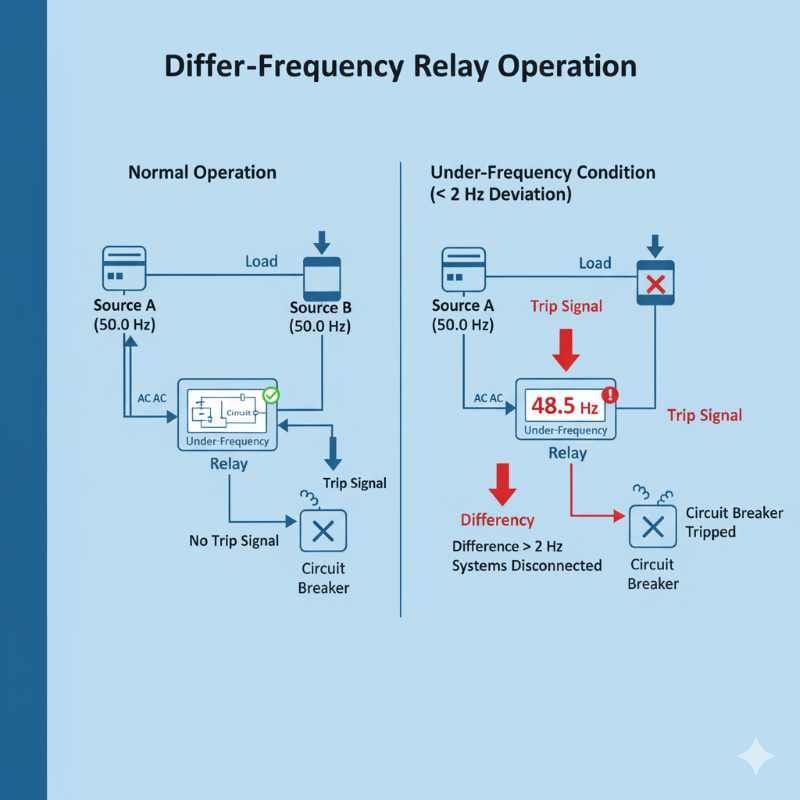

⚙️ 3. Differential Frequency Relay

This relay compares the frequencies of two different sources or systems.
If the frequency difference exceeds a specified limit, the relay operates and disconnects the affected circuit.
It is widely used in parallel operation, grid synchronization, and interconnected power networks.

📌 Main Applications:

• Measuring frequency difference between two power sources
• Synchronization of grids or generators
• Monitoring system frequency stability

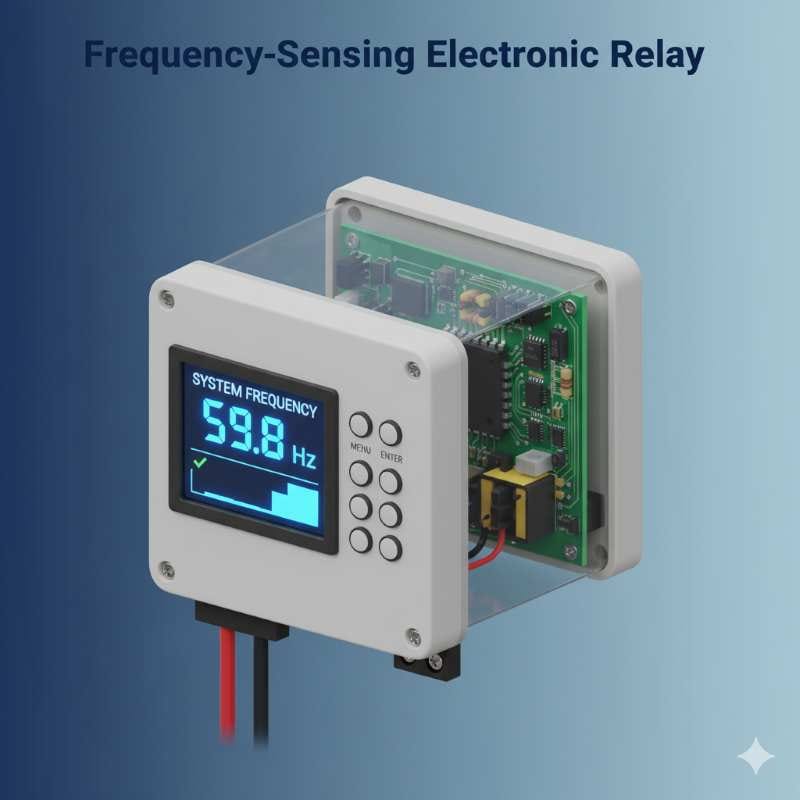

⚙️ 4. Frequency-Sensing Electronic Relay

This is a modern, microprocessor-based or digital frequency relay that monitors system frequency with high precision.
It allows programmable settings, data recording, and real-time monitoring, making it ideal for smart grids and modern substations.

📌 Main Applications:

• Digital protection in advanced power systems
• Programmable frequency limit adjustments
• Automatic and precise tripping control

Frequency Response Relay Characteristics

The characteristics of a Frequency Response Relay describe how the relay responds to variations in the input frequency.
Its performance is typically represented using a response curve, which shows how the relay output changes as the system frequency deviates from the normal value.

⚙️ 1. Response Curve of the Relay

The response curve illustrates the relationship between input frequency and relay output.
When the system frequency is within its normal range, the relay remains inactive and takes no action.
This stable region is known as the Dead-Band Region, where the relay does not respond to small frequency variations.

⚙️ 2. Response to Frequency Deviation

As soon as the frequency rises above or falls below the normal limit, the relay output increases sharply.
This indicates the active response of the relay — it detects abnormal frequency conditions and sends a trip signal to the circuit breaker or initiates appropriate protective actions.

⚙️ 3. Importance of Sensitivity

The sensitivity of the relay is determined by the slope of the response curve:

• A steeper slope means higher sensitivity, indicating that the relay can detect even small frequency deviations quickly.
• A gentle slope means lower sensitivity, so the relay operates only when larger frequency variations occur.

High sensitivity is desirable in systems requiring quick and precise frequency control, while lower sensitivity is suitable for systems that must tolerate minor fluctuations.

⚙️ 4. Features of Modern Digital Relays

Modern digital or microprocessor-based frequency response relays offer advanced features and programmability:

• Customized response settings allow engineers to fine-tune the relay’s operating curve according to system requirements.
• High accuracy, stability, and reliability are achieved through digital signal processing.
• They often include real-time monitoring, data logging, and communication interfaces for integration into SCADA or smart grid systems.

These features make digital frequency relays ideal for modern power plants, grids, and industrial automation systems, where precise and adaptive protection is essential.

Applications of Frequency Response Relay

The Frequency Response Relay (FRR) plays a vital role in maintaining power system frequency stability and protecting equipment under abnormal frequency conditions.
It is widely used in power systems, generators, grids, and microgrids, ensuring operational reliability and system balance.
Below are its major applications explained in detail 👇

⚙️ 1. Power System Protection

The primary use of a Frequency Response Relay is in power system protection.
When the system frequency suddenly drops (under-frequency) or rises (over-frequency) beyond safe limits, the relay automatically disconnects part of the load.
This helps prevent overloading, voltage imbalance, and potential grid failure.

📌 Objectives:

• Disconnect the excess load during a frequency drop
• Protect the system during frequency rise
• Prevent overloading and maintain grid security

⚙️ 2. Generator Protection

Generators and turbines are highly sensitive to frequency variations.
If the frequency deviates too much from the rated value, it can damage the generator shaft, blades, or windings.
The Frequency Response Relay detects such conditions and trips the generator or adjusts the field excitation to restore stability.

📌 Objectives:

• Protect turbines and alternators from frequency-related damage
• Enhance generator efficiency and lifespan
• Maintain generator stability under abnormal conditions

⚙️ 3. Grid Stability Control

Sudden load changes in a power grid can cause rapid frequency fluctuations.
In such cases, the Frequency Response Relay activates instantly to help stabilize the grid.
It selectively adds or removes loads as required to maintain system balance and synchronization.

📌 Objectives:

• Maintain grid frequency stability
• Balance power flow across the system
• Prevent blackouts or grid collapse

⚙️ 4. Microgrid and Renewable Energy Systems

In microgrids and renewable energy systems (like solar and wind), frequent frequency variations occur due to fluctuating generation.
The Frequency Response Relay monitors and controls the inverter operation, ensuring smooth grid synchronization and power quality.

📌 Objectives:

• Control inverter frequency and synchronization
• Maintain stable connection with the main grid
• Improve system stability and overall power quality

Advantages and Limitations of Frequency Response Relays

The Frequency Response Relay (FRR) is an essential protection device that helps maintain system stability by responding quickly to abnormal frequency variations.
Below are its major advantages and limitations explained in detail 👇

✅ Advantages of Frequency Response Relay

1. Simple and Reliable Operation

The relay has a simple construction and provides highly reliable operation.
It does not require any complex control or monitoring circuits, making it easy to install and maintain.

2. Fast Response to Abnormal Conditions

As soon as the system frequency deviates from the preset range, the relay acts instantly to trip the circuit or initiate protective actions.
This quick response helps maintain overall power system stability.

3. Maintains Power System Stability

The Frequency Response Relay ensures system balance by continuously monitoring frequency and keeping the grid frequency within safe limits.
It plays a vital role in preventing cascading failures during large disturbances.

4. Useful in Automatic Load-Shedding Schemes

The relay is an integral part of automatic load-shedding programs, where it disconnects non-critical loads during frequency drops to prevent system overload or blackout.

5. Low Maintenance Requirement

Especially in digital or microprocessor-based relays, maintenance needs are minimal.
They offer long-term stable performance with excellent accuracy and durability.

⚠️ Limitations of Frequency Response Relay

1. Limited Use in Stable Systems

In power systems where frequency variation is minimal, the relay’s operation becomes less significant, as it only functions when clear frequency deviations occur.

2. Need for Coordination with Other Relays

Proper coordination with voltage, power, or under/overcurrent relays is necessary.
Without coordination, simultaneous tripping may occur, leading to system instability.

3. Lower Accuracy in Analog Versions

Older analog frequency relays are less accurate compared to modern digital ones.
Their performance can be affected by temperature, aging, and voltage fluctuations, resulting in measurement errors or delayed responses.

Real-Life Example of Frequency Response Relay

Let’s understand the practical working of a Frequency Response Relay with a real-world scenario 👇

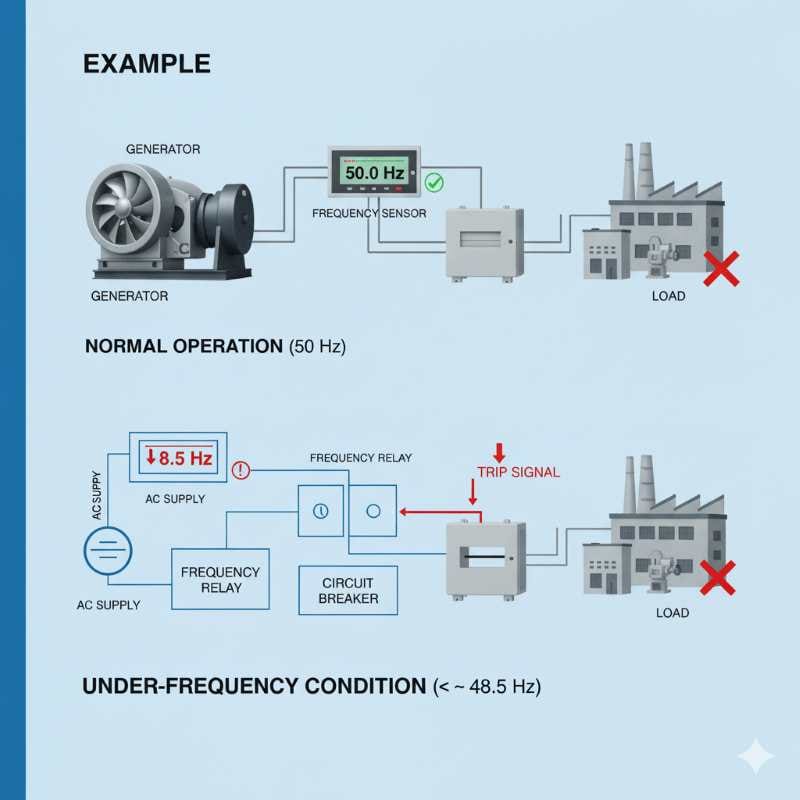

⚙️ Example Scenario

Imagine a power grid where the load suddenly increases — for instance, when several heavy industrial machines start operating simultaneously in a large industrial zone.
As the load increases, the system frequency begins to drop, because the generators experience additional mechanical and electrical stress to meet the extra power demand.

At this moment, the Under-Frequency Relay (UFR) activates automatically.
It detects the falling frequency and immediately disconnects non-essential (non-critical) loads, such as certain auxiliary or industrial equipment.

By shedding this excess load, the relay reduces the burden on the generators, allowing the system frequency to gradually return to its normal level (around 50 Hz).
The entire process occurs automatically and is completed within a few seconds, ensuring system stability.

⚙️ Result (Outcome)

⚡ Protection Against Blackouts:
Without the frequency relay, the system could become unstable under excessive load, possibly leading to a blackout or generator tripping.
The relay prevents this by quickly disconnecting non-critical loads.

⚡ Prevention of Generator Overload:
The Under-Frequency Relay protects the generator from overloading and overheating, thereby extending its lifespan and maintaining efficiency.

Conclusion

The Frequency Response Relay plays a vital role in the protection and stability of modern power systems.
By continuously monitoring the system frequency, it ensures timely corrective action against any abnormal deviations — preventing generator damage, maintaining grid stability, and ensuring a reliable power supply under all conditions.

With the increasing integration of renewable energy sources and microgrid technologies, the importance of digital frequency response relays has grown significantly.
Their high accuracy, fast response, and programmable features make them indispensable for achieving safe, stable, and efficient power system operation in the modern energy landscape.
