Introduction

Polarity Test of Transformer – Why and How?

Transformers are the backbone of power systems. They step up the voltage for long-distance transmission and step down the voltage for safe utilization.

However, when two or more transformers are connected in parallel, even a minor error can lead to serious faults, equipment damage, or fire hazards.

Hence, the polarity test is one of the most important tests performed before commissioning a transformer.

This test ensures that:

• The transformer terminals are correctly identified
• Voltages are in the proper phase relationship
• Transformers can operate safely together

In this guide, you will learn:

• What does polarity mean in a transformer
• The purpose and importance of the polarity test
• Types of polarity: Additive and Subtractive
• Step-by-step procedure for single-phase and three-phase polarity tests
• Safety precautions, standards, and common mistakes to avoid

[articlepage]

Flux and Polarity in Transformers

In a transformer, flux (ɸ) and polarity are closely related because they determine the direction of the induced EMF (Electromotive Force) and current in the windings.

Lenz’s Law and Flux Relationship

According to Lenz’s Law, the flux induced in the secondary winding (ɸ₂) always opposes the primary flux (ɸ).
👉 This ensures energy conservation and proper functioning of the transformer.

How to Find EMF and Current Direction?

We use the Right-Hand Thumb Rule:

• Thumb → Direction of Flux (ɸ)
• Fingers → Direction of Induced Current

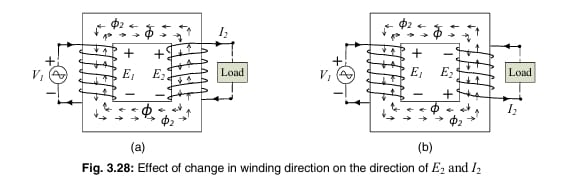

Role of Winding Direction

The way windings are wrapped decides the transformer’s polarity:

• ✅ If primary and secondary windings are wound in the same direction, then EMF and current will have the same polarity.
• 🔄 If windings are wound in the opposite direction, then EMF and current will have opposite polarity.

Importance of Parallel Operation

When two or more transformers are connected in parallel, correct polarity is extremely important:

• ✔️ Same polarity terminals connected → Load current divides properly, ensuring safe operation.
• ❌ Opposite polarity terminals connected → Can cause a short-circuit, leading to transformer damage and safety hazards.

👉 That’s why a Polarity Test is always done before parallel operation to confirm correct flux and polarity.

What is Polarity in Transformers?

Definition:
Polarity in a transformer refers to the relative direction of the induced voltage in the primary and secondary windings.

When an AC voltage is applied to the primary winding, a voltage is induced in the secondary winding. The terminals where current enters and leaves determine the polarity.

Importance of Correct Polarity

• Ensures that voltages from different windings or transformers are in phase when connected.
• Critical in parallel operation to avoid circulating currents.

Effects of Incorrect Polarity

• Circulating currents appear if transformers are connected in parallel with the wrong polarity.
• Increases risk of short circuits, overheating, and system instability.
• It can damage both the transformer and the connected load.

Purpose of the Polarity Test of Transformer

Ensure Parallel Operation

• Confirms that two or more transformers can operate in parallel without circulating currents.
• Prevents overheating, excessive energy loss, and uneven load sharing.

2️⃣ Prevent Reverse Polarity

• Incorrect polarity can cause short circuits, heavy sparks, or equipment damage.
• Maintaining correct polarity reduces maintenance issues and extends transformer life.

3️⃣ Confirm Phase Relationship

• Ensures correct phase sequence in single-phase and three-phase systems.
• Prevents dangerous conditions due to phase opposition, protecting both load and system.

4️⃣ Enhance System Reliability & Safety

• Guarantees smooth commissioning and safe parallel operation.
• Reduces the chances of unexpected shutdowns, electrical faults, or system failures.

The main reasons for performing a transformer polarity test are:

• To determine whether the transformer has Additive or Subtractive polarity.
• To ensure safe parallel operation of two or more transformers.
• To verify terminal markings (H1, H2, X1, X2).
• To prevent circulating currents and short circuits.
• To ensure compliance with IEC/ANSI/IS standards.

In short, the polarity test ensures that transformers can operate safely and effectively together.

Types of Transformer Polarity:

[articlepage]

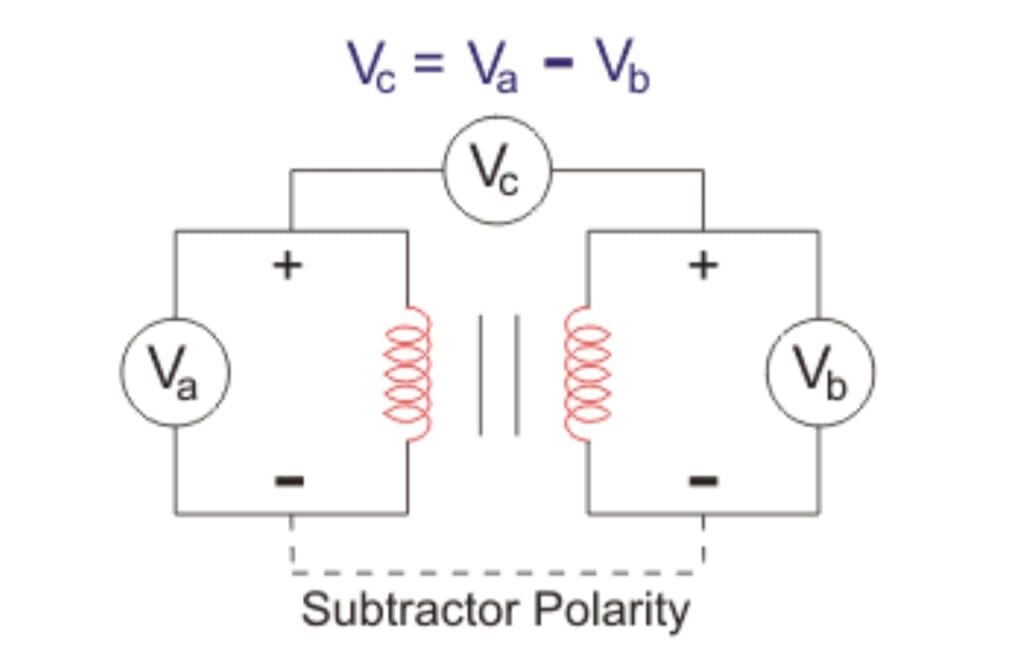

1. Subtractive Polarity

Definition:
When the voltmeter reading between the primary and secondary terminals of a transformer shows the difference of their voltages, it is called Subtractive Polarity.

• Occurs when high-voltage terminal H1 and low-voltage terminal X1 are on opposite sides of the transformer.
• If H1 and X1 are connected, the voltmeter shows the difference of voltages.
• Commonly used in power transformers and larger distribution units.
• Advantages: Preferred for higher ratings because of better insulation design.

Formula:
Vₘₑₜₑᵣ = E₁ − E₂

Example:
If E₁ = 2200 V and E₂ = 220 V, then
Vₘₑₜₑᵣ = 2200 − 220 = 1980 V

Polarity Marking:

• Secondary (+) → L1, (–) → L2
• H1 ↔ L1 → Same polarity
• H2 ↔ L2 → Same polarity

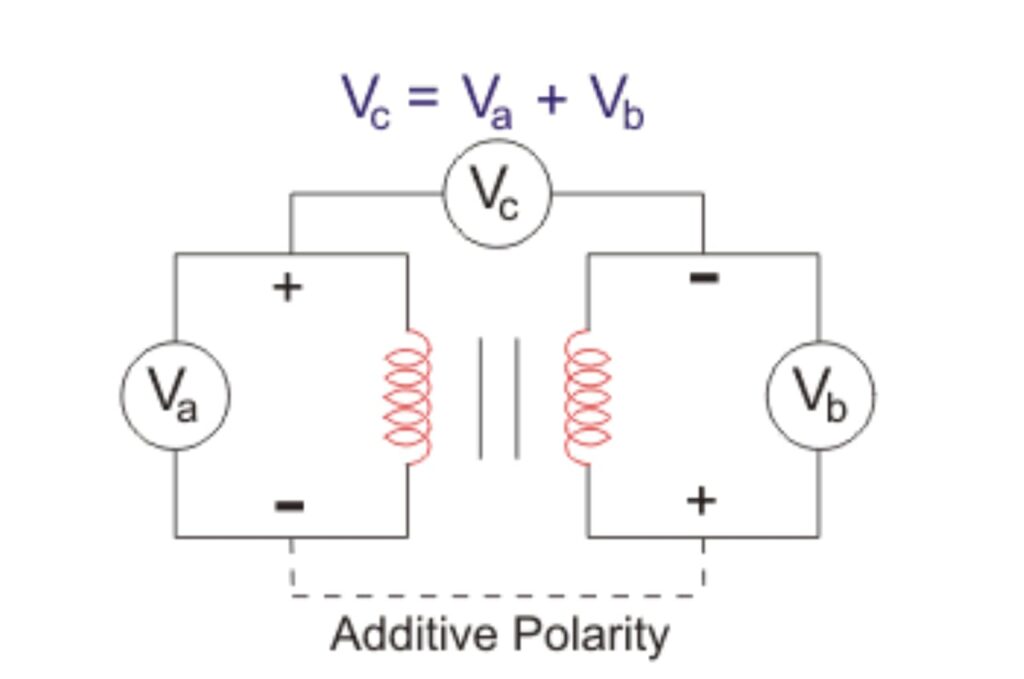

2. Additive Polarity

Definition:
When the voltmeter reading between the primary and secondary terminals of a transformer shows the sum of their voltages, it is called Additive Polarity.

• When high-voltage terminal H1 and low-voltage terminal X1 are on the same side of the transformer.
• If H1 and X1 are connected, the voltmeter shows a higher value (sum of voltages).
• Commonly used in small distribution transformers (below 200 kVA).
• Advantages: Easier to test and safer for field use.

Formula:
Vₘₑₜₑᵣ = E₁ + E₂

Example:
If E₁ = 2200 V and E₂ = 220 V, then
Vₘₑₜₑᵣ = 2200 + 220 = 2420 V

Polarity Marking:

• Secondary (+) → L2, (–) → L1
• H1 ↔ L2 → Same polarity
• H2 ↔ L1 → Same polarity

Additive vs Subtractive Polarity (Quick Comparison)

Polarity Test of Transformer

[articlepage]

1️⃣ Single-Phase Polarity Test

Objective:

• Determine whether the transformer polarity is Additive or Subtractive.
• Essential for parallel operation, phase matching, and system safety.

Safety & Equipment:

• Low-voltage AC supply (6–12 V)
• Voltmeter (high input impedance)
• Connecting leads & insulated tools
• Safety gloves
• (Optional) Clamp meter or oscilloscope

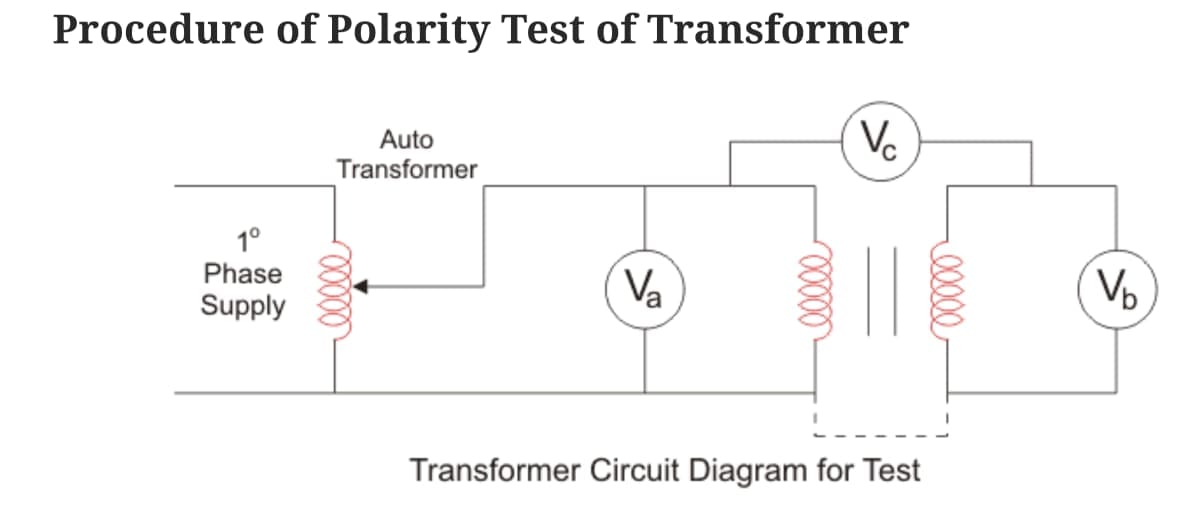

Step-by-Step Procedure:

1. Connect the primary winding – terminals H1 and H2.
2. Interconnect terminals – short H2 (primary) to L2 (secondary).
3. Measure voltage – connect the voltmeter across H1 and L1.

Observation:

• V_meter = E₁ + E₂ → Additive Polarity
• V_meter = E₁ – E₂ → Subtractive Polarity

Formulas:

• Additive: V_meter = E₁ + E₂
• Subtractive: V_meter = E₁ – E₂

Notes:

• Always test on the low-voltage side.
• Label all terminals after the test with H1, H2, L1, and L2 polarity dots.

2️⃣Polarity Test of Three-Phase Transformer

Objective:

• Confirm phase displacement (30°, 150°, etc.) and vector group (e.g., Dyn11, Yy0).
• Prevent circulating currents and phase opposition.
• Ensure safe parallel operation in substations.

Procedure:

1. Apply a single-phase low-voltage AC supply to one HV terminal.
2. Measure induced voltage at LV terminals.
3. Record phase angle using a voltmeter or oscilloscope.
4. Verify vector group and phase sequence according to the manufacturer’s nameplate.

Applications:

• Power plants: Generator-transformer connection
• Substations: Parallel operation of transformers
• Industries: Load sharing across multiple transformers
• System protection: Correct vector group prevents tripping & imbalance

Comparative Table: Single-Phase vs Three-Phase Polarity Test

Transformer Terminal Markings and Polarity Symbols

Terminal Markings:

• High-Voltage (Primary) Terminals: H1, H2, H3
• Low-Voltage (Secondary) Terminals: X1, X2, X3

Polarity Mark (• Dot Symbol):

• Indicates the instantaneous polarity relationship between primary and secondary windings.
• Shows which terminals are in-phase with each other.

Importance:

1. Ensures Safe Parallel Operation:
   • Correct dot identification prevents circulating currents when transformers operate together.
2. Prevents Reverse Connection:
   • Avoids potential equipment damage due to incorrect wiring.
3. Simplifies Testing & Installation:
   • Helps technicians quickly identify polarity relationships during setup and commissioning.

Transformer Insulation Class and Polarity

[articlepage]

Insulation Class:

• Transformers are designed with a specific insulation class to safely handle operating voltages.
• High-voltage power transformers require a higher insulation class to protect against extra-high voltages and surges.
• Standards such as IEC, ANSI, and IS define Basic Insulation Levels (BIL), ensuring that transformers can withstand impulse and surge voltages safely.

Polarity and Insulation:

• The polarity test is directly related to insulation safety.
• During the test, a low-voltage supply is applied to the transformer windings.
• This ensures that the insulation is not stressed beyond rated limits, keeping the transformer safe while verifying correct terminal polarity.

Importance:

1. Ensures safe parallel operation of transformers.
2. Keeps primary and secondary voltages in-phase.
3. Prevents faults due to reverse connections.

Safety Precautions During Polarity Test

De-energize the Transformer

• Always completely disconnect the transformer from the supply.
• Ensure there is no residual voltage remaining.
• Verify using a voltage tester before starting any work.

2️⃣ Use Insulated Tools and Wires

• Use high-quality insulated tools and wires.
• Ensure insulation is intact to prevent short circuits or electric shocks.

3️⃣ Keep Test Voltage Low

• For lab testing, use 6–12 V AC low voltage.
• In industrial setups, use a step-down device and measure voltage carefully.

4️⃣ Avoid Touching Live Terminals

• Never touch open or live terminals.
• Use insulated pliers or probes for measurements.

5️⃣ Double-check Wiring and Connections

• Verify all wiring and terminal connections are correct.
• Confirm polarity markings (H1, H2, X1, X2).
• Take precautions to avoid reverse connections.

6️⃣ Additional Safety Tips

• Wear safety gloves, goggles, and flame-retardant clothing.
• Keep the working area dry and free of obstructions.
• Use an insulated mat and place warning signs nearby.
• Ensure emergency disconnect switches and a first aid kit are easily accessible.
• For extra protection, use an RCD (Residual Current Device) or isolation transformer.

Standards for Transformer Polarity Test

Transformer polarity tests are carried out according to international and national standards to ensure safety and accuracy:

[articlepage]

1️⃣ IEC 60076

• International Standard
• Covers the design, testing, and insulation requirements for power transformers.

2️⃣ ANSI C57

• American Standard
• Specifies transformer testing procedures and polarity marking rules.

3️⃣ IS 2026 & IS 1180

• Indian Standards
• Define test voltage, procedures, and insulation requirements for power and distribution transformers.

✅ Importance

These standards provide clear guidelines for:

• Test voltage
• Testing procedures
• Insulation limits
• Polarity marking

This ensures safe and reliable operation of transformers.

Common Mistakes in Polarity Test and How to Avoid Them

Applications of Transformer Polarity Test

1️⃣ Parallel Operation of Transformers

• Ensures two or more transformers can safely share a load.
• Prevents circulating currents, voltage opposition, and load imbalance.
• Correct polarity → maximum load sharing + minimal losses.

2️⃣ Industrial Troubleshooting

• Identifies wiring errors, wrong phase connections, or reversed terminals.
• Reduces downtime during unexpected trips or abnormal operation.
• Protects sensitive equipment in process industries.

3️⃣ Substations and Power Plants

• Confirms terminal alignment during installation/maintenance.
• Ensures correct phase sequence in three-phase systems.
• Important for synchronizing multiple transformers → stable grid operation, prevents cascading failures.

4️⃣ Educational & Lab Experiments

• Provides practical understanding of transformer polarity and phasor orientation.
• Connects theory with practice.
• Teaches students safe testing and operational practices.

✅ Additional Notes

• Correct polarity → high efficiency, reliability, minimal losses.
• Wrong polarity → circulating current, excessive heat, winding damage, unsafe operation.

Comparison with Other Transformer Tests

1️⃣ Polarity Test vs Continuity Test

Insight: Continuity = path exists. Polarity = path exists and is aligned correctly.

2️⃣ Polarity Test vs Vector Group Test

Insight: Polarity = first step (basic correctness).
Vector Group = advanced step (complete phasor relationship).

3️⃣ Polarity Test vs OC & SC Test (Open Circuit & Short Circuit Tests)

Insight: Polarity Test = connection accuracy.
OC/SC Tests = load/no-load behavior.

FAQ

Conclusion

The Polarity Test of Transformer is a simple yet vital procedure.
By identifying whether the transformer has additive or subtractive polarity, engineers ensure safe connections, efficient operation, and system reliability.

When done correctly, it prevents costly faults and guarantees that transformers can share load safely in parallel.

In short: Never ignore polarity testing — it’s the foundation of transformer safety.
