🧠 1. What is a Latching Relays?
A latching relay is an electromagnetic relay that holds its last position even after power is removed, using a mechanical or magnetic latch.
⚙️ 2. Working Principle
It has two coils—Set and Reset. The Set coil changes contact position; the Reset coil restores it. The relay stays latched without continuous power.
🧩 3. Types of Latching Relay
Two types:
- Mechanical Latching – uses a locking spring.
- Magnetic Latching – uses a permanent magnet.
⚡ 4. Construction
Made of Set/Reset coils, armature, contacts, spring, and magnetic core. The armature moves when energized and stays latched.
🔌 5. Operation
Set coil ON → relay closes and stays latched.
Reset coil ON → relay releases and returns to normal.
🌟 6. Advantages
Saves power, remembers last state, offers stable, reliable, and long-life operation.
🏠 7. Applications
Used in smart lighting, home automation, control panels, memory circuits, and energy-saving systems.

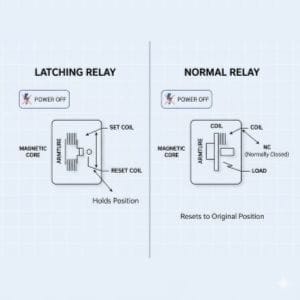

Difference vs Non-Latching Relay
Latching relays remember their state after power loss; non-latching relays return to default and need continuous power.
Table of Contents
🔹 Introduction
A Latching Relay is a special type of electromagnetic relay that retains its contact position even after the control power is removed.
Unlike a normal relay, it does not return to its default (normal) position when power is switched off — instead, it “remembers” its last state.
This feature is achieved either through a mechanical locking mechanism or a magnetic holding arrangement.

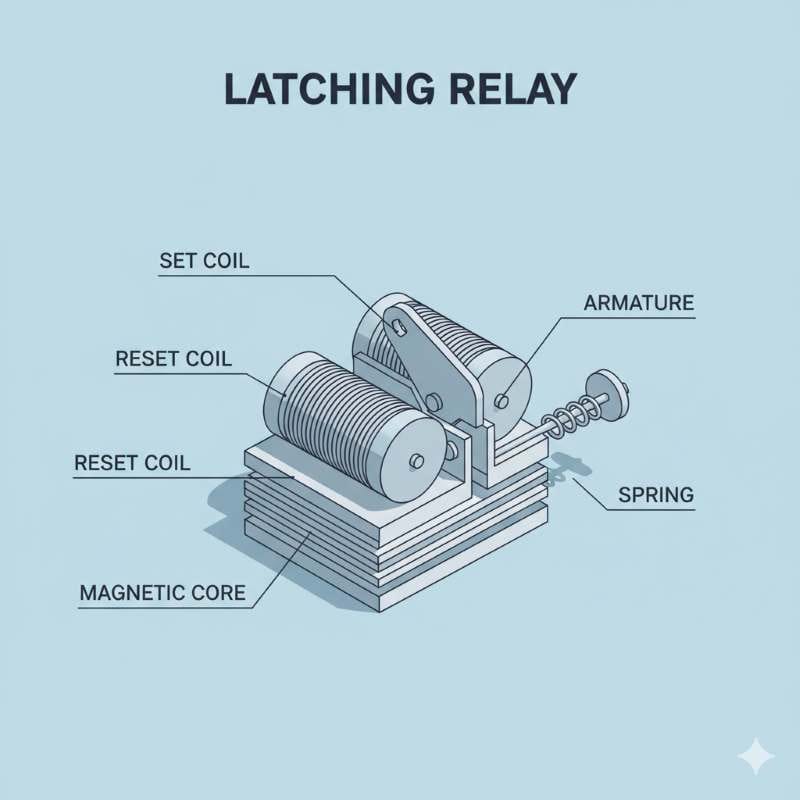

Construction of a Latching Relay
A Latching Relay consists of several key components that work together to maintain or change its contact position. The main parts are explained below 👇
1️⃣ Coil (Set / Reset or Bistable Coil)
The coil is responsible for switching the relay ON or OFF.
- The Set Coil energizes the relay and brings it to the active (ON) position.
- The Reset Coil de-energizes it and returns the relay to its normal (OFF) position.
In some designs, a single bistable coil is used, which can change states with current pulses of opposite polarity.
2️⃣ Armature and Contacts
The armature is the moving part of the relay that reacts to the magnetic field generated by the energized coil.
It is mechanically linked to the contacts (Normally Open or Normally Closed), which either make or break the electrical connection in the circuit.
When the set coil is energized, the armature moves, changing the state of the contacts — for example, from open to closed.
3️⃣ Spring and Magnetic Core
The spring helps return the armature to its original position when the magnetic field is removed (in non-latching or reset operation).
The magnetic core concentrates the magnetic flux produced by the coil, ensuring a strong and reliable pull on the armature.
In permanent magnet latching relays, the magnetic core retains its magnetism even after power is removed — allowing the relay to hold its state without a continuous power supply.
⚙️ Working Principle
A latching relay typically has two separate coils:
1️⃣ Latching (Set) Coil – Activates the relay and switches it ON.
2️⃣ Unlatching (Reset) Coil – Returns the relay to its OFF or normal position.
When the latch coil is energized, the armature moves, changing the contact position — the Normally Open (NO) contacts close.
Even after the supply is removed, the mechanical linkage or magnetic lock keeps the contacts in the same position.
To restore the relay to its original state, the unlatch coil is energized.
Once it operates, the relay returns to its previous position, and remains there even when the power is cut off.

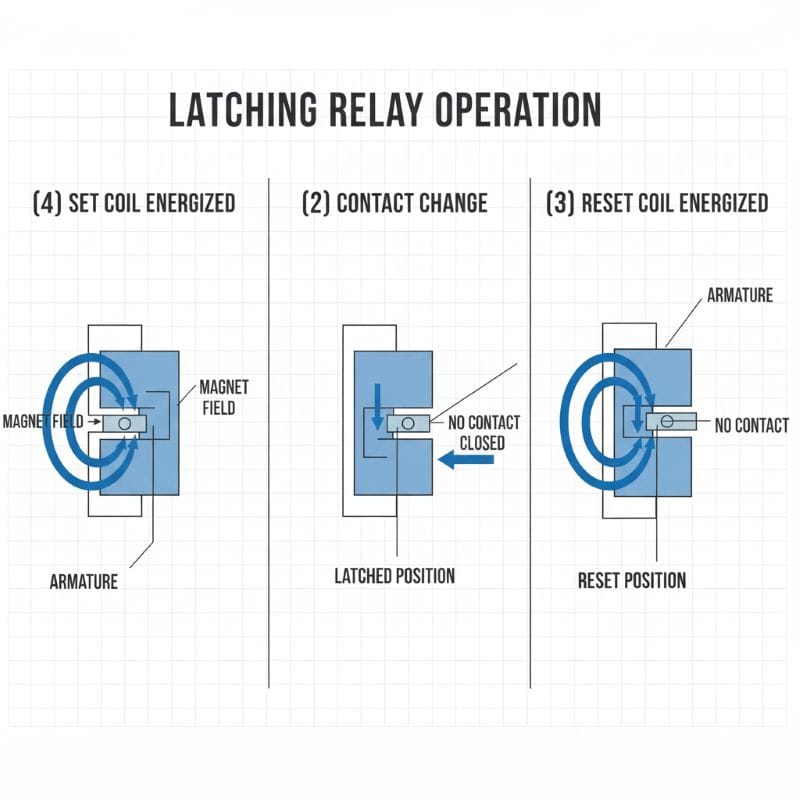

⚡ Operation of a Latching Relay
Let’s understand its working step-by-step 👇
1️⃣ Latching (Set Operation)
- When supply is applied between terminal 1 and neutral, the latch coil gets energized.
- Current flows through diode D1, magnetizing the relay core.
- The relay switches to the ON position and remains closed even after the supply is removed, due to the residual magnetic field.
2️⃣ Unlatching (Reset Operation)
- To open the relay, supply is applied between terminal 2 and neutral.
- Current flows in the opposite direction through diode D2.
- The core becomes demagnetized, and the relay returns to its open (OFF) position.
- The unlatch coil supply automatically disconnects because the Normally Open (UL) contact opens after the reset.

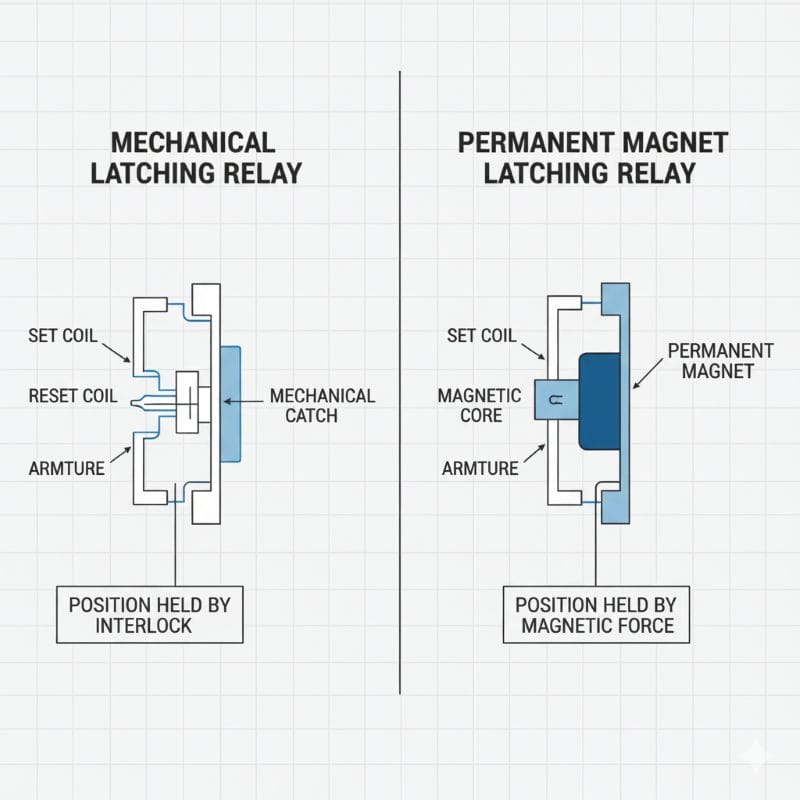

Types of Latching Relays
A Latching Relay is designed to retain its ON or OFF position even after power is removed.
Based on its holding mechanism, it is primarily classified into two main types 👇

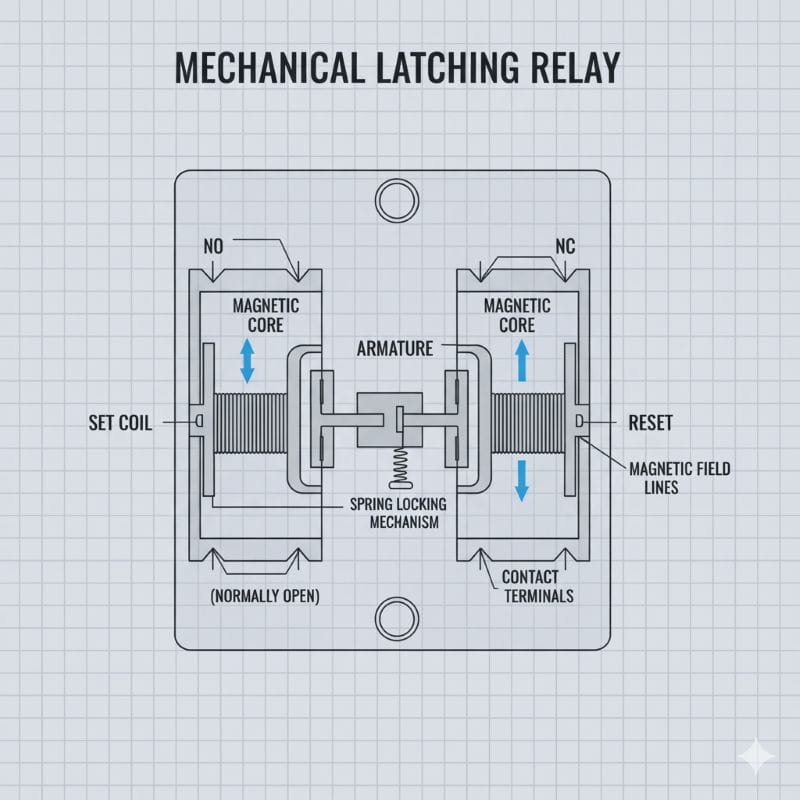

🧩 1. Mechanical Latching Type
This type of relay uses a mechanical locking mechanism that keeps the armature locked in its previous position.
When the Set Coil is energized, the armature moves, changing the contact position (for example, NO → NC or NC → NO).
This position remains mechanically locked even after the power is removed — until the Reset Coil is energized to release it.
🔹 Key Features:
- Uses a spring or lever mechanism to lock the armature.
- Retains its position even after power is switched off.
- Commonly used in industrial control systems, power switching circuits, and automation devices.

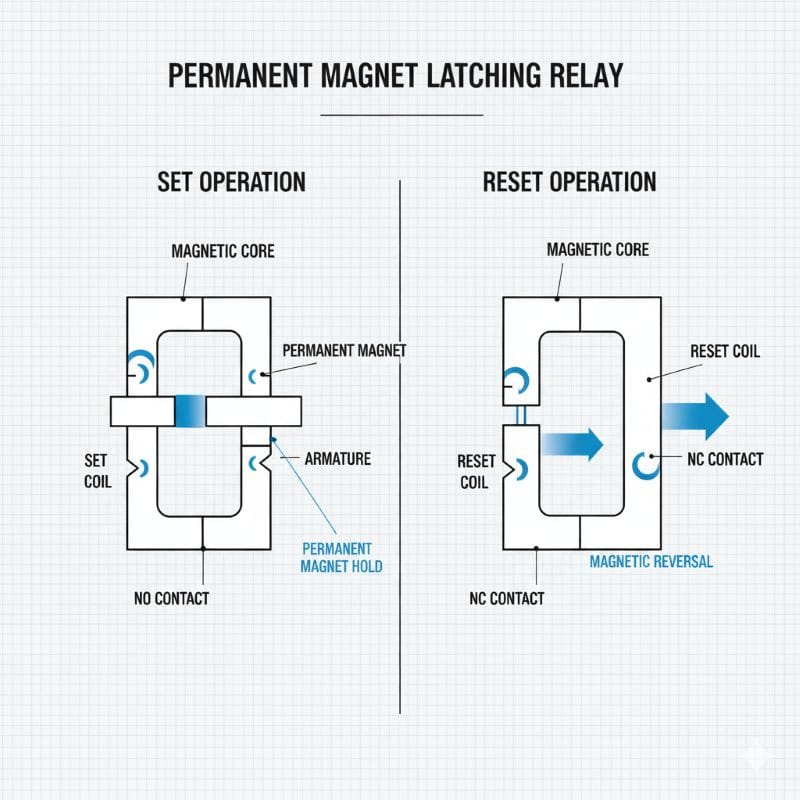

🧲 2. Permanent Magnet Type
In this type, a magnetic core or permanent magnet is used to hold the relay in its last position.
When the coil is energized, the magnetic force attracts the armature, changing the contact position.
Even after power is removed, the magnetic field of the permanent magnet keeps the relay in that same position.
🔹 Key Features:
- No continuous power required to maintain the state.
- Silent operation and energy-efficient.
- Generates very little heat, resulting in longer lifespan.
- Widely used in electronic equipment, automation systems, and smart control circuits.
⚙️ In Summary:
| Type | Holding Mechanism | Power Requirement | Common Use |
|---|---|---|---|
| Mechanical Latching Relay | Maintains position through a physical locking system | Not required after latching | Industrial and power switching systems |
| Permanent Magnet Relay | Maintains position using magnetic force | Not required after latching | Electronic and automation systems |
✅ Advantages of Latching Relay
1️⃣ Power Saving
The biggest advantage of a latching relay is its ability to retain its position (ON or OFF) even when the control coil is not continuously energized.
Power is only consumed during the switching operation (when changing state), resulting in significant energy savings.
2️⃣ Stable and Reliable Operation
A latching relay maintains its last state even during power failure or voltage fluctuations, ensuring system stability and reliability.
This makes it highly suitable for automation and control systems, where consistent performance is critical.
3️⃣ Compact and Durable Design
These relays are compact, lightweight, and mechanically strong.
They are ideal for remote control systems, automation circuits, and energy-sensitive applications due to their low power consumption and long-term dependable performance.
4️⃣ Long Life and Low Heat Generation
Unlike standard relays, the coil in a latching relay is not continuously energized, which means less heat generation and lower contact wear.
This extends the relay’s lifespan and enhances operational efficiency.
🔌 Applications of Latching Relay
Latching relays are used in applications where state retention and low power consumption are essential.
🔹 Smart Lighting Systems
Maintains the ON/OFF state of lights without standby power, making it ideal for energy-efficient lighting networks.
🔹 Memory and Flip-Flop Circuits
Used in digital electronics for state retention and logic control operations.
🔹 Remote Control Systems
Widely used in industrial control panels and remote switching operations, where the relay must respond to distant control signals.
🔹 Power Distribution Boards
Employed in load switching, circuit protection, and safety control applications.
🔹 Home Automation Devices
Used in smart switches, timers, and lighting control systems to maintain power-efficient operation.
Limitations and Precautions of Latching Relays
Although latching relays offer several advantages like energy efficiency and reliable operation, they also come with certain limitations and precautions that must be considered during design and application. 👇
❌ Limitations of Latching Relays
1️⃣ Complex Control Circuitry
Unlike a standard relay that operates with a single coil, a latching relay often requires two separate coils (Set and Reset) or polarity-reversing circuits to change states.
This adds slight complexity to the control design and wiring.
2️⃣ Risk of State Ambiguity After Faults
In case of severe mechanical shock, vibration, or electrical fault, the relay may lose its last position or get stuck midway.
This can create uncertain output states, which might affect system reliability if not properly safeguarded.
3️⃣ Magnetic Interference (for Permanent Magnet Type)
Permanent magnet types can be affected by external magnetic fields or nearby high-current conductors.
Such interference may disturb the holding force and unintentionally change the relay’s state.
4️⃣ Manual Reset Limitation
If a system requires manual reset after each power restoration, latching relays might not be ideal, as they automatically retain their last state — sometimes not desirable for safety-critical circuits.
5️⃣ Higher Cost than Conventional Relays
Due to their dual-coil design and mechanical or magnetic holding mechanisms, latching relays are typically more expensive than standard electromagnetic relays.
⚙️ Precautions While Using Latching Relays
1️⃣ Correct Polarity Connection
For DC-operated relays, always ensure the correct polarity of the control voltage, especially for bistable or polarity-sensitive coils.
Reversing polarity may permanently damage the coil.
2️⃣ Use Proper Voltage and Current Ratings
Do not exceed the rated coil voltage or contact current capacity.
Overvoltage can overheat the coil, while overcurrent through contacts can cause pitting or welding.
3️⃣ Protection Against Surges
Use flyback diodes or snubber circuits across the coils to suppress voltage spikes during switching — this is essential for DC circuits.
4️⃣ Periodic Testing and Maintenance
In industrial environments, regular inspection is important to ensure:
- Contacts are clean and functional
- Mechanical latching mechanism is smooth
- No corrosion or magnet weakening has occurred
5️⃣ Avoid External Magnetic Fields
When installing permanent magnet latching relays, keep them away from transformers, solenoids, or high-current busbars to prevent magnetic interference.

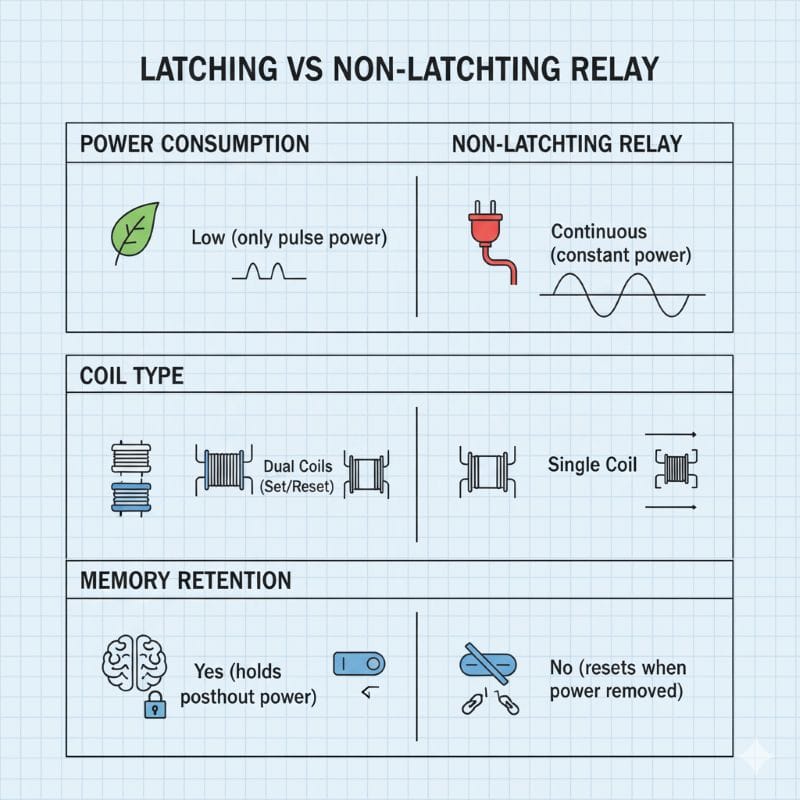

Difference Between Latching Relay and Non-Latching Relay
Both Latching Relays and Non-Latching Relays are types of electromagnetic relays, but they differ significantly in their operation, power consumption, and state-holding capability.
A Latching Relay can retain its last position (ON or OFF) even after power is removed, whereas a Non-Latching Relay returns to its default position when power is lost.
Below is a detailed comparison table 👇
| Feature | Latching Relay | Non-Latching Relay |
|---|---|---|
| 🔋 Power Consumption | Very low – consumes power only during switching | Requires continuous power to maintain its state |
| 💾 State Retention | Remembers its last state even after power is turned off | Returns to its default (normal) position when power is removed |
| ⚙️ Coil Type | Can have single or dual coil (Set/Reset or Bistable) | Has only a single coil |
| 🧠 Applications | Used in energy-saving systems, automation, and remote control applications | Used in general control circuits and temporary switching operations |
🧩 Real-Life Example
Imagine a street lighting control system —
All street lights automatically turn ON at night and turn OFF during the day.
If latching relays are used in this system, the relay only needs a small electrical pulse to change its state.
It doesn’t require continuous power to keep the lights ON, resulting in massive energy savings every day.
Thus, latching relays make the system more economical, energy-efficient, and eco-friendly
What is a latching relay?
A latching relay is a relay that maintains its contact position after power is removed. It stays latched in its last position until a reset signal is applied.
What is the main advantage of a latching relay?
It consumes no power to hold its state, making it ideal for energy-saving systems.
How does a latching relay work?
It uses magnetic or mechanical locking to “remember” its last position, requiring only a short pulse to change states.
Where is a latching relay used?
Used in smart lighting, automation, telecommunication, and power distribution systems.
Conclusion
A latching relay is a smart and efficient switching device that holds its position even when power is removed.
It is a perfect choice for systems where power efficiency, reliability, and memory function are important.
Whether it’s used in industrial automation, telecommunication, or home control, the latching relay stands out as a compact and energy-saving solution for modern electrical designs.
