Compensating Winding

When a motor or generator is working, the current inside the armature (the rotating part) keeps changing, especially when the load changes suddenly or becomes too heavy. These changes in current create something called a cross magnetizing effect, which means the magnetic field gets pushed to one side.

Now imagine this — every time the load goes up or down quickly, the current also changes quickly. This pushes the main magnetic field forward or backward again and again. You can think of it like a seesaw going up and down — the magnetic field just can’t stay still!

Because of this shifting, the magnetic force (flux) that cuts through the armature coils also keeps moving. And when it moves very fast, it can create a sudden jolt of electricity inside the coil — kind of like a surprise shock. If this jolt is too strong, it might break through the thin insulation between parts of the commutator (the part that connects the coils to the rest of the machine).

This can cause a small spark or even a flash of light between the commutator segments — something we don’t want, because it can damage the machine.

That’s why we use something called a compensating winding. Think of it as a helpful friend inside the machine. It balances out the sudden changes in the magnetic field and keeps everything running smoothly. It stops the field from jumping around too much and protects the motor or generator from getting hurt.

Also, just so you know, the voltage (or electric pressure) between two nearby commutator segments should not go above 30 to 40 volts. If it does, there’s a chance of a spark, which is dangerous.

What is a Compensating Winding?

Imagine a DC machine like a team working together. Everyone has a job, and if one part of the team gets too excited or strong, it can disturb others. That’s where compensating winding comes in—it keeps things balanced and smooth.

🧲 Where is it and What Does It Do?

The compensating winding is made of copper wire and is placed right on the face of the machine’s poles—these are called pole shoes. The wires are carefully placed in small slots cut into the pole face.

This winding works side-by-side with the armature winding (that’s the main working part). It carries the same current, but in the opposite direction. Why? So it can cancel out the unwanted magnetic effects caused by the armature.

⚡ Why is it Needed?

When a machine is working and the load (or work demand) changes suddenly, the armature creates a magnetic force that can disturb the main magnetic field. This is called the cross-magnetizing effect.

If this is not fixed, the machine gets confused. The neutral point—the safe point where no current should flow—shifts. This shift can cause sparks or even a flash between parts called commutator segments. That’s dangerous and can damage the machine.

🛡️ How Compensating Winding Helps

The compensating winding acts like a protector. It fights back the disturbing magnetic force by creating an equal and opposite magnetic field. It keeps the machine calm and steady—even when the load changes suddenly.

Why Do We Use a Compensating Winding in a DC Machine?

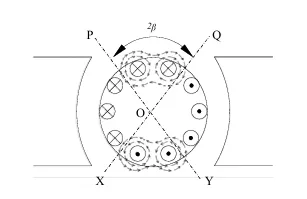

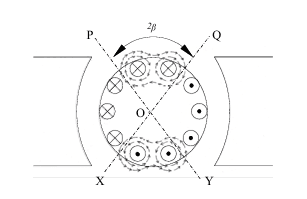

When a DC machine runs, the armature (the rotating part) creates its own magnetic field. This field sometimes clashes with the main magnetic field of the machine. This can bend or twist the original magnetic lines, which is called distortion. Because of this, the machine can spark during operation, which is not good.

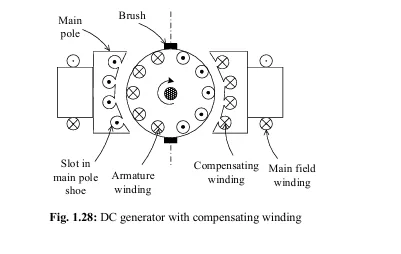

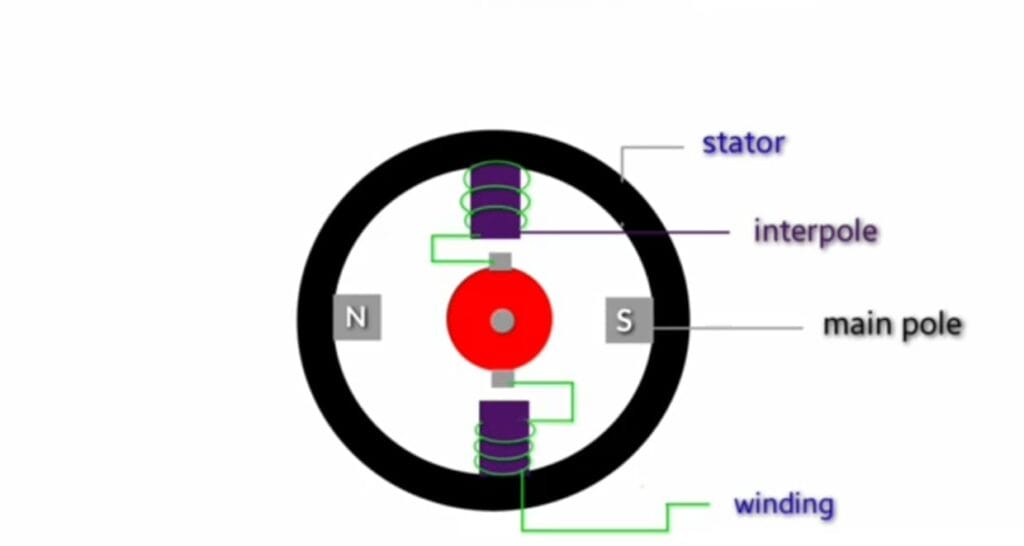

To fix this, engineers make small cuts (slots) in the front face of the magnetic poles of the stator (the non-moving part). In these slots, they put a special extra coil called the compensating winding.

This winding is joined in line with the armature, so it carries the same current. But here’s the smart part: the direction of the current in the compensating winding is opposite to the current flowing in the armature wires right under the pole. This means it pushes against the disturbance caused by the armature.

As a result, the extra magnetic field from this winding cancels out the armature’s disturbing field. This keeps the main magnetic field clean and steady, helping the machine run smoothly without sparks.

Even though this winding adds cost, it is very useful in big machines where heavy loads or fast changes in load happen, like in rolling mills or power generators. In such cases, it’s worth the cost because it protects the machine and helps it work better.

Advantages of Compensating Winding in a DC Machine

Let’s understand it in a way that even a school-going child can learn easily.
A DC machine is a type of motor or generator that works on direct current. Inside it, many parts work together to make it run smoothly. One of these important parts is called the compensating winding.

Now let’s see why this part is so helpful:

🌟 1. Makes Commutation Easy

When the machine changes current direction, we call it commutation. If this is not done properly, the machine can spark or get damaged. Compensating winding helps to make this process smooth and safe.

📍 2. Keeps Brushes in One Position

In DC machines, brushes touch the moving parts. Usually, we need to shift them for smooth running. But with compensating windings, the brushes can stay fixed. No need to adjust again and again.

⚡ 3. Works Well Even When Load Changes

Sometimes, the machine has to do more or less work – that is called load change. Even if the load keeps changing, compensating windings help the machine to run without trouble.

🔋 4. Saves Energy and Improves Efficiency

This winding helps all parts work better together, so the machine uses less power and gives more output. That means it becomes more efficient.

✨ 5. Reduces Sparking

Without this winding, machines can create sparks while running. But with compensating winding, sparking is reduced. That makes the machine safer and longer-lasting.

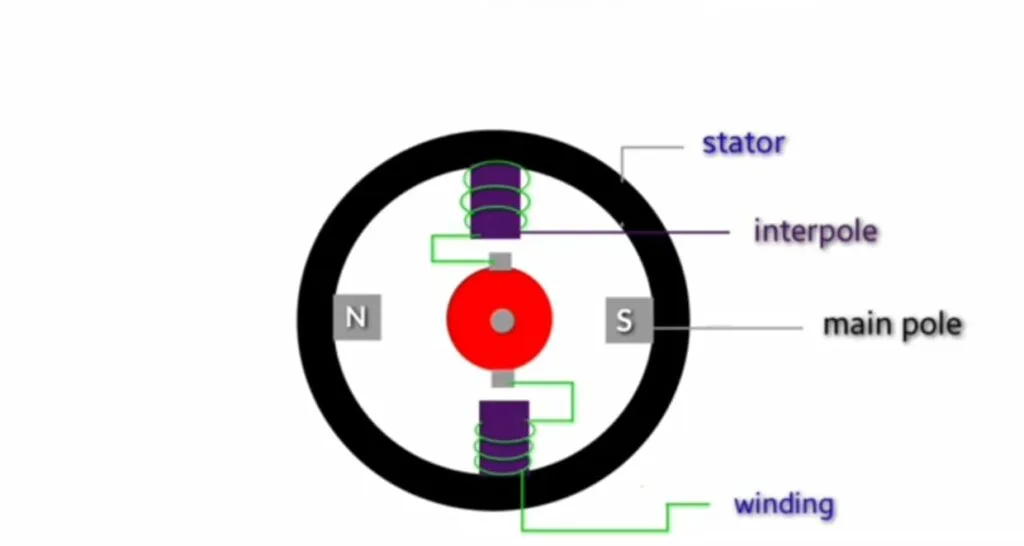

🧼 6. Increases Life of Brushes and Commutator

When sparking is less, there is less damage to the brushes and commutator (the part that rotates). So these parts last longer and need fewer repairs.

🛠️ 7. Makes DC Machines Smaller and Stronger

Thanks to compensating winding, we can design compact machines that are still powerful and strong. They can fit in small spaces and still do big jobs.

✅ In Simple Words:

Compensating winding is like a helper inside the machine. It keeps everything running smoothly, safely, and with less damage. Because of it, DC machines become smarter, stronger, and longer-lasting.

Function of Compensating Winding in a DC Machine

A compensating winding is a special type of coil used in DC machines to keep everything running smoothly.

Let’s understand it simply.

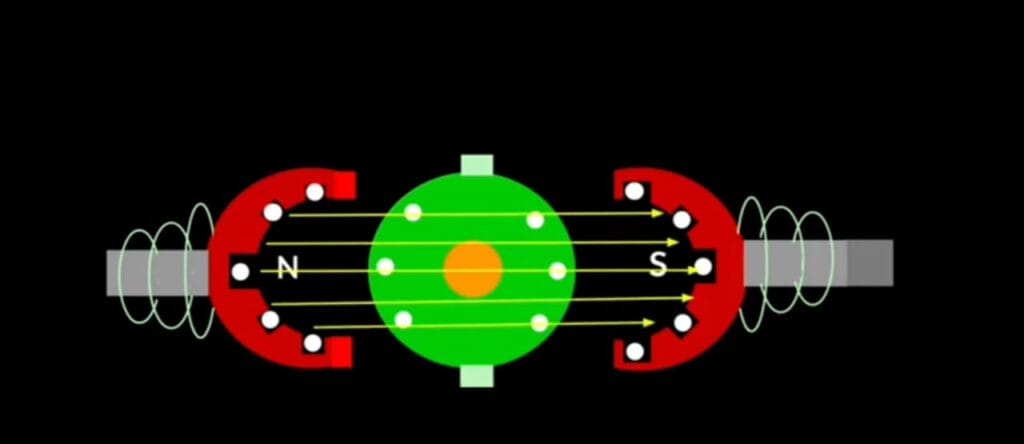

When a DC machine is working, electric current flows through a part called the armature. This current creates its own magnetic field, which sometimes disturbs the main magnetic field inside the machine. This disturbance is called armature reaction.

Now, why is that a problem?

Because of this disturbance, the magnetic force becomes uneven—especially under the curved part of the magnet called the pole shoe. This uneven force can cause extra voltage in some wires, which may become too much for the machine to handle. It can even cause sparks on the part called the commutator—that’s dangerous!

So, how do we fix this?

That’s where the compensating winding comes in. It is placed right in the pole faces (near the magnetic poles). Its job is to cancel out the bad effects of the armature’s magnetic field. Like a good helper, it keeps the magnetic field smooth and balanced.

Even if the machine load suddenly increases or decreases, the compensating winding automatically adjusts to the change. This helps to prevent voltage spikes and keeps the machine working without trouble.

In simple words:

• It protects the machine from sparking and voltage problems.
• It helps the machine run better, especially when the load is changing.
• It keeps the magnetic field stable and healthy.
• It makes commutation (switching current) smoother.

Even though adding this winding makes the machine a bit more expensive, it’s worth it—because it makes the DC machine more reliable and safe in the long run.

Conclusion of Compensating Winding

Compensating winding is a special type of winding used in electrical machines like DC motors and generators. Its main job is to reduce the effect of armature reaction, which can disturb the smooth working of the machine. When the machine runs, it creates a magnetic field. But sometimes, this magnetic field gets weak or uneven due to the armature current. That’s where the compensating winding helps.

It is placed in the pole faces and connected in such a way that it cancels out the unwanted magnetic field created by the armature. This keeps the main magnetic field strong and steady, allowing the machine to run smoothly, even under heavy load.

In simple words:
Compensating winding is like a helper. When the motor or generator gets disturbed from the inside, this helper steps in and balances everything. It makes sure the machine works properly, without jerks or power loss.

So, in the end, compensating winding is a small but powerful part that protects the machine, improves performance, and makes sure everything runs smoothly — just like a silent guard doing its duty.
