Q1. What is earthing in an electrical system?
Answer:
Earthing is the process of connecting the non-current-carrying parts of an electrical system to the ground. It provides a safe path for leakage or fault current, preventing electric shock and protecting equipment.
Q2. Why is earthing important?
Answer:
Earthing ensures the safety of people and electrical appliances. It protects against electric shocks, lightning, and short circuits while maintaining voltage stability in the system.
Q3. What are the main types of earthing?
Answer:
The most common 5 types of earthing are:
- Plate Earthing
- Pipe Earthing
- Rod Earthing
- Strip or Wire Earthing
- Chemical Earthing
Each type is used according to the load and soil condition.
Q4. What are the essential components of an earthing system?
Answer:
Main components include:
- Earth Electrode: Buried metal plate, rod, or pipe.
- Earthing Conductor: Connects equipment to the electrode.
- Earthing Lead: Main wire linking the system to the ground.
- Earth Continuity Conductor: Keeps all metallic parts at the same potential.
Q5. What should be the ideal earth resistance value?
Answer:
Ideally, the earth resistance should be less than 1 ohm for good earthing. In domestic setups, it may range between 1 to 2 ohms, depending on soil conditions.
Q6. How does earthing protect humans?
Answer:
If a fault occurs, the current flows through the earth wire instead of the human body. This prevents electric shock and ensures personal safety.
Q7. What is the difference between earthing and grounding?
Answer:
Earthing connects the equipment body to the earth for safety, while grounding connects the neutral point of the power system to stabilize voltage during unbalanced load conditions.
Q8. How often should earthing be checked?
Answer:
Earthing systems should be tested at least once every six months to ensure the resistance value remains low and all connections are intact.
Q9. What is the difference between Earthing and Grounding?
Answer:
Earthing connects equipment bodies to the ground for personal safety,
while Grounding connects the neutral of the electrical system to maintain system voltage stability.
Table of Contents
Introduction
Have you ever touched the metal body of an appliance and felt a small electric shock?
That happens when there’s a leakage of current inside the device. To protect us from such dangerous situations, electrical engineers use a safety method known as Earthing (or Grounding).
In simple terms, Earthing means connecting electrical equipment or systems to the ground, allowing any leakage current to safely pass into the earth — protecting people and devices from harm.

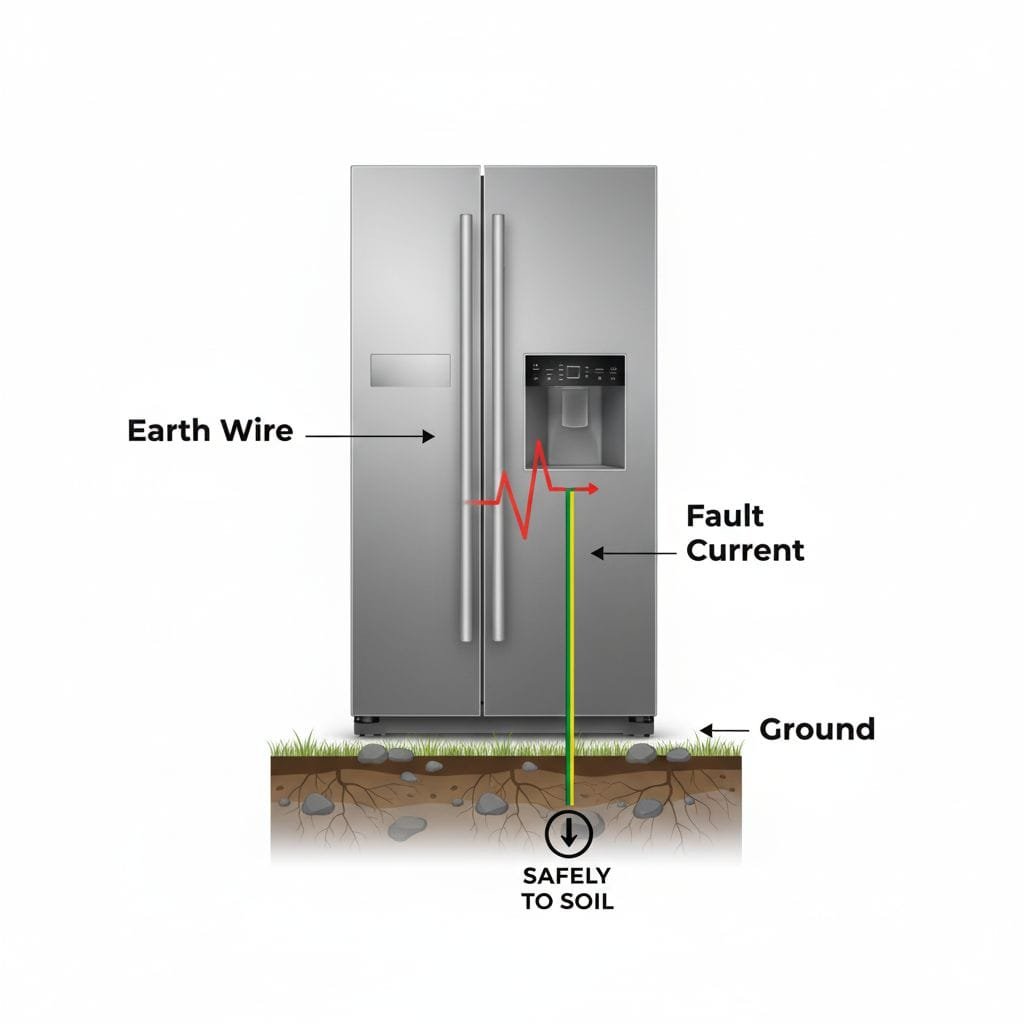

⚙️ What is Earthing?
Earthing refers to the connection of non-current-carrying parts of electrical equipment (like metal frames, enclosures, or panels) to the ground using a conductor or wire.
The main purpose of an electrical earthing system is to protect both humans and electrical equipment from electric shocks, leakage currents, and voltage instability.
In any electrical system, insulation failure can occur due to damage in wiring, aging of components, or exposure of live conductors.
If such a wire comes in contact with a metal surface—or worse, a human body—the current may leak into the ground, creating a life-threatening situation.
To prevent this danger, electricians design a safe path for fault current to flow directly into the earth.
This ensures that the person handling the equipment remains safe and the machine remains protected from internal damage.
💡 Importance of Earthing
Proper earthing is not just a technical requirement—it is a vital safety measure that ensures both human and system protection.
Below are the major reasons why earthing is important:
① Human Safety
Earthing provides a safe route for leakage current, reducing the risk of electric shock. It ensures that any exposed metal parts remain at zero potential.
② Equipment Protection
It prevents damage to motors, transformers, and electronic devices by keeping the system dry and free from dangerous voltage surges.
③ Voltage Stability
Earthing keeps the entire electrical system voltage stable by balancing potential differences between phases and neutral.
④ Lightning Protection
During a lightning strike, earthing discharges the high-voltage surge safely into the ground, preventing damage to buildings and electrical installations.
⑤ Overload and Fault Protection
When a fault current or overload occurs, the earthing system quickly diverts excess current to the ground, preventing short circuits and fire hazards.
Types of Earthing
In electrical systems, there are mainly five types of earthing used in domestic and industrial sectors.
The main objective of any earthing system is to provide a low-resistance path for leakage current to flow safely into the ground, without causing any harm to people or equipment.
The type of earthing selected depends on the load capacity, cost, and mechanical importance of the installation.
Let’s understand this with an example:
- For a small household load of about 1 kilowatt, a rod earthing system is economical and sufficient.
- For heavier electrical loads or industrial machinery (in kilowatt range), plate earthing or chemical earthing is recommended.
- The choice of earthing method is always based on load requirement and installation environment.
🔧 Main Types of Earthing
- Plate Earthing
- A copper or galvanized iron plate is buried deep in the ground.
- Suitable for heavy electrical installations and industrial equipment.
- Pipe Earthing
- Uses a galvanized iron pipe instead of a plate.
- Most common in homes and industries because it provides a large surface area for current dissipation.
- Rod Earthing
- A solid copper or steel rod is driven vertically into the earth.
- Simple and economical for small loads or domestic wiring.
- Strip or Wire Earthing
- A copper or GI strip/wire is laid in trenches for large-scale systems such as substations.
- Provides a low-resistance path for fault currents.
- Chemical or Maintenance-Free Earthing (Nickel-Coated or Graphite-Based)
- Uses a chemical compound around the electrode to maintain low resistance even in dry soil.
- Ideal for high-voltage installations and sensitive equipment.
⚙️ Summary
| Type of Earthing | Material Used | Suitable For | Key Feature |
|---|---|---|---|
| Plate Earthing | Copper / GI Plate | Heavy Loads, Industries | Low resistance, durable |
| Pipe Earthing | GI Pipe | Homes, Industries | Cost-effective, reliable |
| Rod Earthing | Copper / Steel Rod | Small Loads | Economical and simple |
| Strip/Wire Earthing | Copper / GI Strip | Substations | For large-scale grounding |
| Chemical Earthing | Nickel/Graphite Compound | High-voltage systems | Maintenance-free & long life |
Earthing Components of an Electrical System
A proper earthing system is made up of several key parts, each playing a vital role in ensuring safety and reliability.
| Earthing Components | Function |
|---|---|
| Earth Electrode | The metallic part buried in the ground (such as a plate, pipe, or rod) that allows fault current to dissipate safely into the earth. |
| Earth Conductor | The wire that connects the electrical equipment to the earth electrode. |
| Earthing Lead | The main conductor that links the electrical installation or system directly to the ground. |
| Earth Continuity Conductor | Ensures that all metallic parts within the system remain at the same potential, minimizing the risk of electric shock. |
🧮 Factors Affecting the Quality of Earthing
Several environmental and physical factors influence how effective an earthing system will be:
- Soil Resistivity: Moist soil provides better earthing than dry or sandy soil because it offers lower electrical resistance.
- Depth of Electrode: A deeper electrode generally reduces the overall resistance and improves performance.
- Type and Size of Conductor: Thicker conductors can carry more fault current safely without overheating.
- Moisture and Temperature: Higher moisture levels in the soil improve conductivity, while extreme dryness increases resistance.

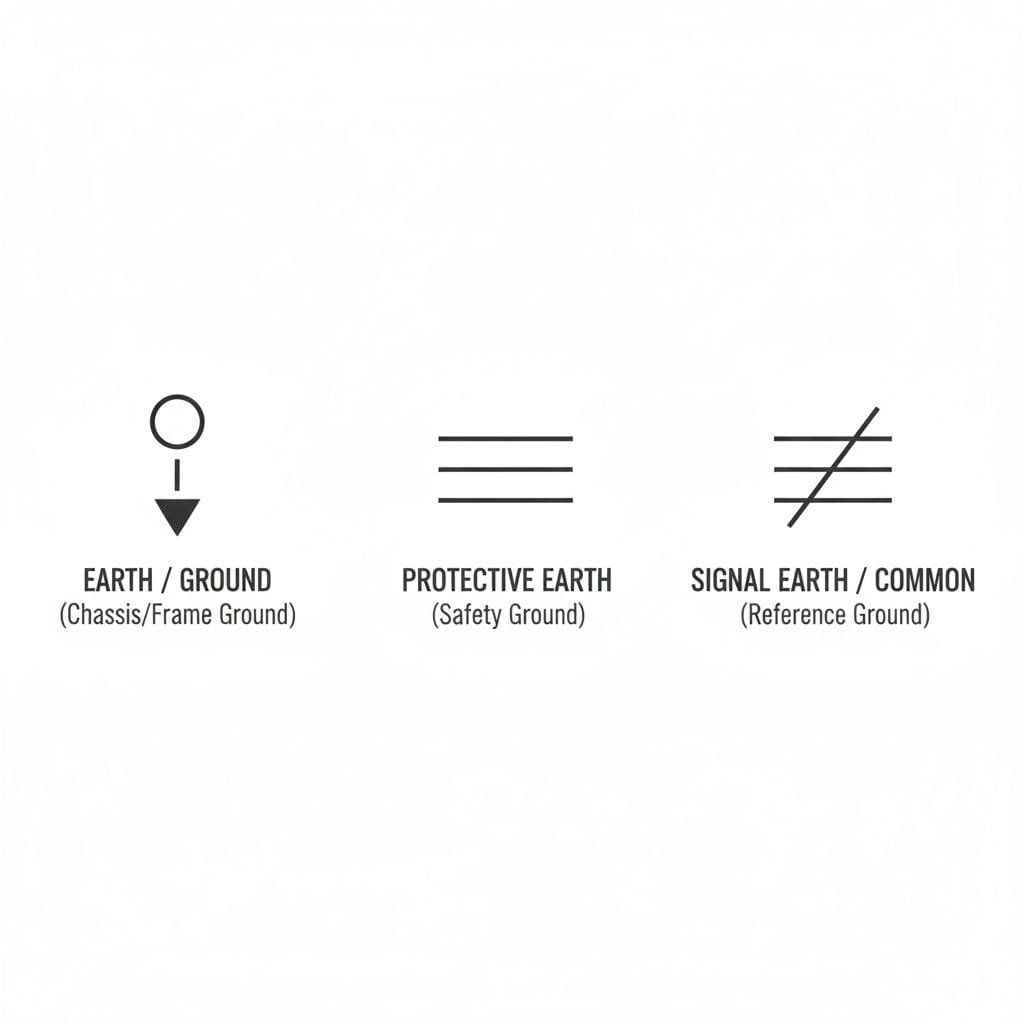

🏗️ Common Earthing Symbols
| Earthing Symbol | Meaning |
|---|---|
| ⚫⬇️ | Earth or Ground |
| ⏚ | Protective Earth |
| ⏚⏚ | Signal Earth |
🔋 Applications of Earthing
Earthing is essential in every area where electrical safety is required. It is widely used in:
- Domestic wiring and household appliances
- Industrial machines and control panels
- Power generation plants and transformer substations
- Lightning protection and surge systems

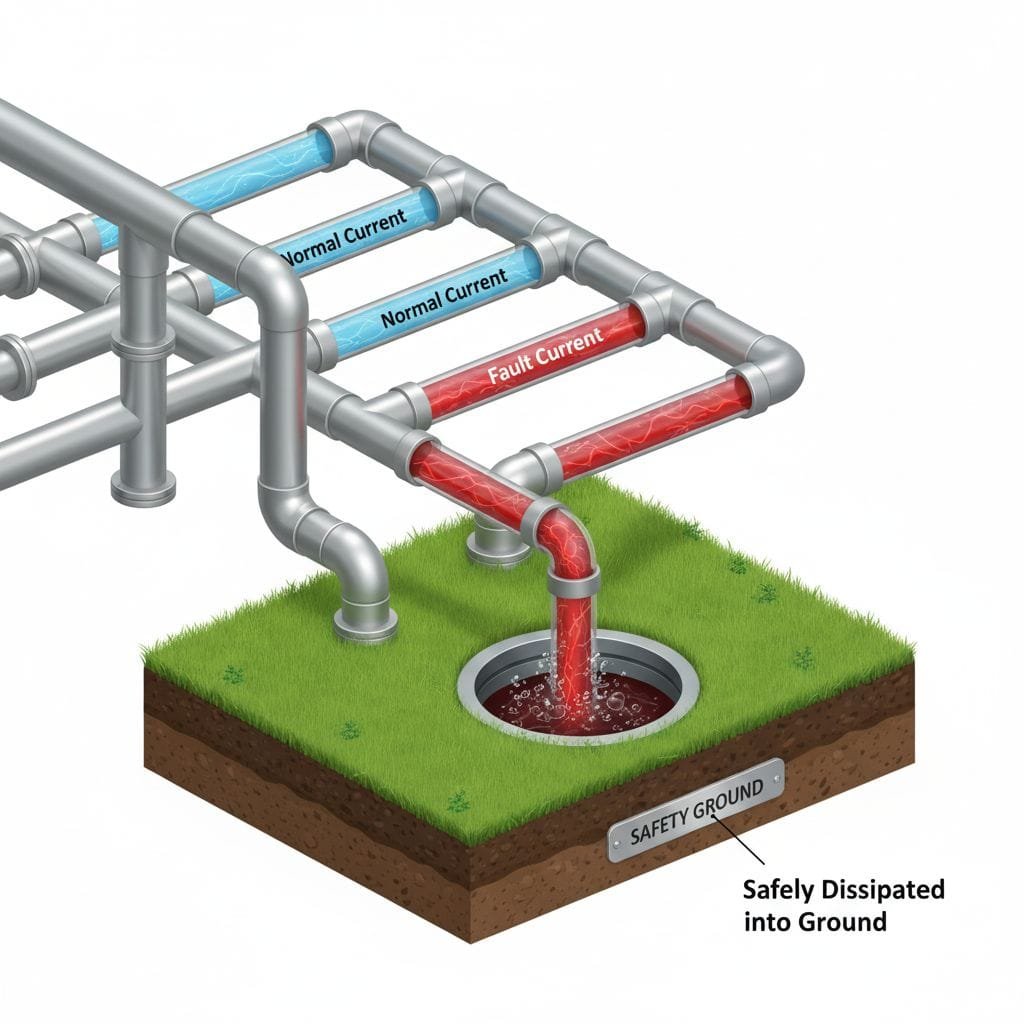

🧠 Easy Way to Understand Earthing
Imagine electricity as water flowing through pipes.
If there’s a leak, the extra water needs a drain to escape safely — otherwise, it could overflow and cause damage.
In the same way, earthing acts as a drain for excess electrical current.
It channels unwanted electricity deep into the ground, where it can no longer harm people or damage equipment.
✅ Safety Tips for Effective Earthing
- Always use a certified electrician for earthing installation and inspection.
- Measure earth resistance regularly — ideally, it should be below 1 ohm for safety.
- Avoid installing earthing systems in dry or sandy soil; use moist soil for better conductivity.
- Keep earthing pits at a safe distance from water lines and gas pipelines.
What are the safety tips for earthing?
Answer:
Always use a certified electrician.
Check earthing resistance regularly.
Avoid using dry or sandy soil.
Keep earthing pits away from pipelines.What is the ideal value of earth resistance?
Answer:
A good earthing system should have an earth resistance of less than 1 ohm.
For domestic installations, it can range between 1–2 ohms, depending on soil moisture and electrode depth.What is the difference between Earthing and Grounding?
Answer:
Earthing connects equipment bodies to the ground for personal safety,
while Grounding connects the neutral of the electrical system to maintain system voltage stability.What are common earthing symbols?
Answer:
⚫⬇️ — Earth or Ground
⏚ — Protective Earth
⏚⏚ — Signal EarthWhich factors affect the quality of earthing?
Answer:
The effectiveness of earthing depends on:
Soil resistivity (moist soil gives better results)
Depth and type of electrode
Size and material of conductor
Moisture and temperature of soilHow many types of Earthing are there?
Answer:
There are mainly five types of earthing systems:
Plate Earthing – A Metal plate buried in the ground.
Pipe Earthing – GI pipe used for better soil contact.
Rod Earthing – Copper or steel rod driven vertically.
Strip or Wire Earthing – Long metal strips buried in trenches.
Chemical Earthing – Uses chemical compounds to maintain low resistance.
🔚 Conclusion
Earthing is not just an electrical requirement — it is a life-saving system.
It protects people from electric shocks, prevents equipment damage, and keeps the entire electrical network stable and safe.
So, the next time you turn on your fan, refrigerator, or computer, remember that earthing is quietly working behind the scenes to keep you safe.
