Introduction

Transformers are vital components in electrical power systems, and their safe and efficient operation depends heavily on correct usage as per their design limits. One of the most important aspects that ensures this is transformer ratings. These ratings define the limits within which a transformer can operate without compromising its safety, performance, or efficiency.

The Significance of Transformer Rating lies in multiple areas:

• Safety: Operating a transformer beyond its rated capacity can lead to overheating, insulation failure, or even catastrophic accidents like fire or explosion.
• Performance: Ratings ensure that the transformer delivers the required voltage and current levels as intended, maintaining system reliability and stability.
• Efficiency: Staying within rated parameters minimizes energy losses, improving overall efficiency and reducing operating costs.

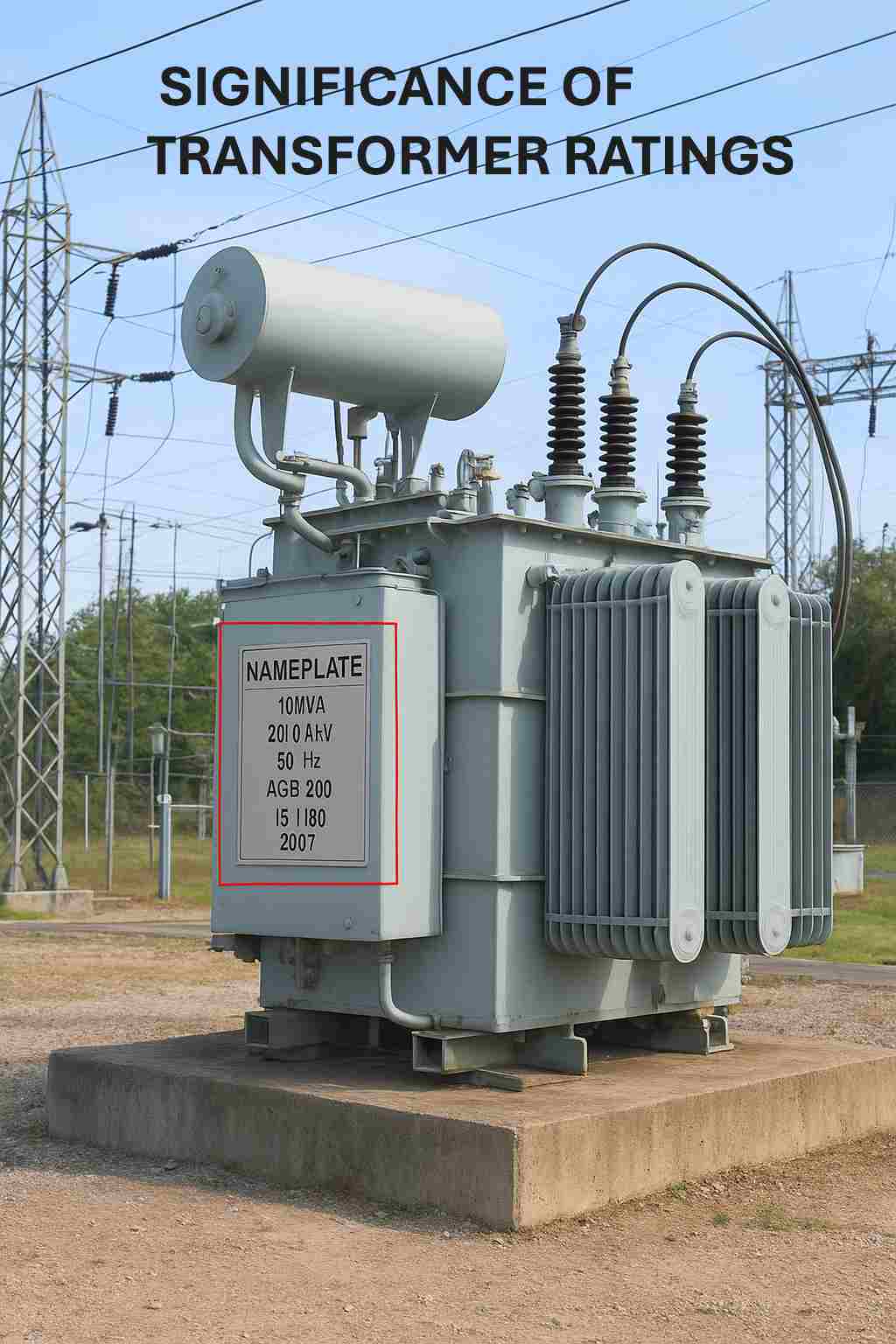

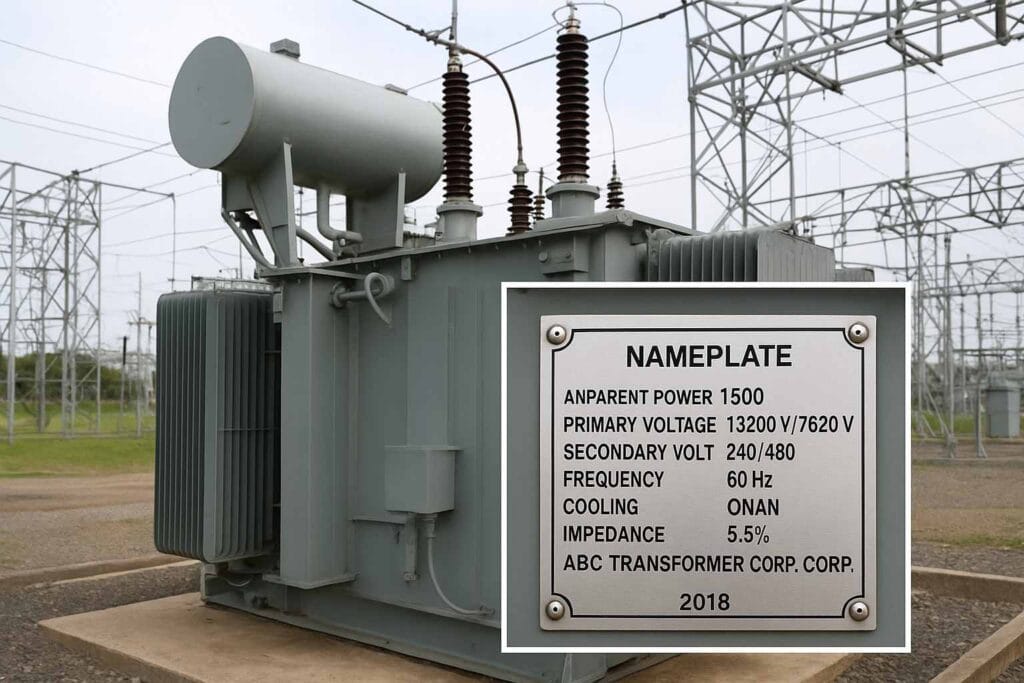

Transformer Nameplate Details

The transformer nameplate is often called the “identity card” of the transformer because it carries all the essential technical information required for safe and efficient operation. Engineers, operators, and maintenance teams rely on this data to ensure proper installation, operation, and troubleshooting. Below are the key details typically found on a transformer nameplate:

• Apparent Power Rating (kVA/MVA): Indicates the maximum load the transformer can handle safely.
• Primary and Secondary Voltage Ratings: Define the input (primary) and output (secondary) voltages for which the transformer is designed.
• Frequency and Polarity: The frequency (usually 50 Hz or 60 Hz) ensures compatibility with the power system, while polarity is crucial for correct parallel operation and system connections.
• Maximum Ambient Temperature: Specifies the highest surrounding temperature in which the transformer can operate without overheating.
• Cooling Method: Details how the transformer is cooled, such as ONAN (Oil Natural Air Natural) or ONAF (Oil Natural Air Forced).
• Percentage Impedance: Represents the internal voltage drop under load, important for fault-level calculations and parallel operation.
• Manufacturer Details and Year of Manufacturing: Provide traceability and reference for service and support.
• Indian Standards (IS) and International Standards (IEC): Show compliance with established safety and performance standards.

Additional Details for Three-Phase Transformers:

• Winding Connection Diagram: Illustrates how the windings are interconnected (e.g., Delta, Star).
• Vector Group: Specifies phase displacement between primary and secondary, critical for system compatibility.
• Type of Insulating Oil: Indicates the grade of oil used for insulation and cooling.
• Transformer Weight: Includes total weight, oil weight, and core and winding weight, useful for transportation and installation planning.

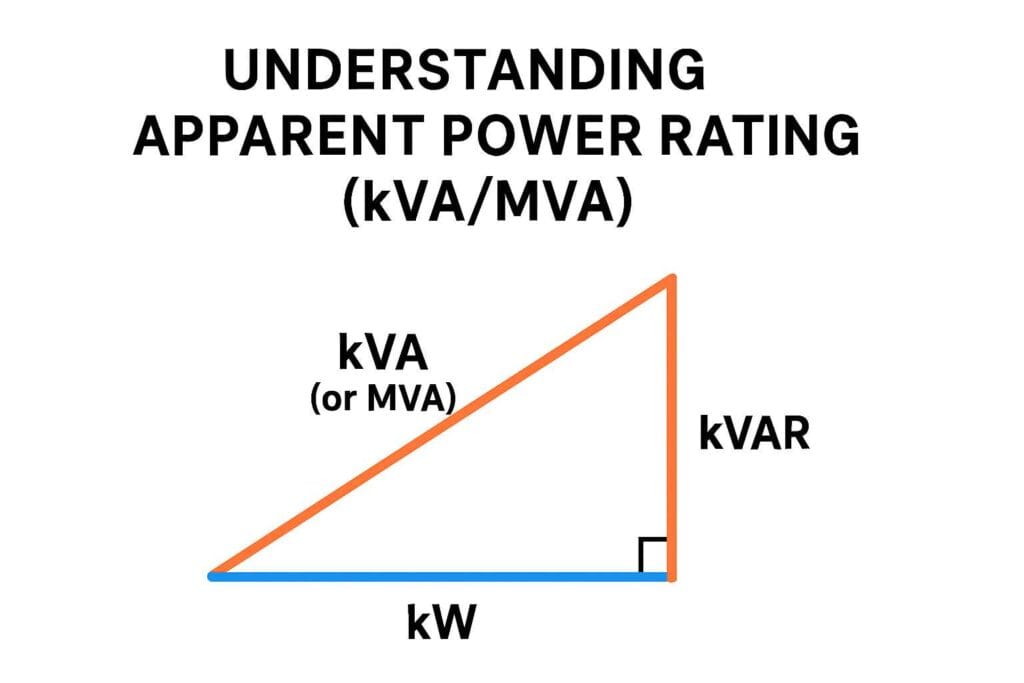

Understanding Apparent Power Rating (kVA/MVA)

The apparent power rating of a transformer, expressed in kilovolt-amperes (kVA) or megavolt-amperes (MVA), defines the maximum load it can safely carry without overheating or exceeding its design limits.

Meaning of kVA or MVA Rating

• A transformer is rated in terms of apparent power rather than real power.
• For example, a 100 kVA transformer means it can deliver up to 100 kilovolt-amperes of apparent power to the connected load under standard operating conditions.

Why Ratings are Expressed in Volt-Amperes (VA) and Not Watts (W)

Apparent Power Rating (kVA/MVA)

The apparent power rating is the most important specification. It shows the maximum safe load capacity.

• Real power (kW) depends on cosφ (power factor).
• Transformer losses depend only on voltage (iron loss) and current (copper loss).

That’s why transformers are rated in kVA instead of kW.

Formula for real power:

P = V × I × cosφ (watts)

But since cosφ is variable for different loads, manufacturers avoid using it in the rating.

• Transformer losses are primarily dependent on current (I) and voltage (V), not directly on power factor.
• Since the power factor (cos φ) varies depending on the load connected to the transformer, the actual real power (kW) delivered can change.
• By expressing ratings in kVA or MVA, manufacturers ensure that the rating is independent of the load’s power factor.

Relationship Between Real Power (kW), Apparent Power (kVA), and Power Factor

The relationship is given by:

Real Power (kW)=Apparent Power (kVA)×Power Factor (cos φ)

• Apparent Power (kVA): Product of RMS voltage and RMS current supplied by the transformer.
• Real Power (kW): Actual usable power consumed by the load.
• Power Factor (cos φ): Ratio of real power to apparent power, indicating how effectively electrical power is converted into useful work.

For example, if a 100 kVA transformer supplies a load with a power factor of 0.8:

Real Power=100×0.8=80 kW

This means the transformer can supply 100 kVA of apparent power, but only 80 kW of real power if the load has a power factor of 0.8.

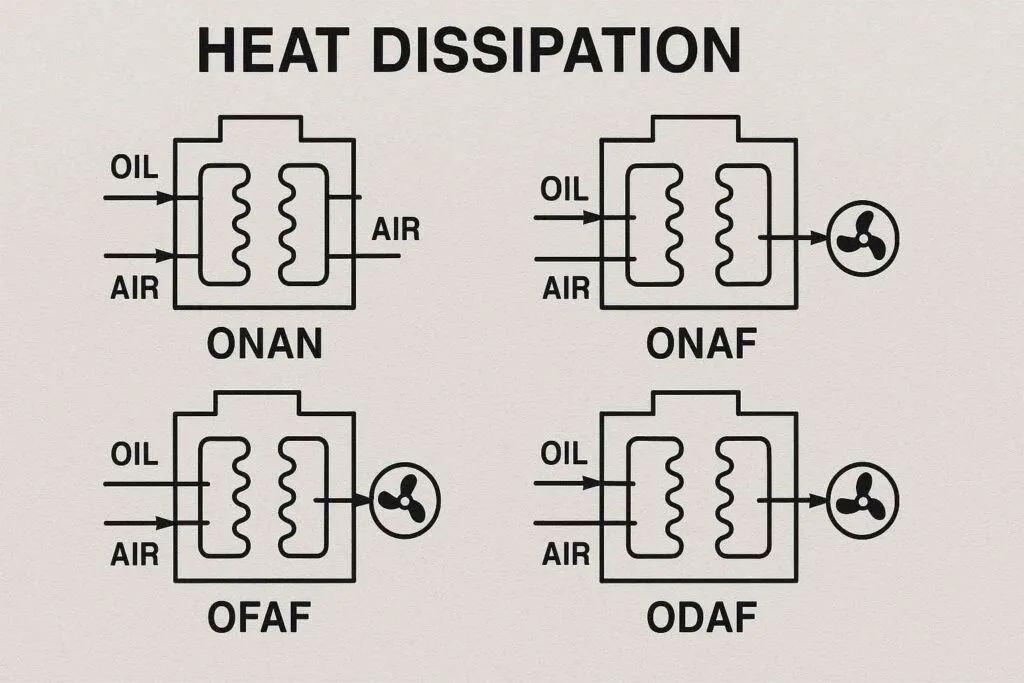

Heat Dissipation and Transformer Capacity

A transformer’s loading capacity is closely linked to how effectively it can manage and dissipate heat. When a transformer operates, electrical losses such as copper losses (I²R) in the windings and iron losses in the core generate heat. If this heat is not controlled, it can damage the insulation, reduce efficiency, and even shorten the transformer’s lifespan.

Transformer Loading Capacity and Heat Dissipation

• The maximum load a transformer can carry is limited by the maximum heat that can be safely dissipated.
• Overloading beyond rated capacity causes excessive temperature rise, leading to accelerated insulation aging and risk of failure.
• Therefore, heat dissipation capability directly defines a transformer’s capacity.

Role of Insulating Material

• The insulation system (solid, liquid, or gaseous) plays a critical role in determining how much heat a transformer can tolerate.
• Each class of insulating material has a specified temperature limit (e.g., Class A: 105°C, Class B: 130°C, Class F: 155°C).
• If the operating temperature exceeds this limit, insulation deteriorates rapidly, reducing transformer life.

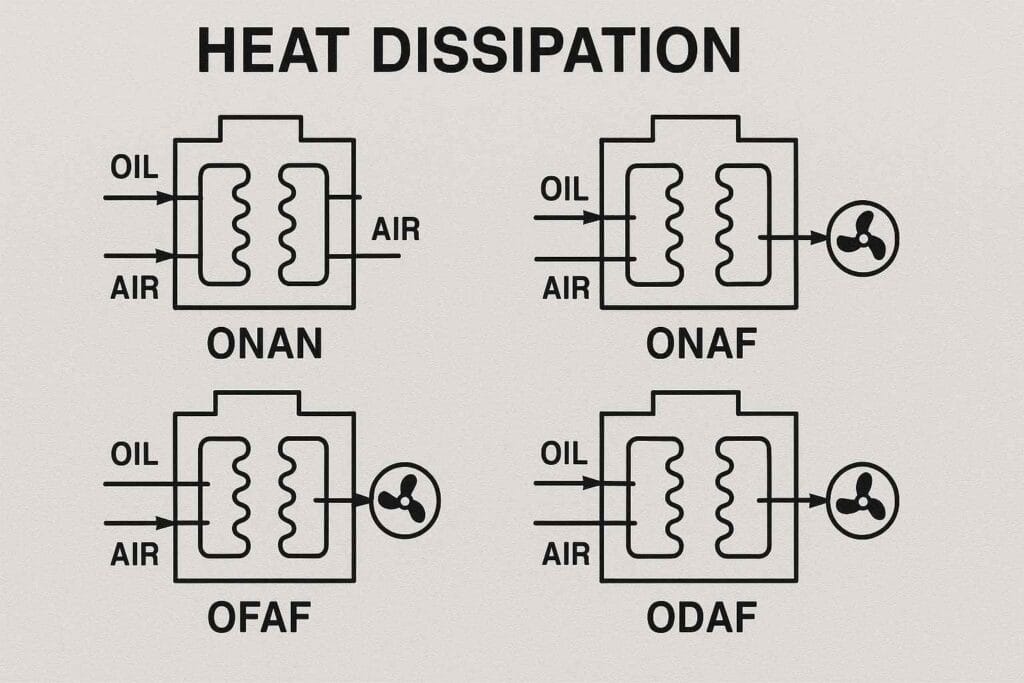

Cooling Arrangements for Heat Dissipation

To maintain safe operating temperatures, transformers use different cooling methods:

• AN (Air Natural): Heat is dissipated naturally to the surrounding air, suitable for small transformers.
• ONAN (Oil Natural Air Natural): Heat generated is transferred to oil, which circulates naturally and cools through tank radiators by natural air convection.
• ONAF (Oil Natural Air Forced): Forced air is blown over radiators using fans to increase heat dissipation.
• OFWF (Oil Forced Water Forced): Oil is pumped through heat exchangers cooled by circulating water, used for very large transformers.

By combining appropriate insulation and cooling methods, transformers can safely handle higher loads while maintaining reliability and extending service life.

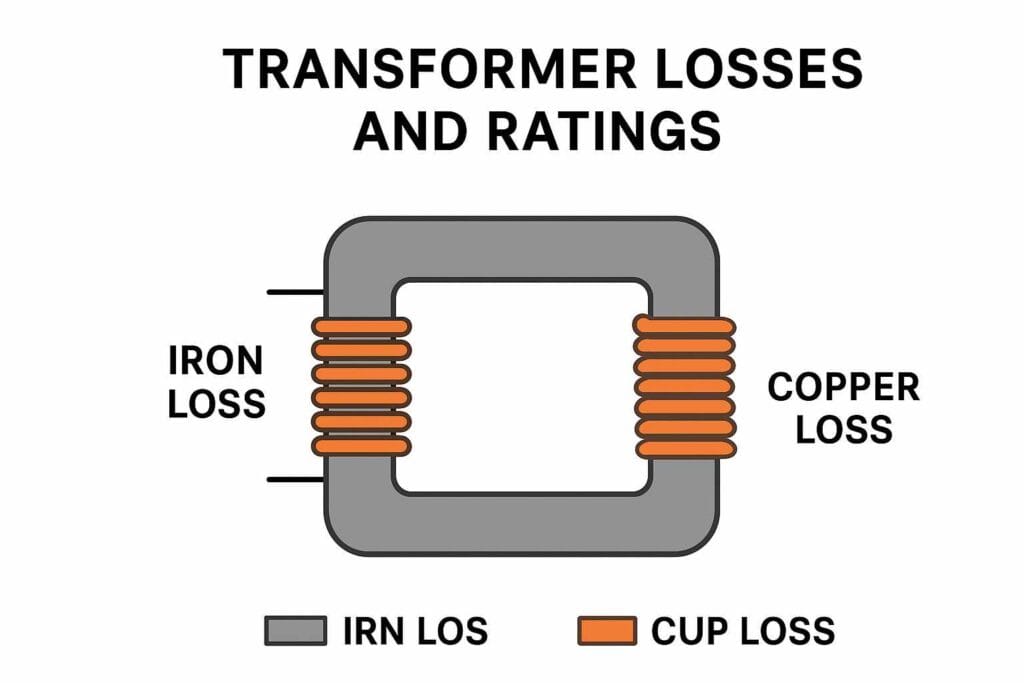

Transformer Losses and Their Role in Ratings

Transformer ratings are influenced by the losses that occur during operation. These losses not only determine the efficiency but also the safe operating limits of the transformer.

Iron Loss (Core Loss)

• Iron loss occurs in the transformer core due to hysteresis and eddy currents.
• It is almost independent of the load and mainly depends on the applied voltage and frequency.
• Since transformers are designed to operate at a constant frequency, the iron loss is considered nearly constant.

Copper Loss (Winding Loss)

• Copper loss occurs due to the resistance of the winding conductors when current flows through them.
• It varies with the square of the load current (I²R).
• At light load, copper losses are low, while at full load, copper losses are at their maximum.

Why Transformer Rating is Independent of Power Factor

• Transformer losses depend only on voltage (iron loss) and current (copper loss), not on the power factor of the load.
• The power factor affects the real power (kW) delivered, but it does not influence the heating effect in the transformer.
• Since heat dissipation is the primary limiting factor, ratings are given in apparent power (kVA/MVA) rather than real power (kW).

For example:

• A 100 kVA transformer can supply 100 kVA regardless of the load power factor.
• If the load has a 0.8 power factor, the transformer delivers 80 kW of real power.
• If the load has a 1.0 power factor, the same transformer can deliver 100 kW of real power.

Thus, transformer ratings are expressed in kVA/MVA to remain independent of load power factor variations.

Why Transformers are Rated in kVA, not kW

Transformers are universally rated in kilovolt-amperes (kVA) or megavolt-amperes (MVA) instead of kilowatts (kW). This practice has clear technical and practical reasons.

1. Iron and Copper Losses Are Not Dependent on Power Factor

• Iron Loss depends on the applied voltage and frequency.
• Copper Loss depends on the current flowing through the windings.
• Neither of these losses depends on the load’s power factor (cos φ).
• Since transformer heating and safe capacity are determined by these losses, the rating must be given in terms of voltage × current (VA) rather than watts.

2. Simplification of Rated Current Calculation

• Expressing the rating in kVA allows engineers to calculate the maximum allowable current at rated voltage easily.
• For example, for a 100 kVA, 11 kV/0.433 kV transformer:
  • LV side rated current = (100 × 1000) / (0.433 × √3) ≈ 133 A
  • HV side rated current = (100 × 1000) / (11 × √3) ≈ 5.25 A
• This simplifies design, protection, and cable sizing.

3. Practical Importance for Design and Application

• Loads connected to transformers may have varying power factors (e.g., motors, furnaces, lighting).
• If transformers were rated in kW, their usable capacity would vary with power factor, making ratings confusing and inconsistent.
• By using kVA, manufacturers provide a universal rating independent of load characteristics.

NOTE POINT

Transformers are rated in kVA, not kW, because their heating (losses) and loading limits depend only on voltage and current, not on power factor. This ensures consistency, simplifies design calculations, and makes the rating applicable across different load types.

Rated Current Calculations

The rated current of a transformer is the maximum current it can safely carry at its rated apparent power and voltage. It is calculated for both the primary and secondary windings based on the transformer’s kVA rating and operating voltage.

Formula for Full-Load (Rated) Current in a Single-Phase Transformer

• Primary Current (I₁):
  I₁ = (kVA × 1000) / V₁
• Secondary Current (I₂):
  I₂ = (kVA × 1000) / V₂

here:

• KVA = Transformer apparent power rating (kVA)
• V1 = Rated primary voltage (Volts)
• V2 = Rated secondary voltage (Volts)

Applicability

• The formula applies to both primary and secondary windings.
• Current values differ because they depend on the respective winding voltages.
• For three-phase transformers, the current calculation is slightly modified with a √3-factor.

Percentage Impedance and Voltage Regulation

Definition of Percentage Impedance

The percentage impedance of a transformer is the value of transformer impedance expressed as a percentage of the rated voltage. It indicates the amount of voltage drop that occurs in the transformer when it supplies full-load current.

Formula: %Z = (Impedance Voltage / Rated Voltage) × 100

Where:

• Impedance Voltage = The voltage required to circulate full-load current under short-circuit test conditions.
• Rated Voltage = Transformer’s rated secondary voltage.

Impact on Voltage Drop and Regulation

• A higher percentage impedance means a greater voltage drop under full-load conditions.
• Voltage regulation indicates how much the output voltage changes between no-load and full-load.

Formula for Voltage Regulation: % Regulation = [(No-Load Voltage – Full-Load Voltage) / No-Load Voltage] × 100

Example Calculation

• No-load secondary voltage = 433 V
• Impedance = 6.5%
• Voltage drop = (6.5 / 100) × 433 = 28.15 V
• Full-load secondary voltage = 433 – 28.15 = 404.85 V

% Regulation = [(433 – 404.85) / 433] × 100 ≈ 6.5%

Thus, the transformer’s percentage impedance directly defines its voltage drop and regulation under load conditions.

Maximum Ambient Temperature Significance

The maximum ambient temperature specified on a transformer’s nameplate defines the highest environmental temperature in which the transformer can safely operate without exceeding its thermal limits.

Importance:

1. Safe Operating Environment:
   • Ensures that the transformer can perform reliably in the surrounding environmental conditions without risk of overheating.
2. Protection from Overheating:
   • If the ambient temperature exceeds the rated value, the internal temperature of the transformer rises beyond safe limits, causing excessive heating.
3. Insulation Protection:
   • Insulating materials inside the transformer (oil, paper, epoxy) have specific thermal limits.
   • Higher ambient temperatures accelerate insulation aging, reducing transformer life expectancy.

Example:

• If a transformer is designed for a maximum ambient temperature of 40°C, and the load causes a temperature rise of 60°C, the winding temperature reaches 100°C.
• Operating above this range would shorten insulation life drastically and risk thermal breakdown.

Thus, the maximum ambient temperature rating is a crucial parameter that safeguards the transformer against overheating and ensures long-term reliability.

Practical Significance of Transformer Ratings

Transformer ratings are not just technical specifications—they serve as practical guidelines that ensure safe, reliable, and efficient usage in real-world applications.

1. Ensures Proper Transformer Selection

• Ratings help engineers select the right transformer for a specific application, whether for distribution networks, industrial machinery, or power plants.
• For example, a residential area may require a 200 kVA distribution transformer, while a large industry may need one rated in MVA.

2. Prevents Overloading and Premature Failure

• Operating beyond rated capacity causes excessive heating, insulation breakdown, and reduced service life.
• By adhering to ratings, users can avoid overloading, which is one of the leading causes of transformer failure.

3. Helps Maintain Efficiency and Safety

• Staying within rated limits minimizes energy losses (iron and copper losses).
• Proper rating ensures that the transformer operates at high efficiency, reducing operational costs.
• Correct ratings also prevent accidents like fire hazards or explosions, ensuring personnel and equipment safety.

Note point

Transformer ratings act as a safety boundary and a performance guide, enabling engineers and operators to choose, operate, and maintain transformers effectively while ensuring efficiency, reliability, and long service life.

Practical Importance of Transformer Ratings

Transformer ratings ensure:

• Correct Selection: Prevents undersized or oversized transformers, ensuring compatibility with load requirements.
• System Safety: Avoids overheating, insulation breakdown, and potential fire hazards by keeping operation within safe limits.
• Efficient Operation: Maintains good power quality, minimizes technical losses, and ensures proper voltage regulation.
• Reliability: Provides stable and long-lasting performance, reducing maintenance costs and unplanned outages.

Conclusion

The transformer nameplate serves as a vital reference, providing all the essential ratings and parameters such as apparent power (kVA/MVA), primary and secondary voltage, frequency, percentage impedance, cooling method, maximum ambient temperature, vector group, and insulation details. These values define the operational boundaries within which a transformer can function safely and efficiently.

For engineers, electricians, and students, understanding these ratings is crucial:

• Engineers rely on them for proper design, selection, and system integration.
• Electricians use them to ensure safe installation and maintenance.
• Students learn from them to grasp real-world applications of electrical engineering concepts
