Lightning Earthing vs Normal Earthing – Deep Practical Guide.

Lightning Earthing and Normal Earthing differ mainly in the type of current they handle. Normal Earthing is used to discharge low-voltage fault currents using G.I./copper rods with charcoal–salt filling, while Lightning Earthing is specially designed to handle high-energy lightning surges using thick copper rods, bentonite compounds, multiple interconnected electrodes, and a lightning arrestor. Normal earthing targets ≤5 Ω resistance, whereas lightning earthing aims for ≤1 Ω to ensure fast, safe dissipation of surge currents.

What is the difference between Lightning Earthing and Normal Earthing?

Answer:
Lightning Earthing protects against high-voltage, high-current surges (lightning strikes). It uses thick copper rods, bentonite filling, and a grounding mesh.
Normal Earthing safely carries low-voltage fault currents into the ground, using G.I. pipes or copper rods with a charcoal–salt mixture.

Question: When is Lightning Earthing required?

Answer:
Lightning Earthing systems are essential for high-rise buildings, industrial plants, telecom towers, and areas prone to frequent lightning.

Question: What should be the resistance value in Normal Earthing?

Answer:
For residential systems, the target resistance should be ≤ 5Ω, and for industrial systems, ≤ 1Ω.

Question: What practical steps are followed in Lightning Earthing?

Answer:

• Install thick copper rods in series or parallel
• Use bentonite or a chemical compound filling
• Install a water-recharge pipe
• Grounding mesh (optional but recommended)
• Connect the lightning arrestor to the electrical panel

Introduction

Earthing is one of the most important elements of electrical safety.
A properly designed earthing system protects from electric shocks, safeguards equipment, and ensures system reliability.
However, Normal Earthing and Lightning Earthing differ in purpose, techniques, and design parameters.

This guide explains both types in detail, along with practical techniques and construction guidelines.

🔹 1️⃣ Normal Earthing

Purpose

The main purpose of normal earthing is:

• To safely discharge fault current into the earth
• To protect humans and equipment from electric shock and damage

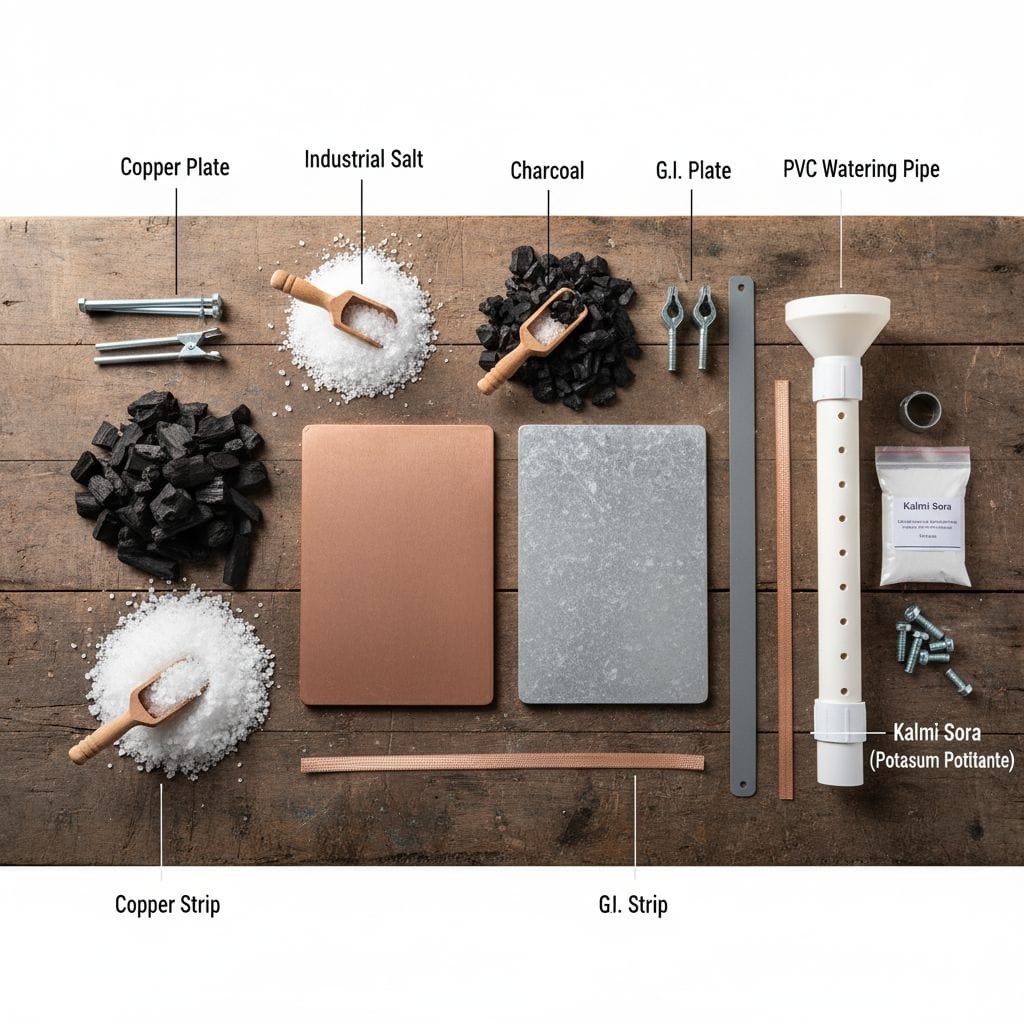

Key Techniques

• Electrode Type: G.I. pipe, copper rod, or plate
• Depth: 2–3 m for residential, up to 3 m for industrial
• Filling Materials: Charcoal + salt + bentonite
• Watering System: PVC/G.I. pipe to maintain moisture

Real Practical Tips

• Keep the electrode vertical and stable
• Add proper charcoal and salt layers around the pit
• Perform periodic water recharging
• Keep joints and strips tight and corrosion-free
• Resistance target: ≤5 Ω (home), ≤1 Ω (industrial)

Applications

• Residential buildings
• Small industries
• Street lighting
• Generators, motors, transformer grounding

🔹 2️⃣ Lightning Earthing

Purpose

Lightning earthing is designed specifically to protect against direct lightning strikes.
Lightning carries extremely high voltage and thousands of amperes — something normal earthing cannot handle.

Electrode & Pit Design

Real Practical Tips

• Use thick copper rods for high conductivity and corrosion resistance
• Use multiple rods in series/parallel
• Bentonite and chemical compounds maintain low resistance
• The lightning arrestor must be connected properly
• Inspect regularly after storms
• Grounding mesh improves current distribution

Applications

• High-rise buildings
• Industrial plants
• Telecom towers
• Transformer yards
• Lightning-prone zones

🔹 3️⃣ Lightning Earthing vs Normal Earthing Practical Differences & Techniques

Current Capacity

• Normal Earthing: Few amperes
• Lightning Earthing: Thousands of amperes
  Tip: Use thicker, multiple rods for high surge protection.

Electrode Network

• Normal: A single rod/pipe is enough
• Lightning: Multiple interconnected rods
  Tip: Keep rods 2–3 m apart in high-resistivity soil.

Filling Materials

• Normal: Charcoal + salt
• Lightning: Bentonite + chemicals + copper mesh
  Tip: Use moisture-retaining compounds in dry regions.

Maintenance

• Normal: Weekly water check
• Lightning: Inspect after every storm

Resistance Target

• Normal Earthing: ≤5 Ω
• Lightning Earthing: ≤1 Ω

🔹 4️⃣ Combined Approach – For Homes & Industries

Lightning Earthing vs Normal Earthing: Combined Approach

Residential Buildings

Use a combination of:

• Normal Earthing
• Lightning Arrestor
• Dedicated Lightning Earthing Rod

Industrial/Critical Systems

• Separate lightning earthing pits
• Chemical electrodes
• Bentonite and water recharge system

Practical Tips

• Use low-resistance networks in lightning-prone areas
• Ensure brazed or anti-corrosion bolted connections
• Keep the watering pipe functional to maintain moisture

🧠 Step-by-Step Lightning Earthing Construction Summary

🔹 Conclusion

Lightning Earthing and Normal Earthing: final thought

Normal Earthing:

For fault current and low-voltage protection.

Lightning Earthing:

For extremely high voltage and high surge current protection.

Best Practice:

Use both systems together for the best protection.

Practical Insight:

Regular inspection, water recharge, corrosion check, and tight joints ensure a safe, reliable, and long-lasting earthing system.

Lightning-prone areas must use proper chemical/rod-based lightning earthing for maximum safety.
