GI Earthing vs Copper Earthing:

The main difference is that GI earthing (Galvanized Iron) is a low-cost option but prone to corrosion with medium conductivity, while constant Copper earthing provides very high conductivity, long lifespan, and stable low resistance. GI earthing is ideal for homes and small loads, whereas Copper earthing is recommended for industries, hospitals, data centers, and heavy-load systems due to its superior performance and durability.

Introduction

The biggest question in electrical earthing is whether GI earthing is better than Copper earthing.
Both serve the same purpose, but there is a big difference in performance, lifespan, conductivity, and cost.
This article explains, from a field-experience perspective, which earthing to choose, where to use it, and why.

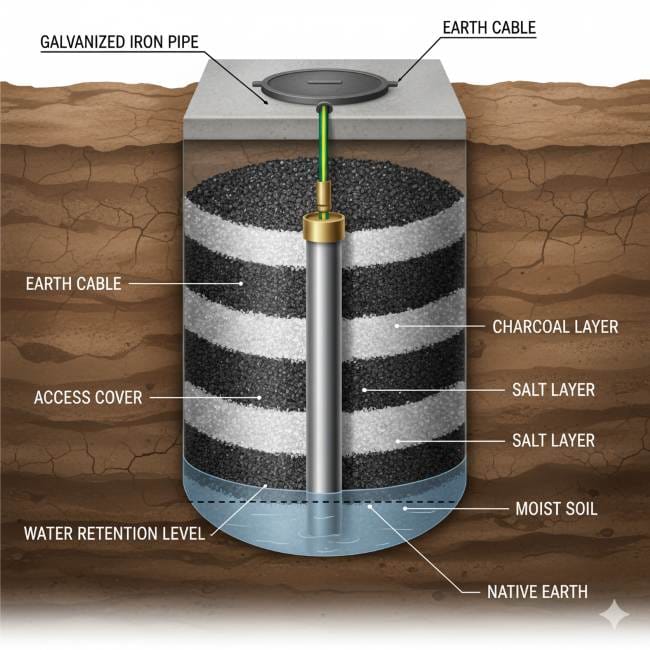

⭐ 1. What is GI Earthing?

GI Earthing uses Galvanized Iron (G.I.) rods, strips, or plates with zinc coating.
This earthing system is the most common and economical choice for homes, shops, and normal load applications.

✔ Practical Notes:

• The conductivity of GI is lower than copper but sufficient for home wiring.
• Zinc coating protects against rust but can corrode faster in highly acidic soil.
• Ground resistance may increase after 1–2 years → regular maintenance is needed.

✔ Where it is used:

• Domestic buildings
• Shops & small commercial units
• Gardens & low-load areas
• Auxiliary transformer earthing

⭐ 2. What is Copper Earthing?

Copper Earthing uses 100% pure copper or copper-bonded rods installed in the ground.
Copper’s electrical conductivity is about 6 times higher than GI, making it a high-performance earthing.

✔ Practical Notes:

• Corrosion-free: Copper reacts minimally with soil.
• Low resistance stability: Strong conductivity even with minimal moisture.
• Lifespan: Easily lasts 25–40 years.

✔ Where it is used:

• Factories and high-load industries
• Data centers, servers
• Hospitals
• High-rise buildings
• Generator and UPS earthing
• Lightning protection systems

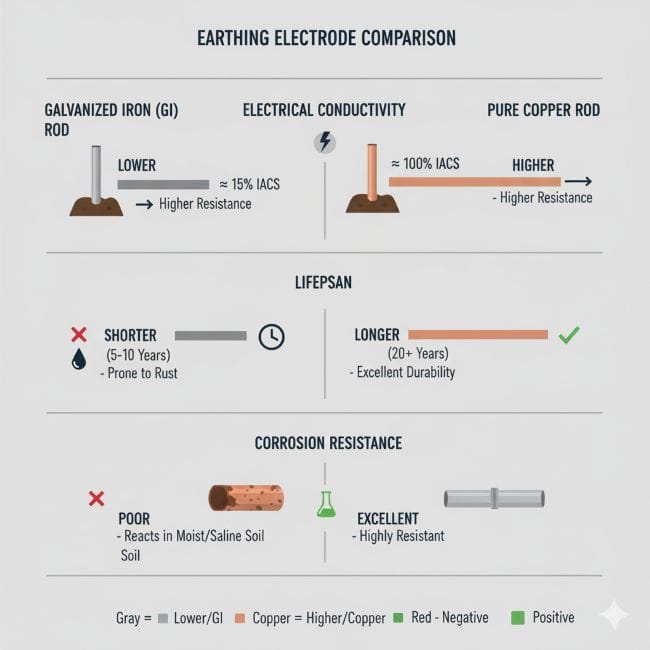

⭐ 3. GI Earthing vs Copper Earthing: Deep Comparison

⭐ 4. Why Choose GI Earthing? (Pros & Cons)

✔ Advantages:

• Affordable & cost-effective
• Easy installation
• Sufficient for the domestic load
• Readily available

❌ Disadvantages:

• Prone to corrosion
• Shorter lifespan
• Resistance increases over time
• Not suitable for high-load industries

⭐ 5. Why Choose Copper Earthing? (Pros & Cons)

✔ Advantages:

• Lowest resistance
• Long lifespan
• Ideal for heavy loads and sensitive equipment
• Stable performance in moisture
• Can handle high fault current

❌ Disadvantages:

• High cost
• Risk of theft
• Fake copper rods exist in the market

⭐ 6. When to Choose Which Earthing System? (Expert Recommendation)

🏠 Home / Domestic Load
→ GI Earthing
Budget-friendly, practical, easy maintenance

🏭 Industry / Factory / Commercial Building
→ Copper Earthing
Stable resistance, long life, high-load performance

🌧 Wet, saline, or coastal areas
→ Copper Earthing (Best)
GI corrodes quickly

⚡ Lightning Protection System
→ Copper Earthing
Can withstand high fault current

⭐ 7. Real Practical Advice to GI Earthing vs Copper Earthing

• Very moist soil → choose Copper rod
• Dry soil → GI rod also performs well
• Mixed earthing is common in high-rise buildings (GI for body earthing, Copper for equipment)
• Rod earthing is more efficient than plate earthing (GI or Copper)
• Always keep a watering arrangement near the earthing pit
• Thicker electrodes → longer lifespan

⭐ 8. Final Verdict on GI Earthing vs Copper Earthing

• Low Budget + Home Safety → GI Earthing Best
• Long Life + Professional Performance → Copper Earthing Best
• Heavy Machines + Critical Load → Only Copper Earthing

Conclusion

Both GI earthing and Copper earthing have their own uses.

• If you are looking for budget-friendly + normal load → GI Earthing is perfect.
• If you need high safety + low resistance + long lifespan → Copper Earthing is the right choice.
