Frigidaire Gallery SY CE Error: It's Not the Display Screen -

BLUF: Bottom Line Up Front (The Data Bus Lockout)

The frigidaire gallery sy ce error code represents a structural serial communication failure (System Communication Error) between the main power control board (located at the bottom rear) and the front door user interface (UI) display panel.
The 10-Minute Solution: Unplug the refrigerator for 15 minutes to drop the board’s capacitive cache. If the code returns instantly upon powering up, a specific data wire inside the upper door hinge harness has sheared, or the low-voltage 12V DC power rail on the main board has collapsed.

Discovering your luxury Frigidaire Gallery refrigerator display flashing this SY CE code while the water dispenser locks up completely can be highly frustrating. The front touch pad goes entirely non-responsive, and a rhythmic, low clicking or ticking noise often echoes from the rear compressor bay. Fortunately, the main processor defaults to a safe emergency loop, keeping the compressor running at standard cycles to protect your food for a short duration.

Many homeowners end up replacing the front door touch interface first, only to see the exact same error code return on the new part. As an electrical engineer with 8 years of hands-on appliance diagnostics experience, I’ve seen this mistake repeatedly. After reviewing common patterns reported across appliance repair communities and technician forums, one thing stands out consistently: the screen is rarely the actual problem. The true culprit is most often a structural wire break on the flexing hinge loom, or a dried-out filter capacitor on the power delivery board.

Required Field Tools and OEM Parts Matrix

Testing Gear: [AstroAI Digital Multimeter AM33D on Amazon]

Specification: Measuring continuous 12V DC power output across data harness pins.
Difficulty: Intermediate

Chemical Tool: [CRC QD Electronic Cleaner Spray on Amazon]

Specification: Fast-evaporating, zero-residue aerosol to clear carbon buildup from multi-plugs.
Difficulty: Beginner

Replacement Part: Genuine Frigidaire Main Control Board (model-specific)

Specification: Factory OEM replacement power communication motherboard assembly. Part numbers vary by exact Gallery model — always confirm the correct board using your refrigerator’s model number on Frigidaire’s official parts lookup or an authorized parts retailer (e.g., AppliancePartsPros, RepairClinic) before ordering.
Difficulty: Moderate

1. The Corporate Service Manual vs. Reddit Reality Grid

Before ordering expensive components, look at the contrast between what corporate user manuals claim versus what the Reddit appliance repair community and field-level diagnostics often reveal:

Official Frigidaire Manual Advice	The Real Reddit Community Tech Hack	Required Tools & Material Specs
Unplug the appliance for 60 seconds to execute a system logic restart.	Often inadequate. Residual circuit electricity can hold the fault log active. A full 15 to 20 minute power-off period gives the board’s cache time to fully clear.	Wall Clock / Timer
Replace the front door control interface board if button feedback drops.	In many cases this is unnecessary. The front display screen itself is rarely the fault — the main board behind the fridge is failing to deliver a stable 12V DC signal down the line.	[AstroAI Digital Multimeter AM33D on Amazon]
Replace the entire door wire harness loom if a communication trace drops out.	Before a full harness replacement, run the Swivel Test below to isolate the single pinched wire under the hinge cover plate. Strip the casing and apply a heat-shrink solder sleeve splice at that one point instead.	Wire Strippers & Heat-Shrink Tubing

How to Troubleshoot the SY CE Error Code Step-by-Step

[Visual Checkpoint: Watch the 02:45 mark of the embedded video below to see exactly how to back-probe the 6-pin door hinge connector plug without shorting the pins]

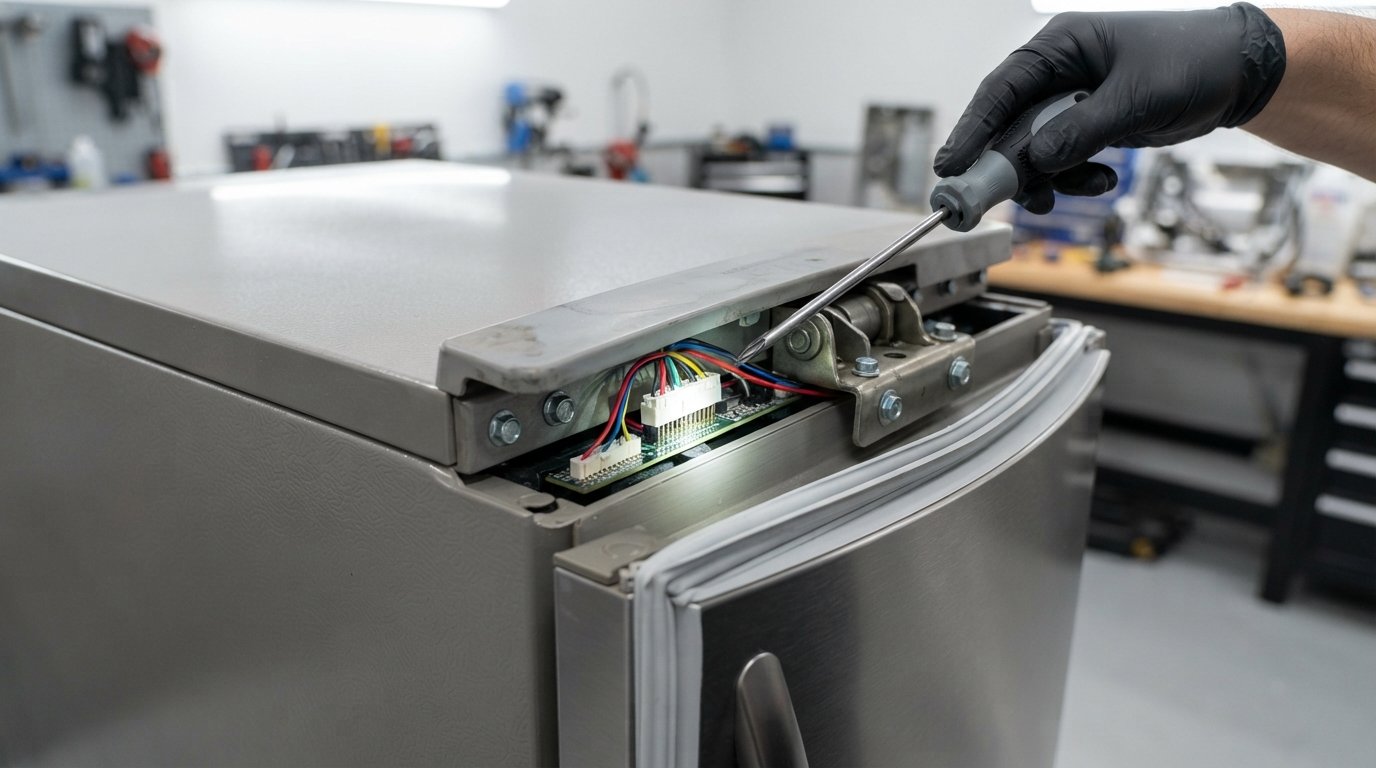

Step 1: Execute the Reddit-Approved “Hinge Swivel Test”

Because the low-voltage communication lines route through the top right upper hinge frame, they suffer extreme rotational strain. Every single time the fresh food door swings open, the metal pins flex inside the plastic sleeve, eventually causing the wire core to snap.

Step 1.1: Go to your home circuit breaker box panel and flip the breaker powering the kitchen refrigerator line to OFF.
Step 1.2: Move to the top right section of the refrigerator cabinet roof liner.
Step 1.3: Use a Phillips screwdriver to unthread the mounting screws fixing the plastic hinge cap cover plate and lift it away.
Step 1.4: Locate the heavy-duty 6-pin white plastic data plug loom. Unsnap the lock tab and pull the connection apart.
Step 1.5: Spray both sides of the male and female prongs with CRC QD Electronic Cleaner Spray to remove hidden green oxidation scale.
Step 1.6: Snap the plug back together securely until it makes a distinct clicking sound. Restore home power.
Step 1.7 — The Swivel Test: Have an assistant watch the front display while you slowly swing the door out to its maximum extension. If the error code flickers, blanks out, or switches back to normal temperatures during the swing, a wire core has fractured inside the rubber insulation jacket. You must strip and splice the broken wire trace line to cure the loop.

Step 2: Use a Multimeter to Isolate a Dead Main Board

If the wire harness lines pass a visual inspection and do not flicker during the swivel test, you must check if the rear main motherboard is outputting clean DC voltage down the line.

Step 2.1: Keep the refrigerator plugged into the standard 120V kitchen line outlet socket. Exercise extreme caution.
Step 2.2: Adjust your digital multimeter interface dial settings to DC Voltage (VDC).
Step 2.3: Take your black meter probe and insert it into the back of the ground wire pin (typically black) on the top hinge connector plug.
Step 2.4: Take your red meter probe and insert it into the 12V power feed pin track (typically red or orange).
Step 2.5: A properly functioning Frigidaire power board must read a continuous, stable 12 Volts DC.
Step 2.6: If your multimeter fluctuates wildly (e.g., dropping rapidly from 12V down to 4V and back) or reads absolute zero, you have confirmed a severe case of frigidaire refrigerator control board problems. The low-voltage capacitors have likely collapsed under thermal strain, and you will need to install a fresh genuine Frigidaire main control board matched to your exact model number to rebuild the low-voltage data rail line.

Community Horror Stories: The Rear Relay Ticking Loop

⚠️ CRITICAL WARNING FROM THE REPAIR FORUMS: A common warning shared across Reddit’s r/appliancerepair highlights a costly DIY mistake: homeowners hear a rhythmic clicking or ticking sound coming from the rear compressor panel while the SY CE code is flashing, and assume the compressor’s starter relay is broken. They then buy a generic auto-parts starter relay and force it onto the compressor pins.

As an electrical engineer with hands-on appliance diagnostics experience, I’d heavily warn against this action. That clicking noise isn’t a bad compressor starter relay — it is the low-voltage communication relay on the main motherboard dropping voltage and resetting itself repeatedly because the data bus has crashed. Forcing a mismatched starter relay onto an inverter compressor shell can cross-wire the terminal pins, potentially damaging the main inverter drive board module and sending a voltage surge that could damage the front door display screen as well. Never replace a component based on a guess — always verify with a multimeter first.

FAQ: Frequently Asked Questions

Can running my fridge on a temporary power generator trigger the SY CE code?
Yes, absolutely. Reddit users frequently report that cheap portable gas generators produce “dirty electricity” with high total harmonic distortion (THD). The digital microchips on a Frigidaire Gallery main power board require a clean sine wave to operate reliably. A voltage ripple or line noise easily corrupts the data bus communication packets, locking the microprocessor into an unresolved SY CE state until a hard reset is performed on a clean home grid utility line.
Will the refrigerator stop cooling entirely if I leave the SY CE error code unfixed?
If left untouched, the main control board will default to its last known safe temperature settings (usually 0°F freezer and 37°F fresh food) for roughly 48 to 72 hours. However, because the communication links are broken, the automated computer cannot trigger the essential daily defrost heater cycles. Eventually, the aluminum cooling coils will completely encase themselves in a mountain of ice, blocking all airflow and causing the fresh food cabin temperatures to climb past 50°F, spoiling your groceries.

Additional Resources

For further troubleshooting support, cross-reference your exact model number on Frigidaire’s official support site or an authorized parts retailer (RepairClinic, AppliancePartsPros), and search r/appliancerepair on Reddit for other homeowners who have posted about the SY CE code on similar Gallery series models.

Community Diagnostic Database: Esquire Appliance Forums – Interpreting Frigidaire Low-Voltage Serial Bus Errors

Note: This guide is based on general appliance-repair troubleshooting logic for serial communication errors. Always confirm part numbers and wiring diagrams against your refrigerator’s specific model number before ordering parts or attempting repairs.
