What is an Electronic Timer?
An Electronic Timer is a device that uses an electronic circuit to generate a time delay.
It is generally of the ON-Delay type, meaning that after receiving an input signal, the output becomes active after a certain delay period.
How many types of Electronic Timers?
There are five main types of Electronic Timers — ON-Delay, OFF-Delay, Interval, Cyclic, and Digital Timer.
These timers are used for time delay control in various industrial applications.
Construction of an Electronic Timer:
It consists of a step-down transformer, rectifier diodes, an RC charging circuit, an SCR, and a relay coil.
The RC network sets the delay time (t = R × C), the SCR controls conduction, and the relay activates the output after the preset delay.
Working Principle of Electronic Timer:
When powered ON, the capacitor charges through the resistor. Once its voltage triggers the SCR, the relay coil energizes and activates the output. The delay depends on the resistor value — higher resistance gives a longer delay. When power is OFF, the circuit resets automatically.
Applications of Electronic Timer:
Used in industrial automation, home appliances, lighting control, electronics projects, and automobiles for precise timing, delay, and sequence control operations.
Table of Contents
Introduction
An Electronic Timer is a modern time-controlling device that measures, delays, or sequences operations using electronic circuits instead of mechanical parts. Due to its accuracy, reliability, and flexibility, it is widely used in industries, automation systems, and educational/DIY projects.
What is an Electronic Timer?
An Electronic Timer controls the operation of a circuit or system for a predefined period of time. It typically generates a precise time delay with the help of resistors (R), capacitors (C), and integrated circuits (ICs) such as 555 timers, comparators/op-amps, or microcontrollers.
Unlike mechanical timers, it has no moving parts, making it durable and low-maintenance.

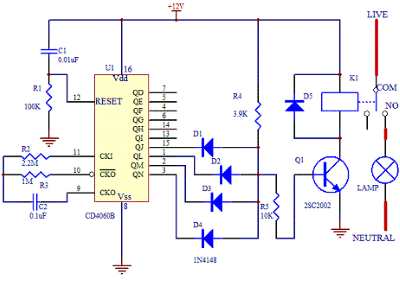

Construction of an Electronic Timer

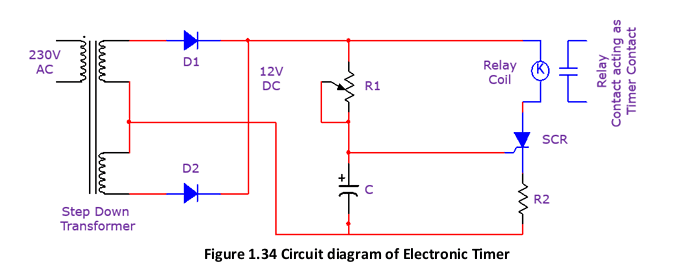

The figure shows a simple SCR (Silicon Controlled Rectifier)-based electronic timer circuit.
This circuit produces a time delay using a combination of an RC charging network and a relay coil.
The main components are described below 👇
🔹 1️⃣ Step-Down Transformer
It steps down the main supply voltage (230V AC) to around 12V AC, allowing the circuit to operate safely at a lower voltage.
🔹 2️⃣ Diodes D₁ and D₂ (Rectifier Diodes)
These diodes convert AC voltage into DC voltage (rectification).
After rectification, the circuit receives around 12V DC, which powers the SCR and relay coil.
🔹 3️⃣ RC Charging Circuit
This section includes a resistor (R) and a capacitor (C).
When the circuit is powered, the capacitor charges slowly.
The time taken for the capacitor to charge defines the delay time.
🧮 Formula:
t = R × C (where R = resistance, C = capacitance)
🔹 4️⃣ SCR (Silicon Controlled Rectifier)
This is the main control component of the circuit.
When the capacitor’s voltage reaches the gate triggering voltage of the SCR, it turns ON (conducting mode).
Once triggered, the SCR allows current to flow through the load (relay coil).
🔹 5️⃣ Timer Relay Coil
Connected in series with the SCR.
When the SCR conducts, the relay coil gets energized, causing its contacts (NO) to close, which activates the output circuit.
⚡ Working Principle
1️⃣ Power ON:
When the main switch is turned on, 12V DC is supplied to the RC circuit, and the capacitor starts charging.
2️⃣ Capacitor Charging:
As time passes, the capacitor voltage increases.
Once it reaches the SCR gate threshold, the SCR triggers and begins conducting.
3️⃣ SCR Conduction:
When the SCR turns ON, the relay coil is energized, and its Normally Open (NO) contacts close, turning ON the output circuit.
4️⃣ Time Delay Adjustment:
The delay can be adjusted by changing the variable resistor (R) value.
- Increasing R → Longer charging time → Longer delay
- Decreasing R → Shorter charging time → Shorter delay
5️⃣ Power OFF:
When the supply is turned off, the capacitor discharges, the SCR turns OFF, and the relay returns to its normal (rest) position.
⏲️ Step-by-Step Summary
| Step | Description |
|---|---|
| 1️⃣ Power ON: | When the main switch is ON, the RC circuit receives supply. |
| 2️⃣Capacitor Charging: | The capacitor starts charging slowly. |
| 3️⃣ SCR Conduction | When voltage is sufficient, SCR triggers and enters conducting mode. |
| 4️⃣Time Delay Adjustment | Once SCR is ON, the timer relay coil is energized and the output circuit activates. |
| 5️⃣ Power OFF | The variable resistor adjusts the time delay. |
| 6️⃣ | When power is turned OFF, contacts return to their normal state. |
Conceptual Block Diagram
Input Trigger → RC/Clock Generator → Threshold/Comparator → Logic/Driver → Output (Relay/MOSFET/SSR)
Power Section: Step-down/SMPS + Rectification + Filtering
Timing Network: R, C, Potentiometer (for adjustable delay)
Control IC: 555 / Op-Amp / MCU
Output Stage: Relay coil, TRIAC/SSR, or transistor driver
Protection: Diode (Flyback), Snubber, Fuse
Types of Electronic Timers
Electronic Timers are classified based on their operating principle and application. Each type is suitable for a specific industrial or automation system where time control is required.

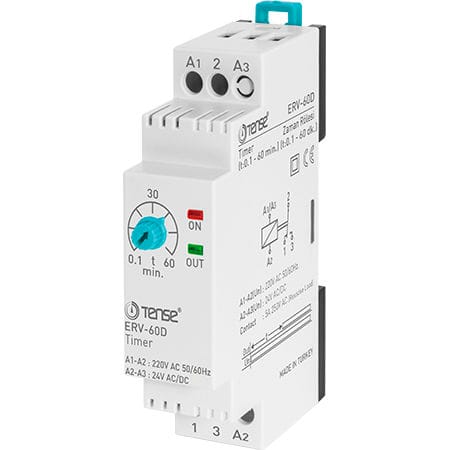

1️⃣ ON-Delay Timer
Working Principle:
When an input signal is applied, the timer waits for a preset time delay (Delay Period) before turning the output ON.
It is the most common and widely used type of timer.
Example:
Providing a few seconds of delay before starting a motor to ensure safety checks or load stability.
2️⃣ OFF-Delay Timer
Working Principle:
When the input signal is removed, the output does not turn OFF immediately. Instead, it stays ON for a preset time delay and then turns OFF.
Example:
Keeping a cooling fan or motor running for a few seconds after power is turned off to cool down the system.
3️⃣ Interval Timer
Working Principle:
This timer provides an output only for a fixed time interval and then automatically resets itself.
Example:
Keeping a device ON for 10 seconds and then turning it off automatically.
4️⃣ Cyclic Timer
Working Principle:
A cyclic timer continuously repeats ON and OFF cycles as long as power is supplied.
Example:
Used in traffic light or flashing signal systems where lights turn ON and OFF repeatedly at fixed intervals.

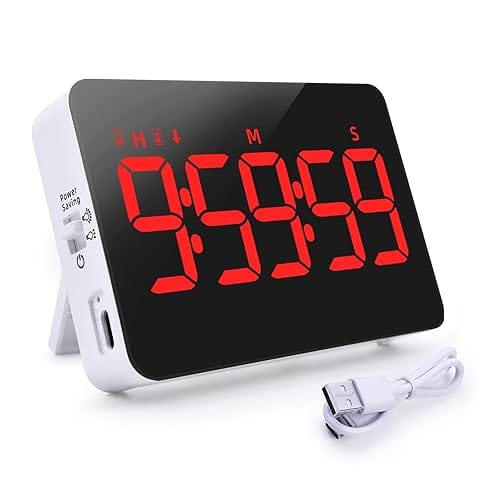

5️⃣ Digital Timer
Working Principle:
This timer is based on a microcontroller or digital IC.
It can be programmed precisely and supports multiple timing functions.
Example:
Used in microwave ovens, washing machines, CNC machines, PLC systems, and automation panels.
⚙️ Summary Table
| Timer Type | Working Principle | Common Applications |
|---|---|---|
| ON-Delay Timer | Turns ON after a delay once input is received | Machine start delay, motor control |
| OFF-Delay Timer | Turns OFF after a delay once input is removed | Fans, motors, post-run operations |
| Interval Timer | Provides output for a fixed period only | Pressing, cutting, temporary activation |
| Cyclic Timer | Repeats ON–OFF cycles continuously | Light flashing, testing systems |
| Digital Timer | Programmable and highly accurate | Home & industrial automation |
Main Components of Electronic Timer
An Electronic Timer is a device that generates a precise time delay through an electronic circuit. The main components are listed below:
🔸 Key Components
1️⃣ Resistor:
Controls the charging time of the capacitor.
By changing the resistor value, the time delay can be adjusted.
2️⃣ Capacitor:
Stores electric charge and determines the duration of the delay.
The product of R×C in the RC network defines the timing period.
3️⃣ IC (e.g., NE555):
Acts as the control unit of the circuit that manages timing and triggering.
It provides the output signal based on the charging/discharging cycle of the capacitor.
4️⃣ Transistor / Relay:
Switches or controls the load through the timer output.
Amplifies small control signals to drive high-power devices like motors or lamps.
5️⃣ Power Supply:
Provides the required DC voltage to the circuit.
Usually operates on 5V to 24V DC supply.
🌟 Advantages of Electronic Timer
✅ High Accuracy:
Electronic circuits provide stable and precise time delays.
✅ No Moving Parts:
No mechanical wear and tear, making it durable and maintenance-free.
✅ Compact Size:
Small in size, so it can easily fit in space-limited devices.
✅ Programmable:
Digital or microcontroller-based timers can be custom-set as per requirements.
✅ Energy Efficient:
Consumes very low power, making it an energy-saving option.
Applications of Electronic Timer
The Electronic Timer is used in many areas where precise time control is required. Below are its main applications:
🔹 1️⃣ Industrial Automation
- Used for sequence control in conveyor belts, machines, and production processes.
- Helps in timing control for motor start-stop, packaging, filling, and temperature control systems.
🔹 2️⃣ Home Appliances
- Used in washing machines, microwave ovens, air conditioners, and rice cookers for time-based operation.
- It automatically turns the appliance ON or OFF after a preset time.
🔹 3️⃣ Lighting Control
- Used for automatic ON/OFF operation in street lighting and building automation systems.
- A digital timer can control lights according to sunrise and sunset timings.
🔹 4️⃣ Electronics Projects
- Used in delay circuits, pulse generation, and timing control experiments.
- Highly useful for educational labs and student DIY projects.
🔹 5️⃣ Automobile Applications
- Used in wipers, indicators, and delay relay control circuits.
- Also applied in headlight auto-delay, power window timing, and alarm systems.
⚙️ How to Select the Right Electronic Timer
To select the right timer, the following points should be considered 👇
1️⃣ Required Time Range: Decide whether control is needed in seconds, minutes, or hours.
2️⃣ Type Selection: Choose between analog or digital timers based on your application.
3️⃣ Operating Voltage: Select according to the system voltage (5V, 12V, 24V, 230V) and load capacity.
4️⃣ Reset & Programming Options: Check if the timer has auto-reset or custom time programming features.
5️⃣ Environmental Conditions: Choose a timer with a suitable IP rating for your temperature, humidity, and dust conditions.
1. What is the main function of an Electronic Timer?
It keeps a circuit or device ON or OFF for a specific period of time.
Which IC is most commonly used in timer circuits?
The 555 Timer IC is the most popular and widely used timer.
What is the difference between a mechanical timer and an electronic timer?
A mechanical timer uses gears and springs, whereas an electronic timer uses electronic components, making it more accurate and reliable.
Can an electronic timer be used in automation systems?
Yes, an electronic timer is ideal for precise ON/OFF control in automation systems
🧠 Conclusion
An Electronic Timer is a very useful and simple circuit that works through a combination of an SCR, RC circuit, and relay coil.
Its time delay depends on the RC constant (R × C), and the delay period can be adjusted by changing the resistor (R) value.
This type of timer is commonly used in industrial automation, process control, and circuit delay applications.
