Introduction

1. Brief Overview of Transformer Testing Methods

Transformers are essential electrical machines that require proper testing to ensure reliable operation, efficiency, and safety. Several testing methods are used to analyze transformer performance, such as:

• Open Circuit Test (No-load Test): Determines core loss and no-load parameters.
• Short Circuit Test: Determines copper loss and equivalent resistance/impedance.
• Polarity Test: Identifies polarity of windings.
• Insulation Resistance Test: Ensures proper insulation between windings and core.
• Direct Loading Test on transformer: Evaluates efficiency, losses, and voltage regulation under actual load conditions.

2. Importance of Direct Loading Test on a Transformer Performance Evaluation

The Direct Loading Test on a transformer holds special significance because:

• It uses a real load to evaluate transformer performance.
• Provides accurate results for efficiency and voltage regulation.
• Helps in understanding the practical behavior of the transformer under load.
• Confirms theoretical values obtained from other tests.

This test directly measures input power, output power, and losses, making it one of the most reliable methods for evaluating performance, particularly in academic and experimental studies.

3. When and Why the Direct Loading Test on a transformer is Used Compared to Other Methods

• When to Use:
  • For small transformers in laboratories where energy loss is not significant.
  • When precise and direct measurement of efficiency and regulation is required.
• Why to Use:
  • Other methods, such as open-circuit and short-circuit tests, only provide indirect estimates of efficiency and regulation.
  • Direct Loading Test gives actual values under real operating conditions.

However, due to high energy consumption, this method is not preferred for large transformers, where indirect methods (OC and SC tests) are more practical.

4. Principle of Direct Loading Test on a transformer

The principle is based on loading the transformer under real working conditions:

• An AC supply is applied to the primary winding.
• A variable load (resistive, inductive, or a combination) is connected to the secondary.
• By gradually increasing the load from no-load to full-load, the following parameters are measured:
  • Input power (from primary wattmeter)
  • Output power (from secondary wattmeter)
  • Primary and secondary voltages and currents
• From these readings, efficiency, losses, and regulation are calculated.

This test is essentially a real-time performance evaluation of the transformer.

5. Difference Between Direct Loading Test on a transformer and Other Tests

Objective of the Direct Loading Test on a transformer

The Direct Loading Test on a transformer is performed with the following main objectives:

1. To Measure Full-Load Efficiency
   • By directly recording input power and output power under load, the test helps in accurately determining the efficiency of the transformer at different load conditions.
2. To Determine Voltage Regulation
   • The test evaluates the change in secondary terminal voltage from no-load to full-load, which indicates the voltage regulation of the transformer.
3. To Check Heating and Performance Under Actual Load Conditions
   • Since the transformer is operated with a real load, this test provides practical insight into the heating effect, losses, and overall performance during actual service conditions.

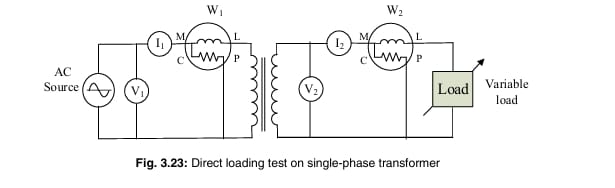

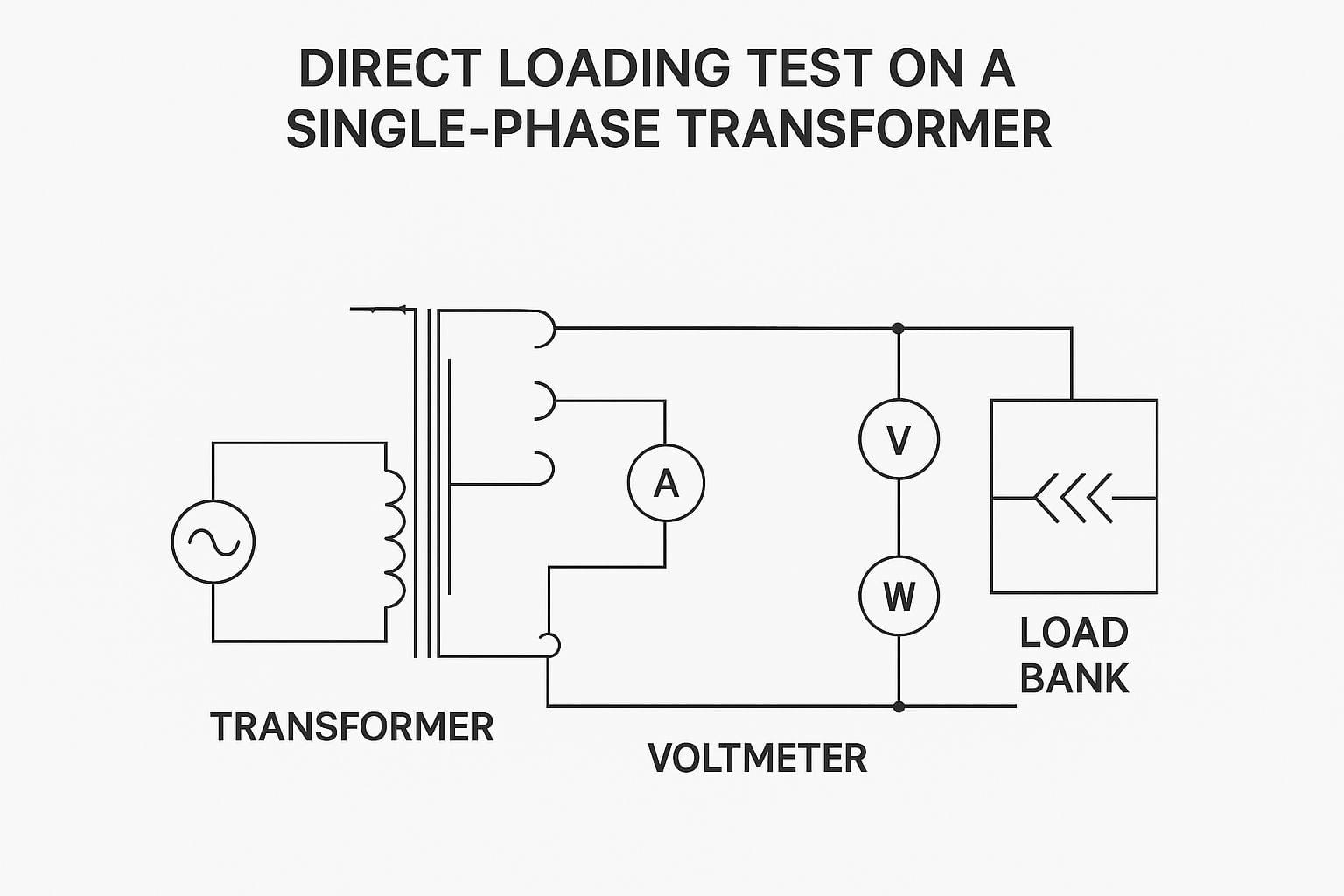

Circuit Diagram of Direct Loading Test on a transformer

1. Circuit Arrangement

In the Direct Loading Test of a single-phase transformer:

• The primary winding of the transformer is connected to a single-phase AC supply source.
• A variable load bank (resistive, inductive, or a combination) is connected to the secondary winding.
• Measuring instruments (ammeter, voltmeter, and wattmeter) are placed on both the primary and secondary sides to record input and output values.

This setup allows measurement of input power, output power, primary and secondary voltages, and currents. By gradually varying the load, the transformer’s performance is tested from no-load to full-load.

2. Instruments Used

1. Ammeter (I1, I2):
   • Measures current on the primary (I1) and secondary (I2) sides.
   • Indicates how much current flows under different loading conditions.
2. Voltmeter (V1, V2):
   • V1 measures the supply voltage on the primary side.
   • V2 measures the terminal voltage on the secondary side.
   • Used to study voltage drop and calculate voltage regulation.
3. Wattmeter (W1, W2):
   • W1 measures the input power from the primary side.
   • W2 measures the output power on the secondary side.
   • Used to calculate efficiency and losses.
4. Load Bank (Variable Load):
   • A controllable load is connected across the secondary winding.
   • Can be purely resistive (R), inductive (L), capacitive (C), or a combination.
   • Used to vary the load gradually from no-load to full-load.

3. Power Source and Connection Details

• A single-phase AC source is applied to the transformer’s primary winding.
• The secondary winding is connected to the variable load bank.
• Measuring instruments are connected in a standard configuration:
  • Ammeters in series
  • Voltmeters in parallel
  • Wattmeters connected according to the two-wattmeter method (or single wattmeter in case of a single-phase system)

Procedure of Direct Loading Test on a transformer

1. Step-by-Step Process

1. Connections:
   • Connect the transformer primary winding to the single-phase AC supply.
   • Connect a variable load bank across the secondary winding.
   • Place ammeters, voltmeters, and wattmeters properly on both sides.
2. No-Load Condition:
   • Keep the load switch OFF initially.
   • Switch ON the supply and record primary voltage (V1), secondary voltage (V2), primary current (I1), and input power (W1).
   • At this stage, secondary current (I2) and output power (W2) will be zero.
3. Loading the Transformer:
   • Gradually switch ON and increase the load in steps using the variable load bank.
   • At each step, note down readings of V1, V2, I1, I2, W1, and W2.
4. Full-Load Condition:
   • Continue increasing the load until the rated (full-load) current flows in the secondary winding.
   • Record all meter readings at full load.
5. Switch OFF:
   • Reduce the load to zero.
   • Switch OFF the supply to complete the test.

2. How to Apply Full Load

• By adjusting the variable load bank (resistive or inductive), the load current is increased step by step.
• Full-load condition is reached when the rated current of the transformer flows through the secondary winding.

3. Measurement of Input/Output Power

• Input Power (W1): Measured from the primary side using a wattmeter.
• Output Power (W2): Measured from the secondary side using a wattmeter.
• These values are then used to calculate:
  • Efficiency = (Output Power / Input Power) × 100
  • Losses = Input Power – Output Power

4. Safety Precautions During Testing

1. Ensure all connections are tight and correct before switching ON.
2. Use properly rated meters and load banks to avoid damage.
3. Do not exceed the rated load current of the transformer.
4. Handle instruments and supply switches with care to avoid electric shock.
5. Switch OFF the supply immediately if abnormal heating, sparking, or smoke is observed.

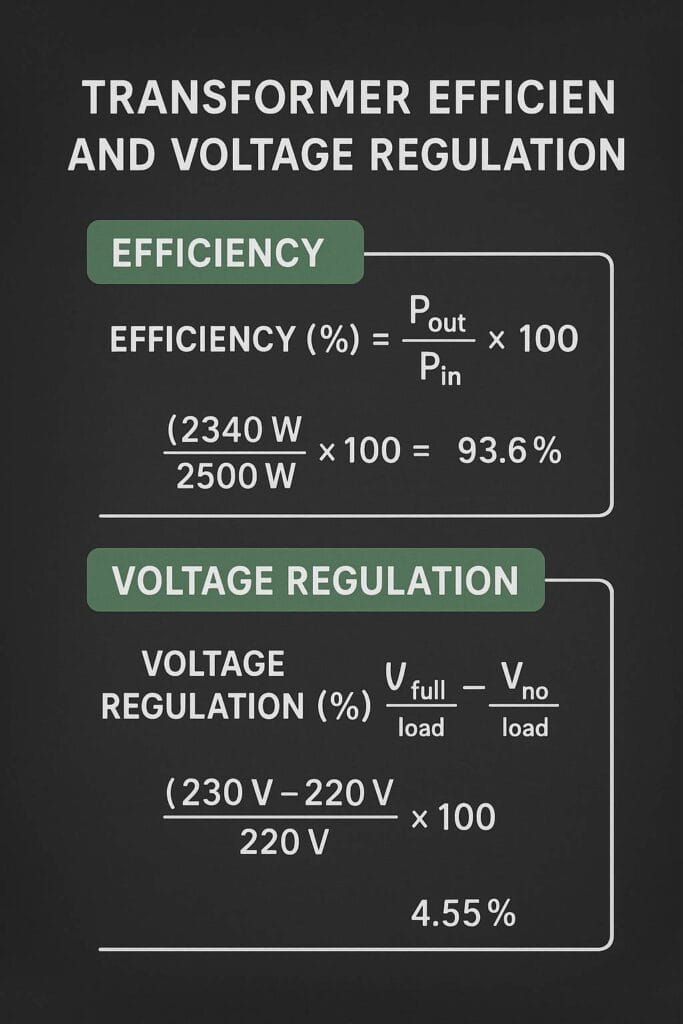

Calculations in the Direct Loading Test on a transformer

1) Efficiency Calculation

Direct definition (from measured powers):
η(%) = (P_out / P_in) × 100 = (W₂ / W₁) × 100

Where:

• W₁ = Input wattmeter reading (primary)
• W₂ = Output wattmeter reading (secondary)

Loss at any load:
P_loss = W₁ – W₂

Total Loss at Full-load
Loss = W1(FL) – W2(FL)

Note: In the Direct Loading Test on a transformer we don’t need to separate core and copper losses; the metered loss is the actual total loss at that load and power factor.

2) Voltage Regulation Calculation

Definition: Percentage change in secondary terminal voltage from no‑load to a given load (usually rated current) at a specified power factor, referred to the no‑load value.
% Regulation = ((V₂,NL – V₂,FL) / V₂,NL) × 100

Where:

• V₂,NL = Secondary terminal voltage at no‑load (rated primary applied)
• V₂,FL = Secondary terminal voltage at full‑load (rated current at specified pf)

Sign convention: If V₂,FL < V₂,NL ⇒ positive regulation. If V₂,FL > V₂,NL (possible for leading pf) ⇒ negative regulation.

Voltage Drop at Full Load
Drop = V2(NL) – V2(FL)

Sample Numerical Example (Single‑Phase)

Given — A 1 kVA, 230/115 V transformer is directly loaded.

• No‑load (rated V₁ applied): V₂ = 119 V (V₂,NL)
• Full‑load test at pf = 0.9 lag:
  Primary: V₁ = 230 V, I₁ = 4.8 A, W₁ = 980 W
  Secondary: V₂ = 112 V, I₂ = 8.0 A, W₂ = 900 W

(a) Efficiency at full load (0.9 lag):
η = (W₂ / W₁) × 100 = (900 / 980) × 100 = 91.84% (approx.)

(b) Total loss at full load:
P_loss = W₁ – W₂ = 980 – 900 = 80 W

(c) Voltage regulation at full load (0.9 lag):
% Reg = ((119 – 112) / 119) × 100 = 5.88% (approx.)

Check: Apparent output at full load = V₂ × I₂ = 112 × 8 = 896 VA. Real output W₂ = 900 W implies measured pf ≈ 900 / 896 = 1.004, which is within meter/rounding tolerance.

2) Optional: Computing Efficiency at Other Load Fractions (using measured full‑load loss)

If you want approximate efficiency at a fraction x of full load with the same pf, you can split the measured full‑load loss P_loss,FL, into core (assumed constant) and copper (∝ I²). When only Direct‑Loading data is available, a simple approach is:

• Treat core loss as the measured no‑load input power: P_c ≈ W₁,NL
• Then copper loss at full load: P_cu,FL ≈ P_loss,FL – P_c
• At load fraction x: P_cu(x) ≈ x² × P_cu,FL

Efficiency at load fraction x and pf cosφ:
η(x) = (V₂ × I₂ × cosφ) / (V₂ × I₂ × cosφ + P_c + x² × P_cu,FL)

(Use rated V₂ and I₂ = x × I_rated. This is optional; the direct method (W₂ / W₁) is preferred whenever you actually measure W₁ and W₂ at the desired load.)

Ready‑to‑Use Observation & Calculation Template

Record readings at each load step (e.g., 0, 25, 50, 75, 100%):

*Regulation is typically reported at full load and specified pf using V₂,NL from the first row.

Quick Tips

• Always state the power factor when quoting efficiency and regulation.
• For leading pf, regulation can be negative (V₂,FL > V₂,NL).
• Use properly rated wattmeters; ensure current and voltage coils are correctly connected to avoid systematic error.

Difference Between Direct Loading Test and Indirect Tests

1) Direct Loading vs Open Circuit Test

• Direct Loading Test: Transformer is loaded with actual resistive/inductive load at rated current. Real input, output, efficiency, regulation, and heating are measured.
• Open Circuit Test: Transformer secondary is open, and rated voltage is applied to the primary. Core (iron) losses and no-load parameters are measured, but efficiency/regulation at load are not directly obtained.

2) Direct Loading vs Short Circuit Test

• Direct Loading Test: Requires full-load power input (large kVA rating → very high test power). Not economical for large transformers.
• Short Circuit Test: Secondary is shorted, and a small fraction of rated voltage is applied to circulate full-load current. Copper losses and equivalent impedance are measured with minimal power requirement.

3) Direct Loading vs Sumpner’s (Back-to-Back) Test

• Direct Loading Test: One transformer under test, with a real load bank. High power is drawn from the source.
• Sumpner’s Test: Two identical transformers connected back-to-back. One transformer supplies the other, so the net power drawn is only equal to the total losses. Full-load heating and efficiency/regulation can be simulated economically.

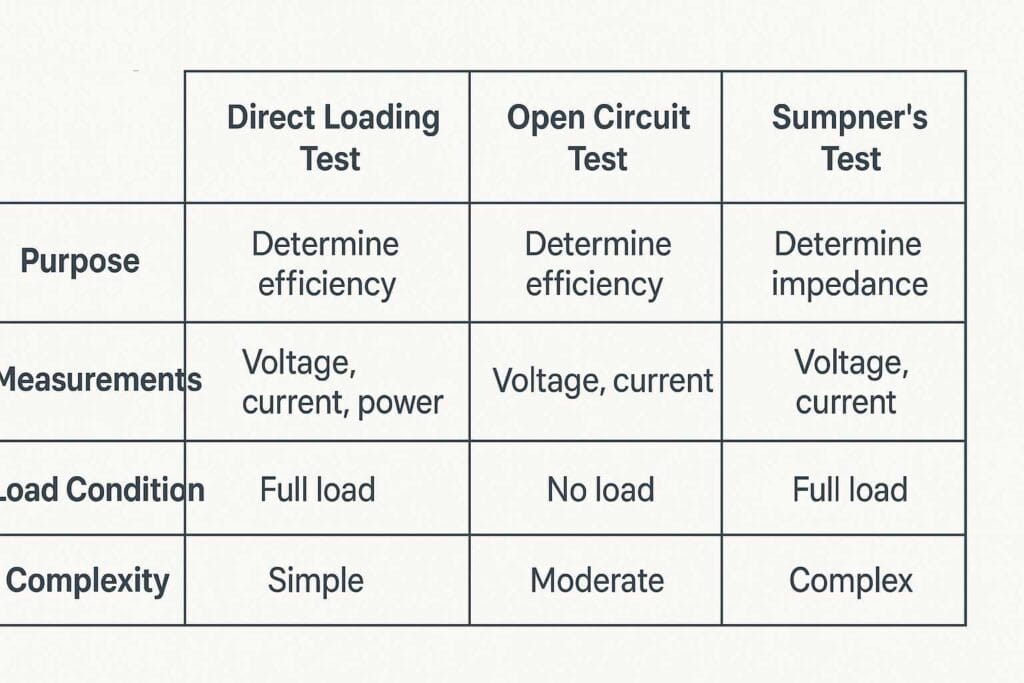

Tabular Comparison

Practical Considerations and Safety Precautions in Direct Loading Test on a transformer

1) Proper Rating of Load Bank

• Always use a load bank rated for the transformer under test.
• The kVA rating of the load should match or exceed the transformer’s full-load rating.
• Use resistive, inductive, or combined load banks depending on the desired power factor.

2) Avoid Overheating of the Transformer

• Direct loading tests subject the transformer to actual full-load current.
• Prolonged testing can lead to overheating of windings and insulation.
• Limit the duration of the full-load test to a safe time (typically a few minutes for small/medium transformers).

3) Ensure Proper Earthing and Insulation

• The transformer body must be solidly earthed before energizing.
• All connections (input and load) must be properly insulated and tightened.
• Use properly rated cables, free from cuts or damage.

4) Monitoring Instruments During Test

• Continuously monitor ammeter, voltmeter, and wattmeter readings.
• Keep a close watch on transformer oil temperature (if oil-immersed type).
• Observe for any abnormal noise, smell, or vibration.

5) General Safety Precautions

• Never touch live terminals during the test.
• Ensure that protective devices (fuses, MCBs) are in place.
• Maintain safe clearance from high-voltage parts.
• Only qualified personnel should conduct the test under supervision.

Limitations and Alternatives of Direct Loading Test on a transformer

1) Limitations of the Direct Loading Test on a transformer

• High power requirement: Full-load testing requires a load bank capable of absorbing the rated output of the transformer. For large transformers (MVA ratings), this is impractical and costly.
• Severe heating risk: Continuous full-load operation may overheat the transformer, load bank, and cables, leading to insulation damage.
• Not economical: The test wastes significant power as heat in the load bank, making it uneconomical for large units.
• Safety hazards: Risk of accidents due to overheating, high currents, or improper handling.
• Limited to small transformers: Generally feasible only for laboratory-sized or distribution transformers of small capacity (up to a few kVA).

2) Alternatives to the Direct Loading Test on a transformer

(a) Open-Circuit (OC) Test

• Measures core (iron) loss at rated voltage with no load connected.
• Requires very little power input, hence economical.
• Used for determining no-load current, core loss, and magnetizing branch parameters.

(b) Short-Circuit (SC) Test

• Conducted at reduced voltage with the secondary short-circuited.
• Input power represents copper (I²R) loss at rated current.
• Allows measurement of equivalent series parameters with minimum power.

(c) Sumpner’s (Back-to-Back) Test

• Two identical transformers are tested in parallel (one loaded against the other).
• Provides full-load copper and iron losses simultaneously without external load banks.
• Very efficient, as only losses are supplied from the mains.
• Preferred for medium and large transformers.

3) When to Prefer Alternatives Over Direct Loading

• For large power transformers (above a few kVA): Direct loading becomes impractical; use OC & SC or Sumpner’s Test.
• When accurate separation of losses is needed, OC and SC tests provide clear distinction between core and copper losses.
• When full-load conditions must be simulated efficiently, Sumpner’s test is best, as it replicates full-load operation without wasting power.
• For research/training labs with small transformers: Direct loading may still be used for demonstration purposes.

4) Quick Comparison

Advantages of Direct Loading Test on a transformer

1. Accurate Measurement of Efficiency and Regulation
   • Since the test is performed under actual load conditions, the measured input and output powers directly give the true efficiency.
   • Voltage regulation obtained reflects the real behavior of the transformer under load.
2. Provides Real Working Condition Performance
   • The transformer is tested under practical conditions, similar to its operation in the field.
   • This ensures that results are not based on assumptions or equivalent circuit approximations.
3. Helps Detect Heating and Losses
   • Direct loading makes it possible to observe the actual heating of the transformer windings, core, and insulation during operation.
   • This helps in identifying potential overheating issues and verifying the thermal capability of the transformer.
4. Validation of Design and Construction
   • Confirms whether the transformer performs as per nameplate specifications.
   • Provides confidence in the quality, insulation strength, and mechanical robustness.
5. Educational and Training Value
   • In laboratory experiments, direct loading is highly beneficial for students to understand the actual behavior of a transformer under different loading and power factor conditions.

Disadvantages of Direct Loading Test on a transformer

1. Requires Large Load Bank
   A significant drawback is the requirement of a physically large and properly rated load bank to absorb the full-load power of the transformer. This makes the setup bulky and costly.
2. Not Suitable for High-Capacity Transformers
   Direct loading becomes impractical for medium and large power transformers (hundreds of kVA or MVA range), as the load bank and power supply requirements are enormous.
3. High Power Consumption During Testing
   The test wastes considerable electrical energy since the entire rated power is consumed as heat in the load bank. This makes it inefficient and uneconomical.
4. Costly and Less Practical in Industries
   Due to the heavy current handling equipment, large rating wattmeters, and cooling arrangements required, direct loading is rarely adopted in industrial testing laboratories.
5. Risk of Overheating and Safety Concerns
   Continuous loading at full capacity can cause excessive heating of the transformer under test and the load bank, posing safety risks if not monitored carefully.

Applications of the Direct Loading Test on a transformer

1. Small Transformers (Laboratory Testing & Education)
   • Widely used in laboratories to test and demonstrate the efficiency, regulation, and performance of small rating transformers.
   • Helps students understand practical transformer behavior under various load conditions.
2. Low Rating Distribution Transformers
   • Suitable for testing distribution transformers of lower capacities (typically below 10–20 kVA).
   • Ensures that these transformers perform reliably under real operating conditions before field deployment.
3. Research and Academic Experiments
   • Used in engineering colleges, universities, and research institutes for conducting experimental studies.
   • Allows analysis of losses, heating effects, and performance curves for academic purposes.
4. Quality Verification of Small Units
   • Manufacturers may use direct loading for prototype testing of small transformers to validate their design and insulation performance.

Note: Direct Loading Test on a transformer is mainly limited to small-capacity transformers due to its cost, power wastage, and practical limitations.

Elentechpk.com – Power Your Electrical Knowledge ⚡

Learn electrical engineering the smart way! From transformers to motors, relays to testing guides, Elentechpk.com makes complex concepts simple and practical. Perfect for students, engineers, and enthusiasts.

Visit www.elentechpk.com today and boost your skills!

FAQ
