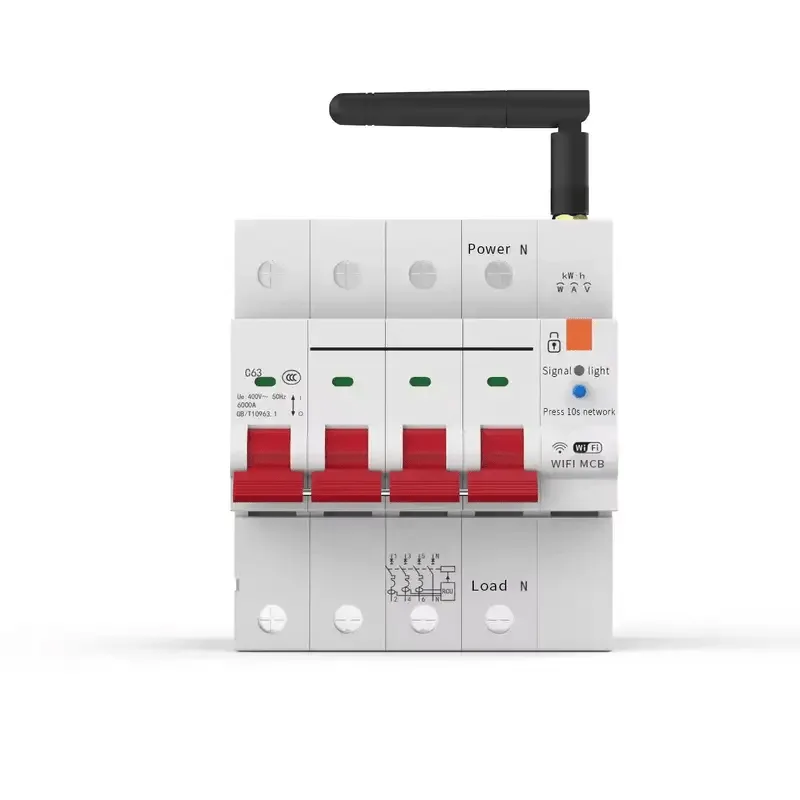

What is a Molded Case Circuit Breaker (MCCB)?

A Molded Case Circuit Breaker, or MCCB switches, is like a guard for your electrical system. It watches over your wires and machines and quickly stops the power if something goes wrong—like when too much electricity flows or when there’s a short circuit. This helps keep your equipment safe from damage and prevents fire or accidents.

An MCCB is like a guard for your electricity. If something goes wrong, it shuts off the power to stop danger.

MCCBs are often placed in the main electrical panel of a home, factory, or building. They can handle both small and large electrical systems, depending on the size and rating.

Why is an MCCB Important?

An MCCB does two important jobs:

1. It protects your electrical system from overload or short circuits.
2. It isolates the power so electricians can safely do repairs or maintenance.

With an MCCB, you can stop electricity easily when needed. It also has a small handle that shows whether the power is ON or OFF.

Main Parts of an MCCB switches

Let’s break it down simply:

• Molded Case: This is the strong outer cover that keeps all parts safe and tightly in place. It is made from special non-conductive material so electricity stays inside safely.
• Terminals: These are connection points for wires. If they are connected properly, the current flows smoothly without overheating.
• Operating Switch: This is the part you can move by hand. It turns the MCCB ON or OFF.
• Trip Unit: This is the brain of the MCCB. It senses when there’s too much current or a short circuit and turns off the power automatically. You can reset it after it trips.
• Arc Chamber: When the MCCB turns off suddenly, a small spark (arc) can happen. The arc chamber catches and breaks this spark safely, so it doesn’t harm the breaker.

Where is MCCB Used?

MCCBs are used in many places that need strong and safe power control:

• Motors: Machines with motors need protection from power surges. MCCBs help motors run safely without tripping unless necessary.
• Welding Machines: These use high current. Normal breakers can’t handle it, but MCCBs can.
• Generators: Generators produce a lot of electricity. MCCBs protect both the generator and connected systems from faults.
• Capacitor Banks: These are used in industries to manage power better. MCCBs help control the flow and balance the system.
• Electric Feeders: MCCBs are also used to protect wires that carry electricity to different parts of a system.

Adjustable Settings

One of the best things about MCCBs is that they can be adjusted. You can set them for small home appliances or big machines in factories. This makes them very useful in many different places.

Working Principle of MCCB

An MCCB is like a smart switch that protects us from big dangers in an electrical system. It helps stop too much electricity from flowing, which can cause fire or damage to machines.

Let’s understand it simply.

Imagine water flowing through a pipe. If too much water flows, the pipe might burst. Just like that, if too much current flows in wires, they can overheat and burn. An MCCB is like a gate in the pipe that closes when too much water tries to pass. It shuts off the electricity when the current goes beyond the safe limit.

An MCCB works in two main ways:

1. Thermal Protection (for overload):
   When the current goes higher than normal for a long time, the MCCB uses a small metal strip inside it. This strip slowly bends due to heat. Once it bends enough, it releases a spring and turns off the switch. This helps prevent overheating.
2. Magnetic Protection (for short circuits):
   If there is a sudden fault, like wires touching each other or a short circuit, the current jumps very high very quickly. The MCCB has a magnet inside that becomes strong during such high current. This magnet pulls a lever instantly and breaks the circuit. It happens in less than a second.

In both cases, the MCCB breaks the circuit to keep us safe. Once the problem is fixed, we can turn it back on by hand.

Molded Case Circuit Breaker (MCCB) Ratings

Molded Case Circuit Breakers, or MCCBs, are special switches used to protect electrical circuits. They help keep everything safe when there’s too much current flowing. Let’s look at some important things we check when choosing an MCCB:

1. Rated Current (In)

This tells us how much current (or electricity) the MCCB can handle every day without any problem. If the current goes higher than this, the MCCB will stop it to prevent damage. You can also adjust this number depending on what you need.

2. Rated Frame Current (Inm)

This is the highest current the MCCB can be made for. It also decides the size and build of the MCCB. Think of it like the maximum strength the MCCB can be designed to have.

3. Rated Insulation Voltage (Ui)

This shows how much voltage the MCCB can safely hold without the risk of electricity jumping or leaking out. It is kept higher than the normal working voltage for extra safety.

4. Rated Working Voltage (Ue)

This is the regular voltage the MCCB will work with during everyday use. It matches the usual voltage in the system where the MCCB is installed.

5. Short-Circuit Breaking Capacity (Ics)

Sometimes, something goes wrong, and a big rush of electricity (called a fault) flows through the circuit. This rating tells us how much of that sudden current the MCCB can stop safely, without getting damaged. After that, it can still work normally.

6. Mechanical Life

This tells us how many times we can turn the MCCB on and off by hand before it wears out. It shows how strong the parts inside are.

7. Electrical Life

This shows how many times the MCCB can break the circuit during a fault before it stops working for good. It’s like counting how many times it can protect us before needing replacement.

Molded Case Circuit Breaker (MCCB) vs Traditional Circuit Breaker

When it comes to protecting electrical circuits, there are two common types of breakers: Traditional Circuit Breakers and Molded Case Circuit Breakers (MCCBs). Let’s understand them in a simple and clear way.

🌟 Traditional Circuit Breakers

These are the most basic type of breakers. They are often used in homes where the electric load is not too heavy.

• They can handle electricity up to 100 amps.
• Their breaking power (interrupting rating) is usually below 18,000 amps.
• They do not have smart sensors to detect when the current goes too high.
• They are best for small appliances and home wiring.
• These breakers are fixed, which means they can’t be changed or adjusted.

⚡ Molded Case Circuit Breakers (MCCBs)

MCCBs are stronger and more advanced than traditional breakers. They are designed for bigger machines and higher power use.

• They can carry current from as low as 10 amps up to 2,500 amps.
• They have a breaking capacity of 10,000 to 200,000 amps, which makes them much more powerful.
• You can adjust their trip settings, especially in bigger models. That means you can choose when you want them to trip.
• MCCBs can be turned on or off using a remote, which makes them very handy in large buildings or factories.
• They are often used in industries, welding machines, motors, and commercial buildings.
• After they trip, you can reset them easily and use them again.

🛠️ Choosing the Right One

Before buying any MCCB, it’s important to check the brand and quality. A good MCCB should last long, work reliably, and keep your electrical system safe.

Sample MCCB Table

Applications of MCCB Switches

1. Factories and Big Machines

In factories where big machines work all day, the MCCB switch keeps those machines safe. If too much electricity flows, it stops it before anything gets damaged.

👉 For example, in a car-making factory, it protects things like robots, conveyor belts, and welding tools.

2. Offices and Commercial Buildings

Buildings like malls, offices, and hospitals have a lot of lights, lifts, computers, and other equipment. The MCCB switch helps keep all of them running safely.

👉 In a hospital, it protects important machines like ventilators, MRI machines, and lights.

3. Large Homes and Apartments

In big buildings with many homes, people use lifts, water pumps, and air conditioning. The MCCB switch makes sure everything works well and no overload happens.

👉 It helps keep the lights on and the power steady for everyone in the building.

4. Solar and Wind Power Plants

Places that make clean energy from the sun or wind also use MCCB switches. These systems can face sudden changes in power, and the MCCB helps protect the equipment.

👉 In a solar setup, it keeps the inverter safe when sunlight changes quickly.

5. Data Centers and Server Rooms

These are places that store important computer data. The MCCB switches keeps servers and cooling systems running even if there’s a problem with the electricity.

👉 It helps avoid data loss and keeps everything working smoothly.

6. Hotels and Resorts

Hotels use a lot of power for lights, air conditioners, kitchens, and more. The MCCB switches manages this power safely so guests stay comfortable.

👉 It keeps everything working, from room lights to kitchen stoves.

7. Schools and Colleges

Educational places have lights, fans, computer rooms, and science labs. The MCCB switches helps keep these systems safe and running properly.

👉 In a science lab, it protects machines from electric faults.

8. Shops and Supermarkets

Shops and markets use refrigerators, billing machines, and lights. If anything goes wrong, the MCCB switch steps in to protect everything.

👉 It keeps food fresh by protecting the freezers from power issues.

9. Construction Sites

Construction sites use heavy tools and machines. The MCCB switch helps stop electric shocks or fires by protecting the temporary power setup.

👉 It keeps workers and machines safe.

10. Theatres and Stadiums

Entertainment places use lots of lights and sound systems. The MCCB switch keeps the show going by handling power safely.

👉 In a concert hall, it makes sure the music and lights don’t stop suddenly.

Why the MCCB Switch is So Important

The MCCB switch is like a strong guardian in electrical systems. It plays a very important role to keep things safe and working well. Here’s why the MCCB is so useful:

1. Protects from Electrical Problems
   Sometimes, electricity can become too strong or find a shortcut, causing sparks or fires. The MCCB switch watches over the wires and quickly turns off the power if something goes wrong. This helps stop accidents before they happen.
2. Handles Big Power Loads
   Unlike smaller switches, the MCCB can manage a lot of electricity at once. This makes it perfect for places like factories or big buildings where heavy machines use a lot of power.
3. Built to Last
   The MCCB is made with a strong case that keeps it safe from dust, heat, and water. Because of this, it works well even in tough places.
4. You Can Adjust It
   One cool thing about the MCCB is that you can set how much electricity it can take before it turns off. This means it can be set just right for different types of electrical systems.
5. Protects Machines and Equipment
   When electricity acts up, it can break machines and tools, which can be very expensive to fix. The MCCB helps protect these machines by stopping bad electricity quickly.
6. Keeps Things Running Smoothly
   If there is a problem, the MCCB cuts off power fast, so only a small part stops working. This helps everything else keep running without big delays.
7. Works Manually Too
   Besides turning off automatically when there’s trouble, the MCCB can also be switched off or on by hand. This gives you more control when needed.
8. Follows Safety Rules
   Using an MCCB means the electrical system meets important safety laws. This helps avoid danger and keeps homes and businesses safe.
9. Used Everywhere
   The MCCB is useful in many places, such as:

• Factories with heavy machines
• Office buildings and hospitals
• Big houses and apartments
• Solar and wind power systems

Choosing the Right MCCB Switch Made Simple

When it comes to keeping your electrical system safe and running smoothly, one small device makes a big difference — the MCCB switches. This stands for Molded Case Circuit Breaker. Its job is to protect your system from getting too much current, which can cause damage, short circuits, or even fires.

But with so many types available, how do you know which MCCB is the right one for you? Don’t worry — this easy guide will help you understand what to look for.

1. How Much Current Can It Handle? (Current Rating)

Every MCCB is made to carry a certain amount of electric current. If your system uses more than the switch can handle, it will “trip” and cut off the power.
To choose the right one, add up how much electricity your system needs, and pick a switch that can handle a little more than that. This helps avoid unwanted trips.

2. Can It Stop Big Faults? (Breaking Capacity)

Sometimes, there can be a sudden and large surge of electricity, like a fault. The MCCB needs to stop it quickly and safely.
Make sure you choose a switch that can handle the biggest fault current your system might have.

3. How Many Lines Does It Control? (Number of Poles)

MCCBs come with 1, 2, 3, or 4 poles.

• For small homes or single-phase power, a 2-pole MCCB is usually enough.
• For bigger, three-phase systems (like in factories), you’ll need a 3-pole or 4-pole MCCB.

4. How Fast Should It React? (Trip Type)

Different places need different types of MCCBs, depending on how fast they need to act.

For heavy machines that use a lot of power when starting, a Type D is better.

For homes or shops, a Type C MCCB works well.

Advantages of MCCB (Molded Case Circuit Breaker)

MCCB stands for Molded Case Circuit Breaker. It is a strong and smart device that keeps your electrical system safe. Whether you are using it at home, in a shop, or in a big factory, MCCB helps protect people, machines, and wires from danger.

Here are some easy-to-understand advantages of MCCB:

Thermal Overload – A Simple Explanation

Molded Case Circuit Breakers, or MCCBs, help keep our electrical systems safe. One of the most important things they do is protect us from thermal overload.

Now, what is thermal overload?

It happens when too much electricity flows through a wire or a device. This can make things very hot, and that heat can damage wires, machines, or even start a fire. MCCBs stop this from happening.

Inside every MCCB, there is something like a tiny strip of metal or a small heater. When too much current passes through, this strip heats up and bends. When it bends enough, it tells the breaker to switch off. This stops the flow of electricity and keeps everything safe.

The best part? You can adjust how sensitive this switch is. For example, if you’re protecting a light bulb, you may want the MCCB to trip quickly. But if you’re protecting a motor, which uses more power at the start, you might set it to trip a little later.

Another big benefit of MCCBs is that you don’t have to throw them away after they trip. You can simply reset them and use them again. This makes them much easier to use than fuses, which break and need to be replaced.

So, in simple words:
MCCBs help stop overheating by turning off the power when needed. They are smart, adjustable, and reusable—making them a great choice for protecting your electrical system.

Short-Circuit Condition

A short-circuit happens when electricity takes a shortcut through wires, making a lot of current flow suddenly. This can be very dangerous because it can break electrical machines or even start fires.

To keep things safe, we use special devices called Molded Case Circuit Breakers, or MCCBs for short. MCCBs are like smart guards for electricity. When they sense a short-circuit, they quickly stop the flow of electricity so nothing gets damaged.

Inside an MCCB, there is a part that can feel when too much electricity is flowing. It uses a magnetic force created by the big rush of electricity during a short-circuit to switch off the power really fast—almost in the blink of an eye. This fast action protects machines and helps avoid long stops in work.

One great thing about MCCBs is they can handle very strong short-circuits safely. They can stop more powerful bursts of electricity than other devices like fuses or smaller breakers. This makes MCCBs the best choice to protect big and important electrical equipment.

a Ground Fault

A ground fault happens when electricity accidentally touches something it shouldn’t—like the metal body of a machine or any grounded surface. This can be very dangerous because electricity might leak out and cause shocks or damage.

To keep us safe, we use special devices called Molded Case Circuit Breakers, or MCCBs. These are like safety guards that watch the electricity closely. When they sense that electricity is leaking to the ground, they quickly shut off the power to stop any harm.

Inside an MCCB, there’s a part called a trip unit. This trip unit can tell when the electric current is flowing unevenly, which happens during a ground fault. When this happens, the trip unit acts fast and cuts off the electricity in just a fraction of a second.

One great thing about MCCBs is that they only shut off the part of the system where the problem is. This means the rest of the electrical system keeps working safely, so nothing else is disturbed. This smart action helps keep things running smoothly and protects both people and machines.

In short, MCCBs are like strong, quick-acting protectors that stop dangerous ground faults before they can cause trouble. They help keep electricity safe for everyone.
