What is a Pneumatic Timer?
A pneumatic timer is an air-logic timing device that creates a precise time delay using compressed air, without relying on electrical or electronic components.
It works by metering airflow into a chamber to delay or sustain an output (NO/NC contact). Because it operates without electricity, it is safe for use in hazardous or spark-risk environments, such as oil, gas, and chemical plants.
Construction of Pneumatic Timer
A Pneumatic Timer is a device that generates a fixed time delay using compressed air.
It mainly consists of a solenoid coil, plunger assembly, NO and NC contacts, an air chamber, and a needle valve.
The needle valve controls the airflow rate, which in turn determines the time delay of the timer.
Working Principle of Pneumatic Timer:
When the solenoid coil is energized, air flows slowly from the upper chamber to the lower chamber through the needle valve.
As the pressure between the two chambers equalizes, the diaphragm moves upward, activating the NO/NC contacts.
By adjusting the opening of the needle valve, the time delay can be increased or decreased as required.
Types of Pneumatic Timers:
Normally Closed (On-Delay), Normally Open (Off-Delay), Reservoir Fill Type, Spring-Diaphragm Type, and Mechanical Display Type.
Advantages of Pneumatic Timer:
No electrical power needed, completely safe in hazardous areas, highly durable and reliable, simple in design with easy setup, and can be remotely operated using only compressed air.
Table of Contents
Introduction

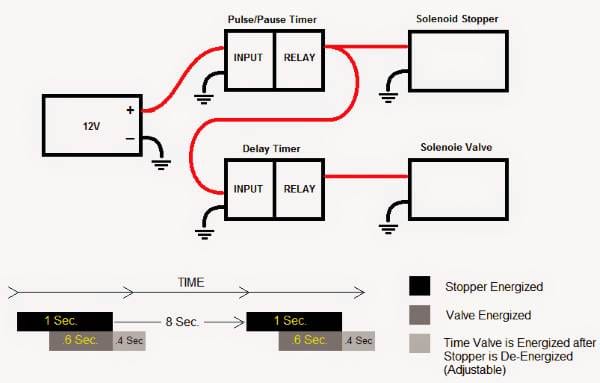

In automation and control systems, timing control is very important. In many industrial processes, some actions need to start or stop after a certain delay, so the whole system can work in the correct order.
For such uses, a very helpful device is the Pneumatic Timer. It is a timing device that works without electricity and gives a time delay using compressed air.
Main Advantage:
It is mainly used in places where there is a risk of spark or explosion, like in oil, gas, chemical, or mining industries.
⚙️ What is a Pneumatic Timer?
A Pneumatic Timer is an air-based device that uses compressed air to create a fixed time delay.
It turns an air signal ON or OFF after a set delay.
In simple words —
A Pneumatic Timer is a device that controls air pressure to create a specific time delay in a process.
Construction of Pneumatic Timer

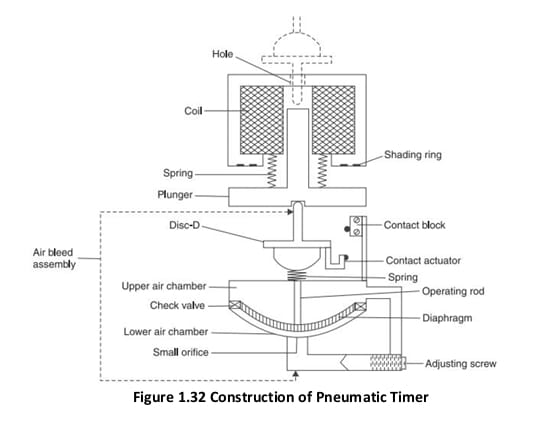

A Pneumatic Timer is a timing device that produces a fixed time delay using compressed air. It is made up of several mechanical and air-logic components. Below are its main parts and their functions 👇
🔩 Main Components of a Pneumatic Timer
1️⃣ Solenoid Coil
It is an electromagnetic coil used to energize the timer. When electric current flows through it, it creates a magnetic field that attracts the plunger.
2️⃣ Plunger Assembly
It is a movable metal rod connected to the solenoid. This rod controls the diaphragm or lever mechanism, which starts the timing operation.
3️⃣ NO and NC Contacts (Normally Open / Normally Closed)
These are output contacts through which the timer sends its signal to other devices.
- NO (Normally Open): Closes after the delay ends.
- NC (Normally Closed): Opens after the delay ends.
4️⃣ Air Chamber
This is the main component of the pneumatic timer. The air chamber is divided into two parts —
- Upper Chamber
- Lower Chamber
A flexible diaphragm separates these two chambers. An operating rod and disc (Disc D) connected to the diaphragm convert pressure changes into mechanical motion.
5️⃣ Needle Valve
This valve controls the flow of air. A small passage connects the upper chamber to the lower chamber, through which air slowly passes. The rate of this airflow determines the time delay.

⚡ Working Principle of Pneumatic Timer
1️⃣ Initial Condition:
When the solenoid coil is not energized (no power supply), the diaphragm stays in the lower position, and there is no movement.
2️⃣ Activation:
When the solenoid coil is energized, it reduces pressure on the plunger and disc (D).
3️⃣ Air Flow:
Air slowly flows from the upper chamber to the lower chamber through the needle valve. This slow flow controls the timing delay.
4️⃣ Equalization of Pressure:
Over time, the air pressure in both chambers becomes equal. This pressure balance pushes the diaphragm upward.
5️⃣ Contact Activation:
As the diaphragm moves up, the actuating lever shifts and activates the NO/NC contacts. This completes the timing cycle.
Time Delay Adjustment
The Needle Valve is the main component that controls the time delay.
By increasing or decreasing the flow of air, you can change the delay period:
- Smaller opening → Longer delay (more time)
- Larger opening → Shorter delay (less time)
This valve makes the system flexible according to different industrial requirements.

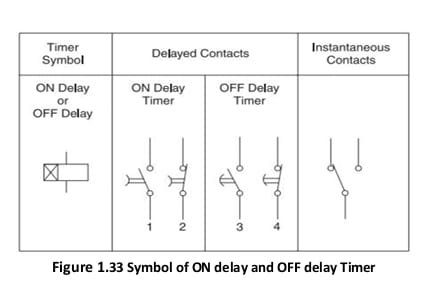

Types of Pneumatic Timers — Detailed Explanation
Pneumatic timers are designed based on different construction and operating principles. They are selected depending on the required time delay, accuracy, and industrial use.
1️⃣ Normally Closed (NC) Timer
Working Principle:
This timer remains closed in its normal state. When an input signal is received, air passes through the control valve into the chamber, and pressure gradually increases. Once the pressure reaches a certain level, the timer’s output becomes active.
Key Features:
- Also called an On-Delay Timer.
- The output turns ON after a fixed delay once input is received.
- Most commonly used type.
Example:
Starting the motor 5 seconds after pressing the start button.
2️⃣ Normally Open (NO) Timer
Working Principle:
This timer remains open in its normal state. When the input signal arrives, the output turns ON immediately, but turns OFF after a short delay.
Key Features:
- Also called an Off-Delay Timer.
- Even after input stops, the output remains active for a short time.
- Useful when a process needs to continue briefly after stopping.
Example:
Running a cooling fan for a few seconds after turning off a machine.

3️⃣ Reservoir Fill Type
Working Principle:
In this timer, air gradually fills a small air chamber (reservoir). When the pressure reaches a set limit, the output activates.
Key Features:
- Simplest and most economical timer design.
- Time delay depends on the air flow rate.
- Suitable only for On-Delay applications.
Example:
Give a short pause before pressing the piston in a press machine.
4️⃣ Spring-Diaphragm Type
Working Principle:
This timer uses a diaphragm and a spring. As air enters the chamber, the diaphragm slowly compresses the spring, and when pressure reaches a defined level, the output activates.
Key Features:
- High accuracy and stable timing.
- Performance remains stable even with pressure variations.
- Comes with an auto-reset (spring return) mechanism.
Example:
Used in air compressor systems where air pressure changes frequently.

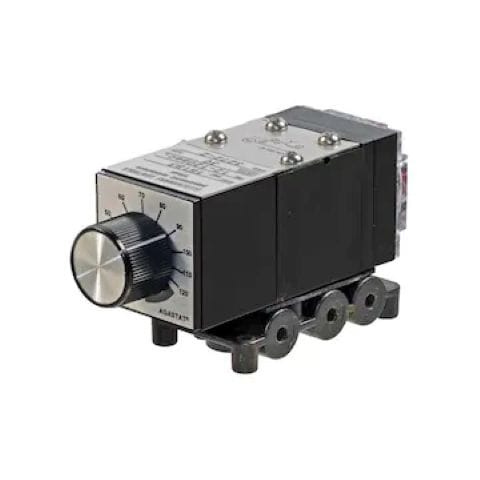

5️⃣ Mechanical Display Type
Working Principle:
This type includes a dial or pointer that visually displays the time delay. It usually works in combination with other timers, such as the Reservoir Fill or Diaphragm Type.
Key Features:
- Makes it easy to view and manually adjust the delay time.
- Suitable for educational and training laboratories.
Example:
Used in automation labs, where students can observe and adjust timing settings.
🔍 Summary Table
| No. | Timer Type | Use | Key Feature |
|---|---|---|---|
| 1️⃣ | Normally Closed (NC) | On-Delay | Output activates after a delay |
| 2️⃣ | Normally Open (NO) | Off-Delay | Output turns off after a short time |
| 3️⃣ | Reservoir Fill | Simple On-Delay operations | Low cost, simple design |
| 4️⃣ | Spring-Diaphragm | Stable time control | High accuracy, unaffected by pressure changes |
| 5️⃣ | Mechanical Display | Training / Labs | Visual indication, manual adjustment |
Advantages of Pneumatic Timer
1️⃣ No Electrical Power Needed
The Pneumatic Timer runs only on compressed air, so there is no risk of electrical sparks.
2️⃣ Safe Operation
It works safely in areas where explosive gases, dust, or flammable materials are present — such as oil, gas, and chemical plants.
3️⃣ Durable & Reliable
It has no electronic circuits or sensors, which means fewer chances of failure and easy maintenance.
4️⃣ Simple Design & Easy Setup
This device has a simple structure and does not require complex wiring.
5️⃣ Remote Control Capability
Since it runs on air, it can be installed in remote locations where electricity is not available.
⚠️ Limitations of Pneumatic Timer
1️⃣ Limited Accuracy
Timing may vary with changes in pressure, temperature, or air quality.
2️⃣ Limited Delay Range
It is difficult to produce very long delays (for example, several minutes).
3️⃣ Dependence on Air Quality
If the air contains dust, moisture, or oil, the timer’s performance decreases.
4️⃣ Simple Functionality
It is not suitable for complex programming or multi-step timing logic.
🏭 Applications of Pneumatic Timer
Pneumatic timers are used in industrial environments where the use of electricity is unsafe or undesirable.
🔹 Main Application Areas:
| Area | Use / Example |
|---|---|
| Oil, Gas & Chemical Plants | Spark-free timing control |
| Mining & Underground Systems | Explosion-safe automation |
| Industrial Automation Lines | Sequence control & process timing |
| Pressing / Sealing / Bonding | Maintain pressure for a fixed time |
| Safety Control Systems | Two-hand operation delay circuits |
| Pneumatic Logic Circuits | Air-based timing control applications |
⚙️ How to Select the Right Pneumatic Timer? (Selection Tips)
When selecting a pneumatic timer, consider the following factors 👇
| Selection Parameter | Description |
|---|---|
| 1️⃣ Delay Range | Choose a time delay range suitable for your process (e.g., 0.1 seconds to a few minutes). |
| 2️⃣ Operating Pressure | Ensure the timer matches your system’s working pressure. |
| 3️⃣ Environmental Conditions | Consider temperature, humidity, and dust. |
| 4️⃣ Valve Type | Choose NO (Normally Open) or NC (Normally Closed) as per need. |
| 5️⃣ Air Quality | Use clean and dry air. |
| 6️⃣ Certifications | For hazardous areas, choose timers with ATEX / IECEx certification. |
🛠️ Maintenance & Best Practices
🔸 Inspect regularly: Check the condition of valves, seals, and diaphragms.
🔸 Use clean and dry air: Install air dryers and filters to prevent moisture or oil from affecting timing.
🔸 Ensure safety during adjustments: Turn off the machine before changing timer settings.
🔸 Maintain steady pressure: Stable supply pressure ensures accurate timing.
🔸 Proper labeling: Clearly mark each timer with its function and delay setting.
How does a pneumatic timer work?
Compressed air enters through a restrictor (needle valve) and slowly fills a chamber. When pressure reaches a threshold, the mechanism trips and switches the output. Adjusting the needle valve changes fill time—and therefore the delay. Exhaust resets the cycle.
What are the advantages of pneumatic timers?
Pneumatic timers need no electricity, are spark-free and safe in hazardous zones, simple and durable, easy to install, and allow adjustable delay via a needle valve—ideal where electronic timers may be unsafe or over-complex.
Where are pneumatic timers used?
They’re used in filling and packaging lines, vacuum pump control, oil and gas plants, mining, material handling, safety interlocks, and pneumatic logic circuits—anywhere timed sequencing is needed without electrical timing circuitry.
How to select a pneumatic timer?
Match the delay range, operating pressure, environment (temperature, dust, humidity), required valve action (NO/NC), air quality (filtration/drying), mounting/port size, and certifications (e.g., ATEX/IECEx) for hazardous areas.
Conclusion:
A pneumatic timer is a reliable and simple device that provides accurate time delay using compressed air instead of electricity. Its operation is based on the controlled movement of air through a restrictor and diaphragm, making it highly suitable for hazardous or explosion-prone environments where electrical sparks must be avoided.
