what is DC Current (Direct Current): Working Principle, Symbol

Electric Current

Electric current is the flow of tiny particles called electrons. Just like water flows through a pipe, electrons flow through wires. This flow is what we call electric current.

We show electric current with the letter I, and its unit is called an ampere (A). You can think of it like measuring how fast the electricity is moving through the wire.

The electric current travels very fast — as fast as light! That means it moves at a speed of 3 × 10⁸ meters per second. That’s really, really fast!

Now here’s something interesting:
Electrons actually move from the negative side to the positive side, but we say that the current flows from positive to negative. This is just a rule scientists decided long ago, and we still follow it today.

Types of Electric Current

Electric current is the flow of electric charge. It is mainly of two types:

1. Alternating Current (AC)
2. Direct Current (DC)

1. Alternating Current (AC)

Alternating current is a type of electric current in which both the direction and value (strength) of the current keep changing again and again over time. It repeats this change in a regular pattern.

You can imagine it like the swinging of a swing — going forward and then backward, again and again.

This type of current is made using a machine called an alternator or AC generator.

Where is AC used?
Alternating current is used in almost every home and factory. It powers:

• Lights in our homes
• Fans that keep us cool
• Heaters that keep us warm
• Fridges, washing machines, TVs, and many more electric machines


What is DC Current?

DC means Direct Current. Some people call it “DC Current”, but the full form already has “current” in it. In simple words, DC is a type of electricity that flows in only one direction.

Imagine water flowing through a pipe from one end to the other — always moving forward, never backward. That’s how DC works. The electric charge (electrons) moves steadily from the negative side to the positive side, without changing direction.

This is different from AC (Alternating Current), where electricity goes back and forth. In DC, it flows in a straight path — like a one-way road.

🔋 Sources of DC Current

Here are some common things that give us DC power:

• Batteries – They store chemical energy and give out steady electricity.
• Solar panels – They catch sunlight and turn it into DC electricity.
• DC generators – These are machines that make direct current.
• Thermocouples – They use heat to make DC power.
• Power converters – These change AC into DC for many electronic devices.

🔬 How Was DC Current Discovered?

DC power started with Alessandro Volta, who made the first battery. Later, scientists like André-Marie Ampère helped explain how current flows.

In the late 1800s, there was a big debate between Thomas Edison and Nikola Tesla. Edison supported DC, and Tesla supported AC. In the end, AC became more common because it could travel long distances easily. But today, with new electronics, DC is making a strong comeback.

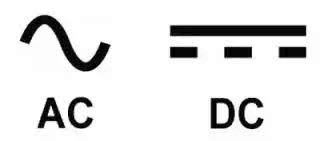

🔣 Symbol of DC Current

The symbol for DC current is a straight line with dashed lines below it. This shows that the flow is steady and one-directional.

⚡ Properties of DC Current

• One-way Flow: Electrons move from negative to positive.
• Used in Gadgets: Powers things like lights, motors, and electronic devices.
• Smooth and Steady: No back-and-forth movement like AC.
• Measured in Amperes (A): This is the unit of electric current.

🔧 Working Principle of DC current

DC current is created when a voltage difference pushes the electric charge in one direction. This can happen in:

• A battery, where chemicals create voltage.
• A generator, where magnets help move the charge.

In a DC circuit, the flow follows Ohm’s Law, which says:
👉 Voltage (V) = Current (I) × Resistance (R)

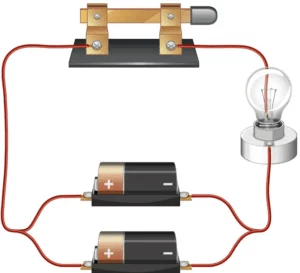

🔗 Types of DC current Circuits

1. Series Circuit

• All parts are connected one after the other.
• The same current flows through every part.

2. Parallel Circuit

• Each part has its own path.
• The voltage is the same in each path.

3. Series-Parallel Circuit

• A mix of both.
• Some parts are in a row, and some are side by side.

📏 How to Measure DC Current

You can measure DC current using a multimeter.

Steps:

1. Set the multimeter to DC current mode.
2. Connect the black wire (COM) to the negative terminal.
3. Connect the red wire to the positive terminal.
4. The multimeter will show how much current is flowing.

You can also use a clamp meter, which measures current without cutting the wire — very useful!

🔄 How is DC Generated?

Here are a few simple ways DC electricity is made:

• Battery: Chemical reaction pushes electrons.
• Solar Cell: Sunlight is turned into electricity.
• DC Generator: Uses magnets and motion to make electricity.
• Rectifier: Changes AC to DC in devices like phone chargers.

🧠 In Short:

• DC Current flows in one direction.
• It powers small and large devices.
• It’s smooth, steady, and easy to control.
• You find it in batteries, solar panels, and most electronics.



Uses of Direct Current (DC)

What is DC?
DC (Direct Current) is a type of electricity where the flow of electric charge goes in one straight direction. It doesn’t change back and forth like AC (Alternating Current). Let’s see where and why we use it.

✅ Why DC current is Useful

1. Steady and Stable
   DC gives a smooth and steady flow of electricity. That means it’s very reliable for machines or devices that need constant power without any breaks or changes.
2. Perfect for Electronics
   Many devices we use every day—like mobile phones, computers, and remote controls—run on DC power. These gadgets are designed to work with DC, so it’s the natural choice.
3. Works Well with Batteries
   Batteries give out DC power. Since DC matches the way batteries work, it’s great for storing energy safely and using it later when needed.
4. Less Energy Loss in Some Cases
   In special systems like HVDC (High Voltage DC), DC can travel long distances with less energy loss than AC. This helps save electricity.
5. Easy to Control
   DC lets us control voltage and speed more accurately. That’s why it’s often used in machines or tools where exact control is important.
6. Used in DC Motors
   DC motors are common in many things—from fans to electric cars. They are simple to use, easy to control, and can work in small or large machines.

❌ Disadvantages of DC current

While DC is useful, it also has a few downsides. Let’s understand them.

1. Hard to Send Over Long Distances
   It’s not easy to send DC power far away without using special and expensive equipment. That’s why big power stations mostly use AC for long-distance travel.
2. Needs Conversion
   Many times, DC has to be changed into AC, and then back to DC again. Each time we change it, we lose some energy.
3. Tough to Adjust Voltage
   Changing the voltage in a DC system is more complicated than in an AC system. It needs extra devices like voltage regulators.
4. Can Cause Rusting
   In some places, DC can lead to electrolysis, which means it can slowly damage metals by making them rust. This is a problem near water, like in ships or boats.
5. Fewer Ways to Create It
   Batteries and solar panels give DC, but most big power plants make AC. So we often need to convert AC into DC before we use it.

🔌 Where We Use DC Current

1. Electronics
   All our personal gadgets like phones, laptops, cameras, and remote controls use DC power.
2. Vehicles
   Cars, bikes, and electric scooters use DC power for lights, sound systems, and even to move!
3. Telecom Systems
   Telephone towers and internet systems need constant power, which DC can provide without interruption.
4. Solar Energy
   Solar panels make DC from sunlight. This is clean energy, and it helps power homes and devices.
5. Battery-Powered Tools
   Flashlights, remote toys, radios, and many other small gadgets use batteries that provide DC.
6. Data Centers
   Some modern data centers use DC power to save energy and reduce waste.
7. Medical Devices
   Many important medical tools, like pacemakers and monitors, run safely on DC power.


Difference Between AC and DC current

Electricity is very useful in our life. But do you know there are two types of electric current?
They are called AC (Alternating Current) and DC (Direct Current).
Let’s see how they are different from each other in a very simple way:

Effects of Electric Current

We cannot see electric current with our eyes, and we cannot touch it either. But we can know it is there by the effects it causes. Here are the main effects of electric current:

1. Heating Effect

When electric current passes through a wire or conductor, the wire resists the flow. Because of this resistance, the wire becomes hot. This is called the heating effect of electric current.

We use this effect in things like:

• Electric irons
• Room heaters
• Electric kettles
• Bulbs

2. Magnetic Effect

When current flows through a wire, it creates an invisible magnetic field around it. This is called the magnetic effect of electric current.

This effect is used in many devices, such as:

• Electric bells
• Electromagnets
• Fans
• Motors
• Generators

Chemical Effect of Electric Current

When we pass electric current through certain liquids, like acidic solutions, something special happens. The substances that are mixed in the liquid break apart into their basic parts. This process is called the chemical effect of electric current.

This effect is not just interesting—it is also very useful!

People use it in many ways, like:

• Cell engineering – to help in making batteries and storing energy.
• Electroplating – to coat one metal with another, like making a spoon shiny with a layer of silver.
• Metal extraction – to separate pure metal from its ore.

Ray Effect

When a very high voltage and high-frequency electric current passes through a vacuum tube (a special glass tube with no air inside), something amazing happens. A special kind of invisible rays, called X-rays, are created.

This is called the Ray Effect of electric current.
These X-rays are very useful. Doctors use them to see the bones inside our body. It’s like taking a shadow picture of our bones without cutting the skin. This helps in finding broken bones or other problems inside the body.

Gas Ionization Effect

When electric current flows through certain gases like mercury vapour or sodium vapour inside a discharge tube, the gas starts to glow. This happens because the gas particles break apart and get charged. This is called ionisation.

This is known as the Gas Ionisation Effect of electric current.
It is used in bright lights, like street lamps or big hall lights, where strong and clear light is needed.

Some Important Terms Related to Electricity

Electricity may seem a bit tricky at first, but once you understand the basic terms, everything becomes much easier. Let’s explore some key concepts in a simple way:

1. Electromotive Force (EMF)

Imagine you’re trying to push water through a pipe. You need a pump to make the water flow. In the same way, to make electric current flow through a wire, we need a kind of ‘push’.
This push is called electromotive force, or EMF.
It comes from sources like cells, batteries, or generators.
The symbol for EMF is E, and we measure it in volts (V).

2. Potential

Think of potential as the height of water in a tank. The higher the water, the more it wants to flow down. Similarly, electric potential shows how ready electric charges are to move.
We can say that potential is the “electrical height” of a point.

• If current flows from an object towards the ground, the object has positive potential.
• If current flows from the ground into the object, it has negative potential.

So, potential tells us which way the current will naturally want to go.

3. Potential Difference (PD)

Now, if you want electricity to flow through a wire, there needs to be a difference in potential between the two ends.
This difference is what makes the current move, just like water flows from a higher point to a lower one.

This is called Potential Difference, and it’s shown with the symbol V.
Its unit is also volt (V).

4. Terminal Voltage

The terminal voltage is simply the voltage you can actually use at the end points (or terminals) of a battery or any power supply.
It is the “real” voltage available for devices to work.
Its symbol is V₁ and the unit is volt.

5. Voltage Drop (or IR Drop)

When current flows through a wire or any device, some of the energy gets used up in pushing the current through.
This small loss of voltage is called a voltage drop or IR drop (I = current, R = resistance).
It’s like how water loses pressure when it flows through a narrow pipe.

6. Electrical Work

Whenever electric current flows, it does some work — like lighting a bulb or running a fan.
This electrical work is the effort needed to move electric charges from one place to another using EMF.
We measure electrical work in joules.

What is Electrical Work?

Imagine you are pushing a toy car. To make it move, you have to use your strength. In the same way, to move tiny particles called electrons inside a wire, we need something to push them. That “push” comes from something called emf (which stands for electromotive force — like a battery or power source).

When electrons are pushed and start moving through a wire, they do work. This work is known as electrical work.

📘 Simple Definition:

Electrical work is the work done when electrons are moved from one place to another in a circuit using emf (like from a battery or power supply).

It is measured in joules (J) — just like we measure distance in meters and weight in kilograms.

⚙️ How Do We Calculate It?

We can find out how much electrical work is done by using this formula:

Work = emf × current × time
W = E × I × t

Where:

• W is the work done (in joules)
• E is the emf or voltage (in volts)
• I is the current (in amperes)
• t is the time (in seconds)

🎯 A Simple Example:

If a battery of 5 volts pushes a current of 2 amps through a wire for 10 seconds, then:

Work = 5 × 2 × 10 = 100 joules

That means the battery did 100 joules of work to move the electrons!

📏 Also Remember:

Work can also be written in another way:

Work = Force × Distance
And
1 joule = 1 newton × 1 meter

So, electrical work is just a special kind of work where the force is from electricity instead of your hands.

🧠 In Short:

• Electrical work means moving electrons using energy.
• It’s like pushing something, but instead of your hand, we use electricity.
• It’s measured in joules.
• The more current and time, the more work is done.

What is Electrical Power?

Electrical power is simply the rate at which work is done by an electrical device. In easy words, it tells us how fast electricity is being used to do something—like lighting a bulb, running a fan, or charging a phone.

🕒 The Basic Idea:

Imagine you’re filling a bucket with water. If you fill it fast, you’re using more power. If you fill it slowly, you’re using less power.
The faster the work is done, the more power is used.

⚡ Formula of Electrical Power:

The formula is very simple:

Power (P) = Work done / Time taken

Or in electrical terms:

P = V × I

Where:

• P is power in watts
• V is voltage in volts
• I is current in amperes

🔁 Other Forms of the Power Formula:

Using Ohm’s Law, we can also write power like this:

• P = I² × R (when we know current and resistance)
• P = V² / R (when we know voltage and resistance)

All of them mean the same thing—they just use different ways to calculate power depending on what values you have.

🧠 Remember These Units:

• 1 Watt = 1 Joule per second
  (This means if a device uses 1 joule of energy in 1 second, it is using 1 watt of power.)

🐎 What is Horsepower?

Sometimes power is also measured in horsepower, especially in engines and motors.

Here’s how it compares:

• 1 Horsepower (HP) = 746 watts
  (That’s a lot of power! About the amount needed to lift a big bucket of water up a tall building quickly.)

Other horsepower units:

• 1 HP = 735.5 Newton-metres/second
• 1 HP = 550 foot-pounds/second
• British HP = 33,000 foot-pounds/minute
• Metric HP = 4500 metre-kilograms/minute

All these are just different ways people use to measure power in real life.

🧮 Tiny Units:

Sometimes, we talk about very small units too:

• 1 Joule = 10⁷ ergs
  (Erg is just a smaller way to count tiny bits of work.)

✅ In Short:

• Electrical power shows how fast electricity is doing work.
• It’s measured in watts or sometimes horsepower.
• The faster the work is done, the more power is being used.

💡 Real-Life Example:

When you switch on a 100-watt bulb, it means it is using 100 joules of energy every second to give light. The higher the wattage, the more electricity it consumes—and the brighter (or stronger) it usually is.

FAQ
